TP-Link Omada AC1200 Wireless MU-MIMO Wall-Plate Access Point

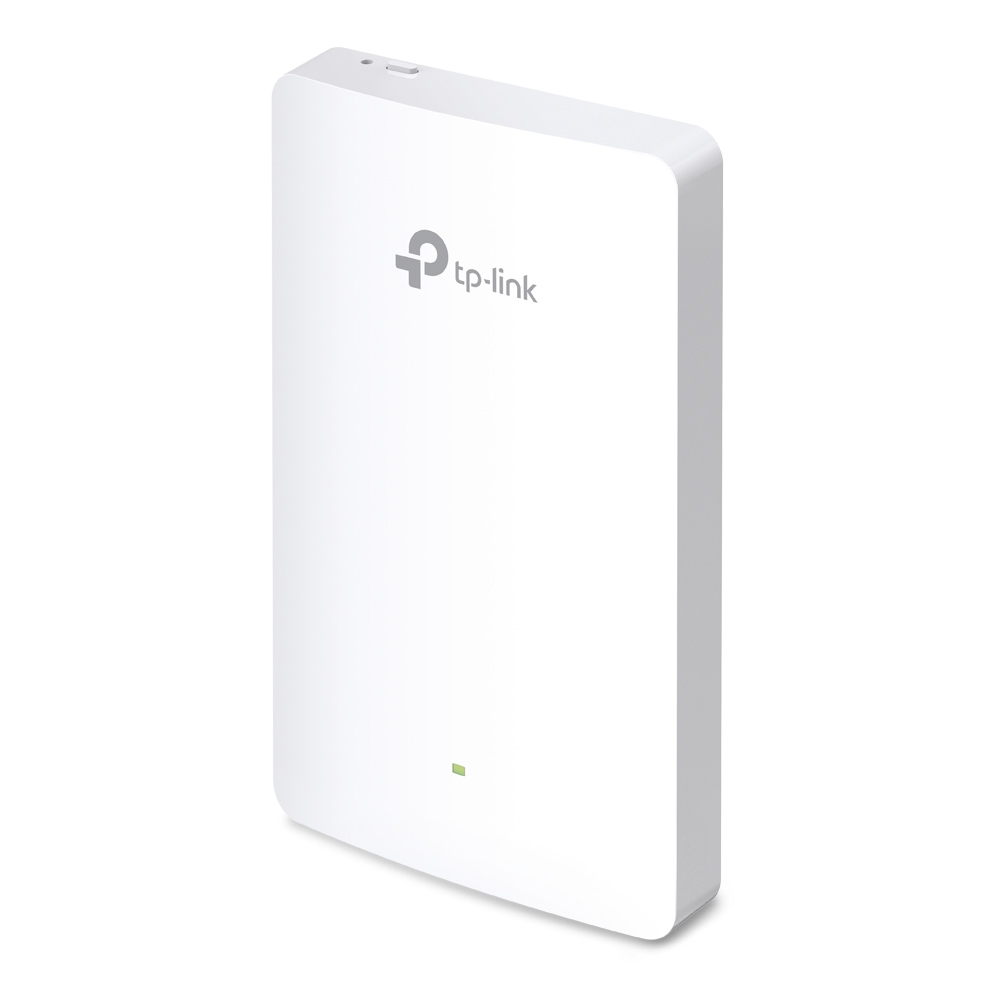

TP-Link Omada AC1200 Wireless MU-MIMO Wall-Plate Access Point

Model EAP225-WallPart no. EAP225-Wall V1EAN 6935364099770

50 specifications
  • Speed867 Mbit/s
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports3
  • PlacementWall
  • Antenna typeInternal
See all specifications

Overview

Speed
867 Mbit/s
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
3
Placement
Wall
Antenna type
Internal
Brand
TP-Link
Model
EAP225-Wall
Part number
EAP225-Wall V1
EAN / UPC
6935364099770, 6935364099794
Also known as
TP-Link Omada AC1200 Wireless MU-MIMO Wall-Plate Access Point

Specifications

50 specifications in 13 groups

Features

2.4 GHzYes
5 GHzYes
6 GHzNo
Maximum data transfer rate867 Mbit/s
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at
Automatic channel selectionYes
MIMOYes
MIMO typeMulti User MIMO
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Rate limitingYes
Wireless isolationYes
Quality of Service (QoS) supportYes

Security

Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filteringYes

Management features

Web-based managementYes
SyslogYes

Ports & interfaces

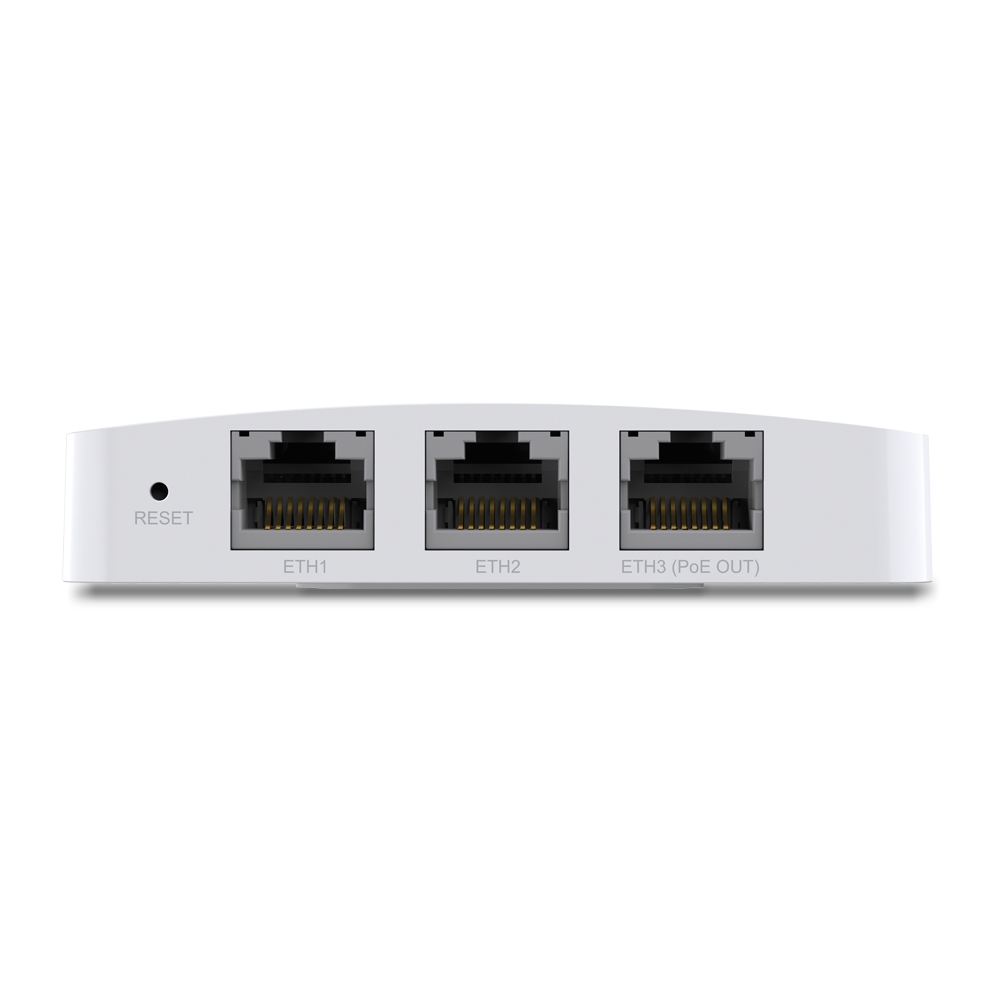

Ethernet LAN (RJ-45) ports3
USB 2.0 ports quantity0
WAN connectionEthernet (RJ-45)

Power

Power over Ethernet (PoE)Yes
Power consumption (typical)9 W
Power consumption (max)25.5 W

Design

PlacementWall
Product colourWhite
Reset buttonYes
LED indicatorsYes

Antenna

Antenna typeInternal
Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)4 dBi

Certificates

CertificationFCC, RoHS

Weight & dimensions

Width143 mm
Depth86 mm
Height19.7 mm

Packaging data

Package width184 mm
Package depth117 mm
Package height33 mm
Package weight300 g

Packaging content

Quantity per pack1 pc(s)
Mounting kitYes
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)0 - 40%
Operating temperature (T-T)10 - 90 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%

Logistics data

Harmonized System (HS) code85176990
