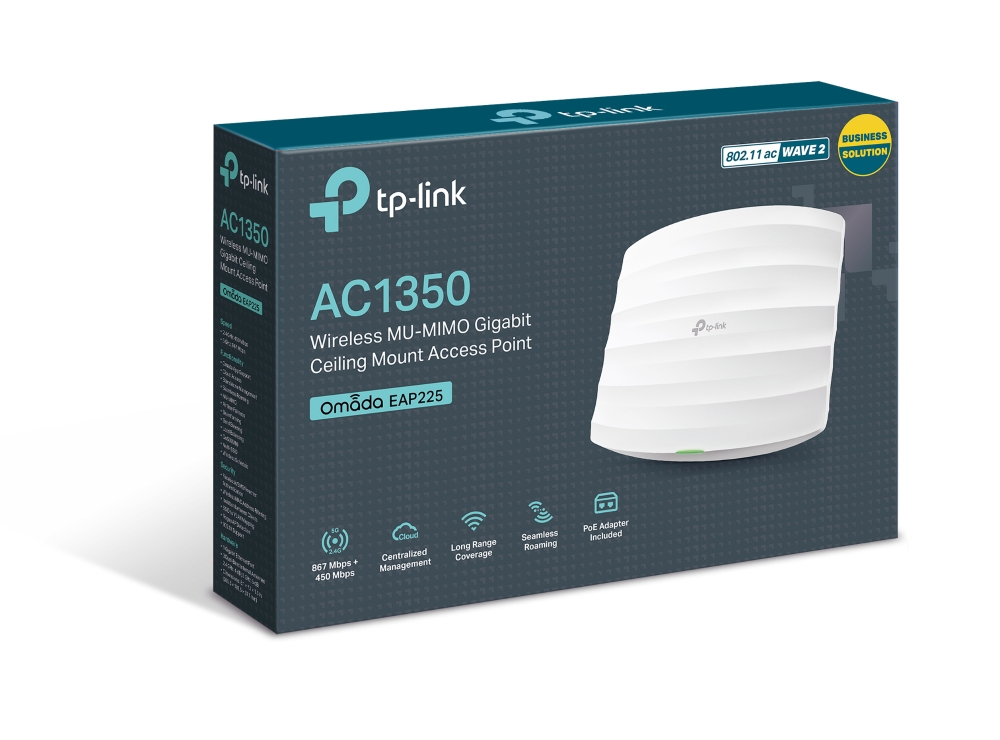

EAP225_OC200 wireless access point 1317 Mbit/s White Power over Ethernet (PoE)
Model EAP225_OC200
43 specifications
- Speed1317 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Security algorithms802.1x RADIUS, SSH
- Management protocolsSNMP
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 1317 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- 802.1x RADIUS, SSH
- Management protocols
- SNMP
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- EAP225_OC200
- Part number
- EAP225_OC200
- Also known as
- TP-Link EAP225_OC200 wireless access point 1317 Mbit/s White Power over Ethernet (PoE)
Specifications
43 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1317 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi roaming | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, SSH |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 12.6 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling |
| Product colour | White |
| Reset button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 5 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 206 mm |
| Depth | 182 mm |
| Height | 37 mm |

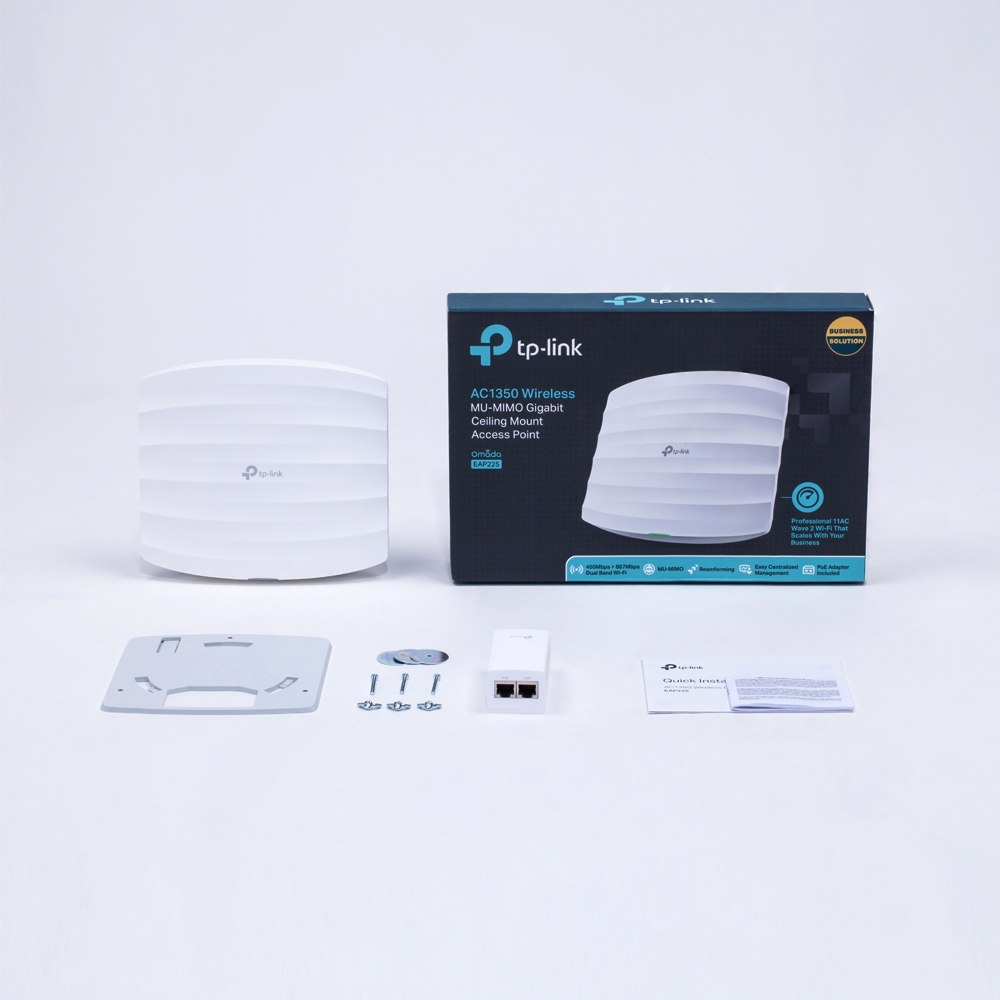

Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| PoE adapter included | Yes |
| Cables included | AC |
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
