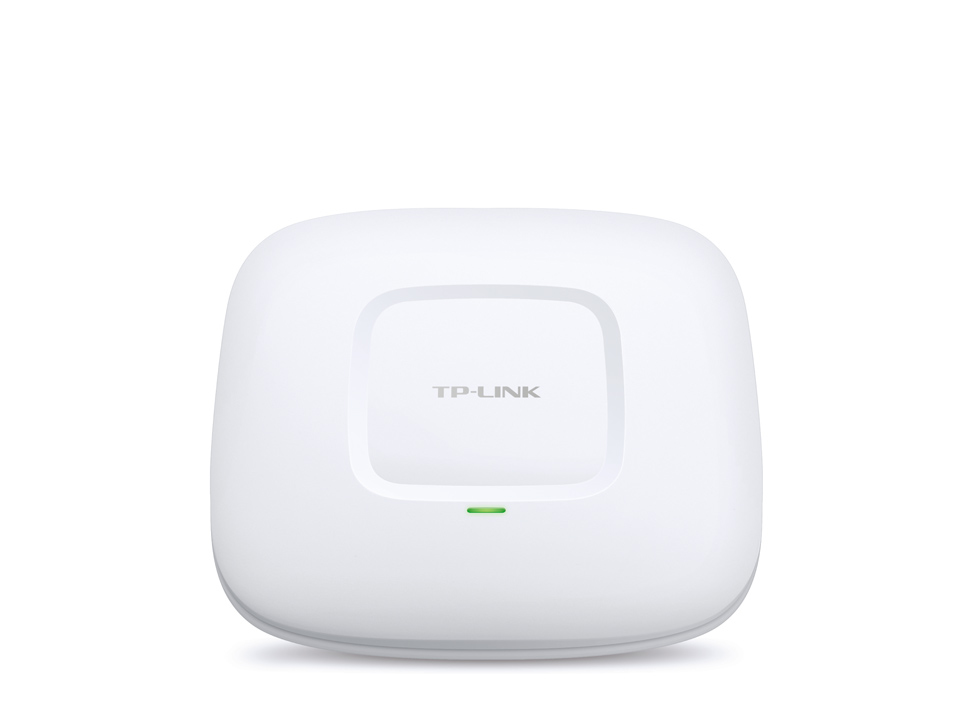

EAP220 wireless access point 600 Mbit/s White Power over Ethernet (PoE)
Model EAP220EAN 845973071851
32 specifications
- Speed600 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Management protocolsHTTP, HTTPS, Telnet, SNMP
- Ethernet LAN (RJ-45) ports2
- Antenna direction typeOmni-directional
Overview
- Speed
- 600 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Management protocols
- HTTP, HTTPS, Telnet, SNMP
- Ethernet LAN (RJ-45) ports
- 2
- Antenna direction type
- Omni-directional
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- EAP220
- Part number
- EAP220
- EAN / UPC
- 845973071851, 6935364071851, 6935364071868
- Also known as
- TP-Link EAP220 wireless access point 600 Mbit/s White Power over Ethernet (PoE)
Specifications
32 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 600 Mbit/s |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTP, HTTPS, Telnet, SNMP |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 9.6 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 180 mm |
| Height | 47 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
