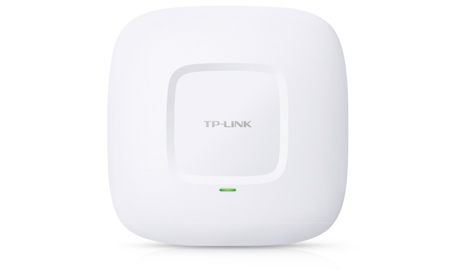

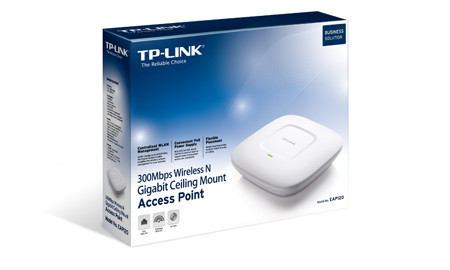

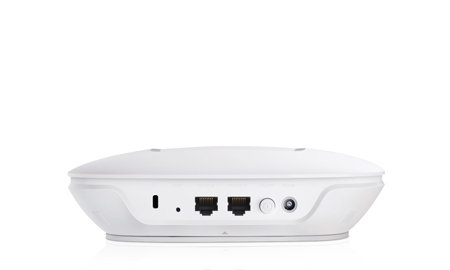

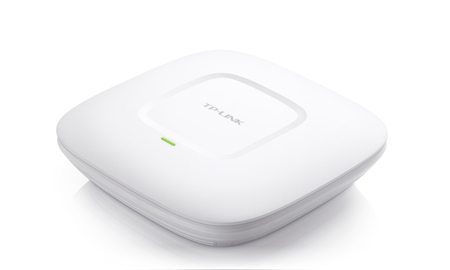

TP-Link EAP120 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

TP-Link EAP120 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Model EAP120Part no. 8XEAP120+1XTL-SG1008PEEAN 3578223071208

31 specifications
  • Speed300 Mbit/s
  • ColourWhite
  • 2.4 GHzYes
  • Supported network protocolsTelnet
  • Ethernet LAN (RJ-45) ports1
  • Antenna featuresIntegrated antenna
See all specifications

Overview

Speed
300 Mbit/s
Colour
White
2.4 GHz
Yes
Supported network protocols
Telnet
Ethernet LAN (RJ-45) ports
1
Antenna features
Integrated antenna
Brand
TP-Link
Model
EAP120
Part numbers
8XEAP120+1XTL-SG1008PE, 16XEAP120+2XTL-SG100, EAP120 KIT, EAP120, 16XEAP120+2XTL-SG1008PE, 24XEAP120+1XTL-SG3424P
EAN / UPC
3578223071208, 6935364071837, 6935364071844, 845973071837
Also known as
TP-Link EAP120 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Specifications

31 specifications in 11 groups

Features

2.4 GHzYes
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 2.4835 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Transmitting power20 dBmW
Receiver sensitivity300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER

Security

Security algorithmsWEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Protocols

Supported network protocolsTelnet
Management protocolsSNMP v1,v2c

Management features

Web-based managementYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Power

Power over Ethernet (PoE)Yes
Power consumption (typical)4.4 W

Design

Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington
Reset buttonYes
InternalNo

Antenna

Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)4 dBi

Certificates

CertificationCE, FCC, RoHS

Weight & dimensions

Width180 mm
Depth180 mm
Height47.5 mm

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
