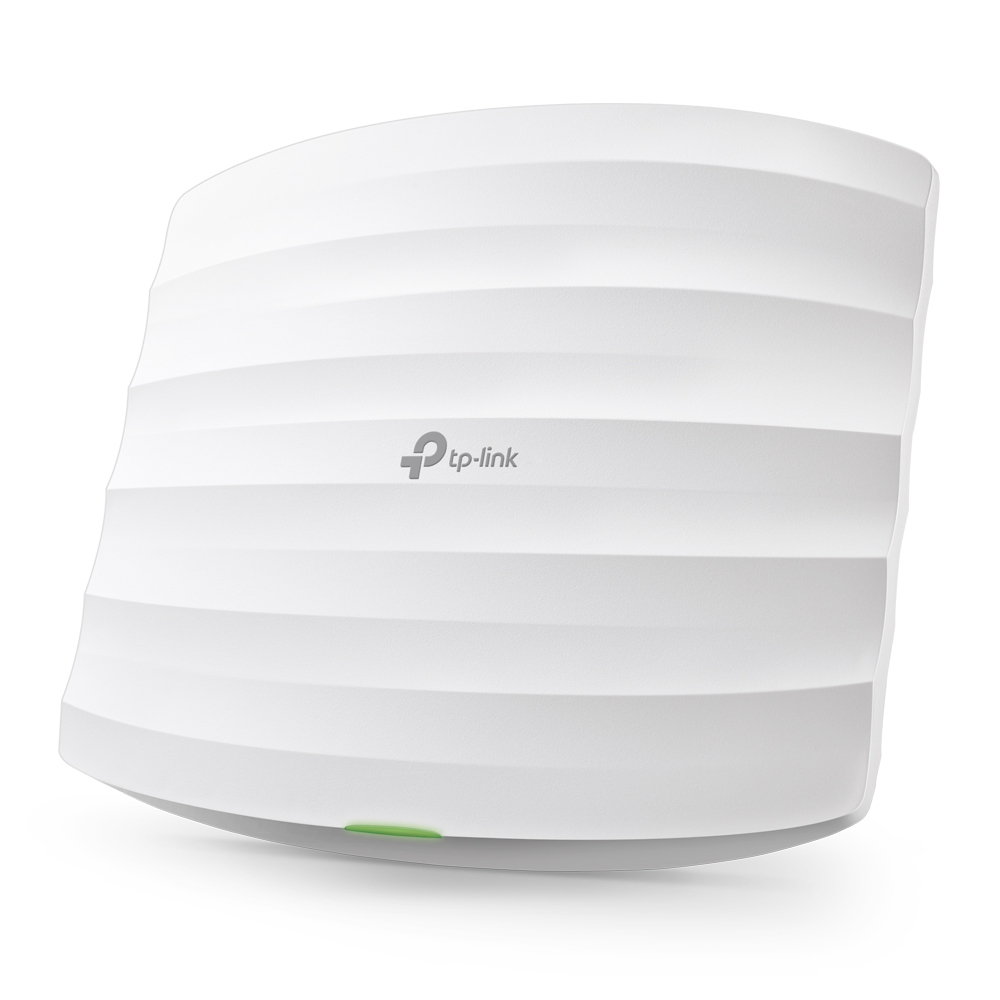

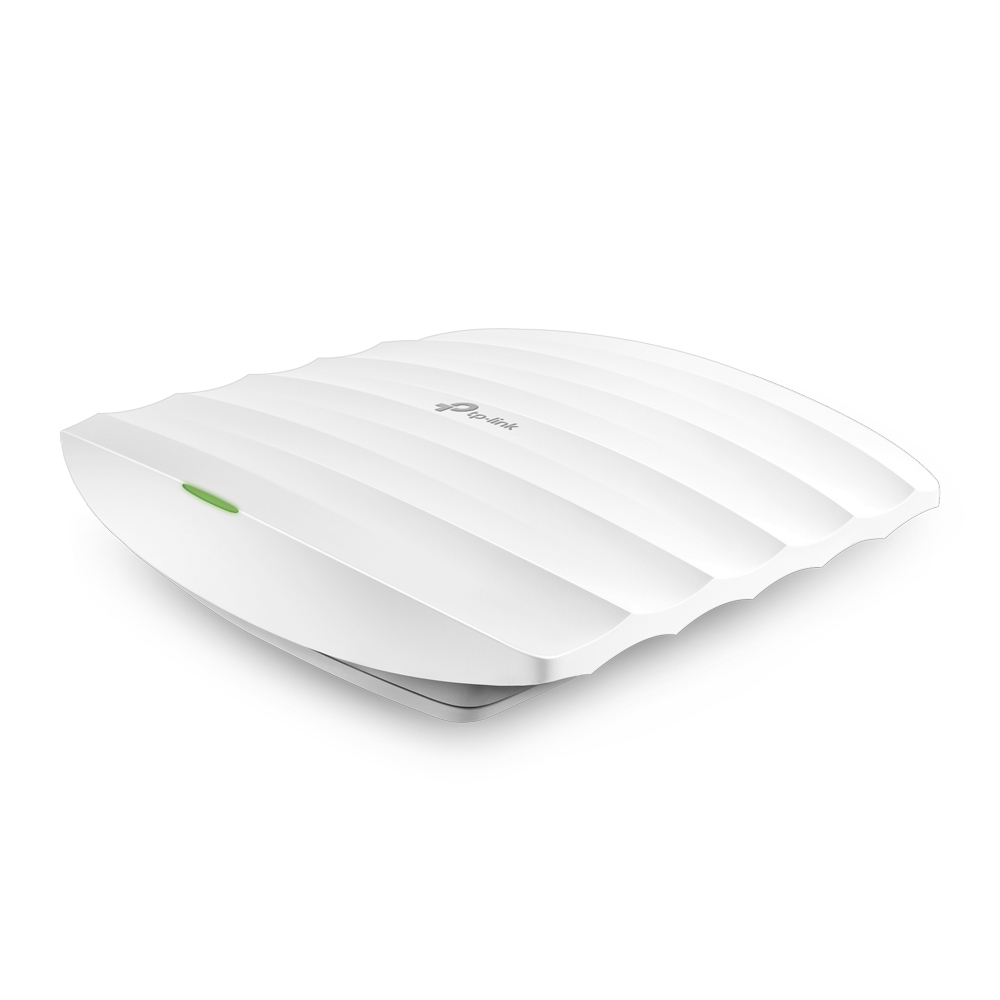

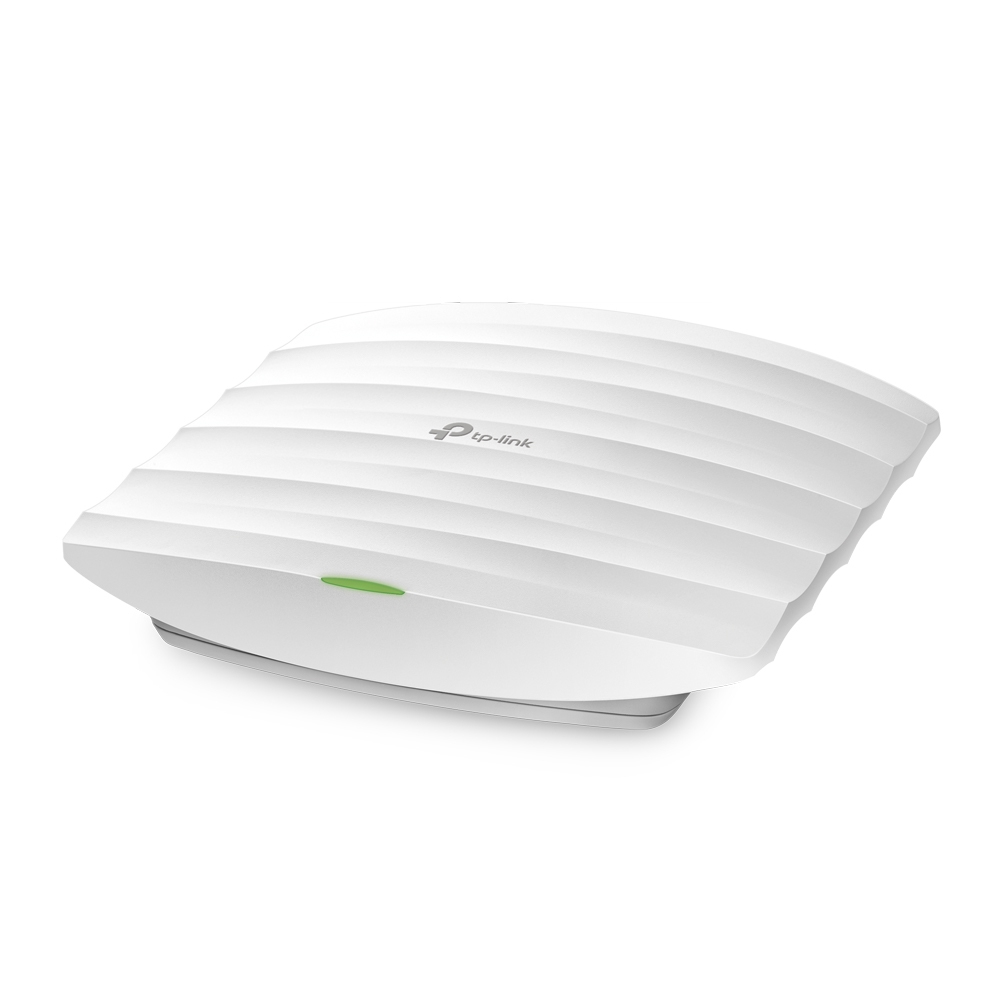

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point

Omada 300Mbps Wireless N Ceiling Mount Access Point

Model EAP115EAN 5704174250999

67 specifications

Speed300 Mbit/s
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports1
PlacementCeiling, Wall
Antenna typeInternal

See all specifications

Overview

Speed: 300 Mbit/s
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1
Placement: Ceiling, Wall
Antenna type: Internal

Brand: TP-Link
Category: Wireless Access Point
Model: EAP115
Part numbers: EAP115, EAP115 V4
EAN / UPC: 5704174250999, 845973092863, 845973096939, 1210002618472 +2 more
Also known as: TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point

Specifications

67 specifications in 15 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	No
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100Base-T(X)
Automatic channel selection	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	VLAN mapping
Rate limiting	Yes
Wireless isolation	Yes
Quality of Service (QoS) support	Yes
Transmitting power (CE)	19 dBm
Transmitting power (FCC)	21 dBm
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
System status alarm	Yes
Access Control List (ACL)	Yes

Management features

Specification	Value
Web-based management	Yes
Syslog	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45), Wi-Fi

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Output voltage	12 V
Output current	1 A
Power consumption (typical)	5 W

Design

Specification	Value
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
On/off switch	Yes
Reset button	Yes
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3 dBi

Performance

Specification	Value
Minimum system requirements	Microsoft Windows 10/8/7/Vista/XP

Certificates

Specification	Value
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS
Certification	CE, FCC, RoHS

Weight & dimensions

Specification	Value
Width	180 mm
Depth	180 mm
Height	47.5 mm

Packaging data

Specification	Value
Package width	246 mm
Package depth	268 mm
Package height	69 mm
Package weight	600 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
PoE adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Sustainability

Specification	Value
Sustainability compliance	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
