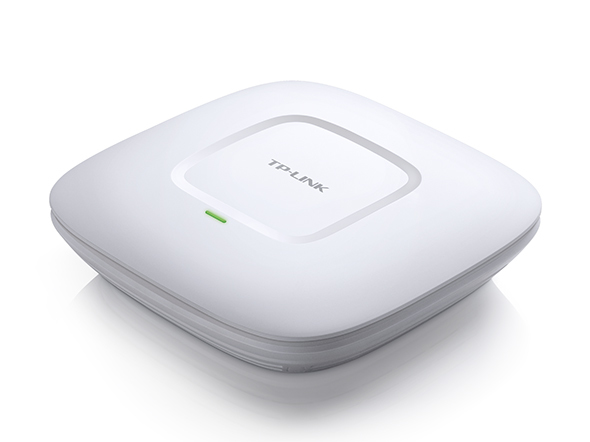

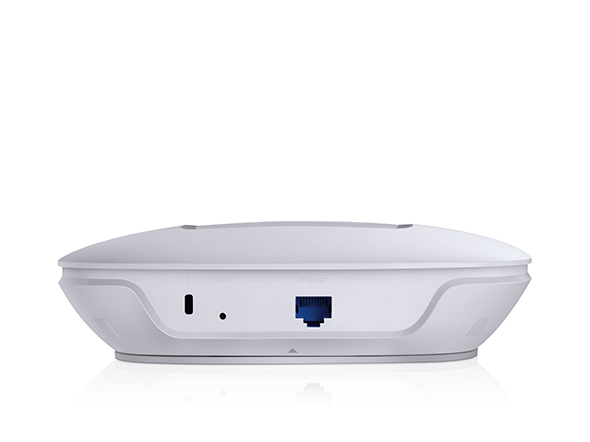

TP-Link EAP110 300 Mbit/s White Power over Ethernet (PoE)

TP-Link EAP110 300 Mbit/s White Power over Ethernet (PoE)

Model EAP110EAN 1210002618434

36 specifications

Speed300 Mbit/s
ColourWhite
2.4 GHzYes
Management protocolsSNMP, Telnet, HTTP, HTTPS
Ethernet LAN (RJ-45) ports1
Antenna direction typeOmni-directional

See all specifications

Overview

Speed: 300 Mbit/s
Colour: White
2.4 GHz: Yes
Management protocols: SNMP, Telnet, HTTP, HTTPS
Ethernet LAN (RJ-45) ports: 1
Antenna direction type: Omni-directional

Brand: TP-Link
Category: Wireless Access Point
Model: EAP110
Part numbers: EAP110, EAP110 KIT, EAP110 V4
EAN / UPC: 1210002618434, 644535530375, 723856593501, 758399117037 +7 more
Also known as: TP-Link EAP110 300 Mbit/s White Power over Ethernet (PoE)

Specifications

36 specifications in 11 groups

Features

Specification	Value
2.4 GHz	Yes
Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
VLAN support	Yes
Quality of Service (QoS) support	Yes
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Protocols

Specification	Value
Management protocols	SNMP, Telnet, HTTP, HTTPS

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Input current	1 A
Power consumption (typical)	7.7 W

Design

Specification	Value
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
LED indicators	Yes
Internal	No

Antenna

Specification	Value
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3 dBi

Performance

Specification	Value
Compatible operating systems	Microsoft Windows 8, 7, Vista, XP

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Weight & dimensions

Specification	Value
Width	180 mm
Depth	180 mm
Height	47.5 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
