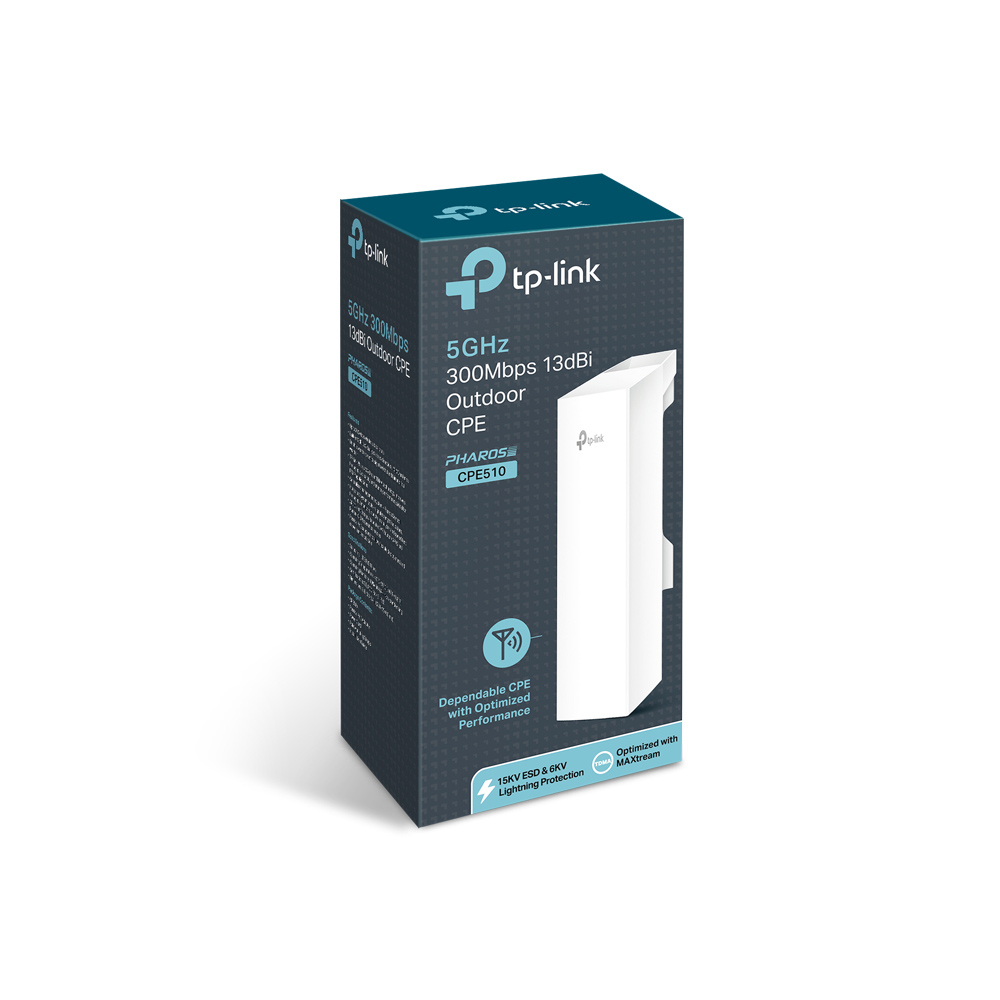

TP-Link CPE510(UK) 300 Mbit/s White Power over Ethernet (PoE)

TP-Link CPE510(UK) 300 Mbit/s White Power over Ethernet (PoE)

Model CPE510(UK)Part no. CPE510 (UK)EAN 4056203028200

39 specifications
  • Memory64 MB
  • Speed300 Mbit/s
  • ColourWhite
  • MAC address filteringYes
  • Management protocolsTDMA
  • Management platformPharos Control
See all specifications

Overview

Memory
64 MB
Speed
300 Mbit/s
Colour
White
MAC address filtering
Yes
Management protocols
TDMA
Management platform
Pharos Control
Brand
TP-Link
Model
CPE510(UK)
Part number
CPE510 (UK)
EAN / UPC
4056203028200, 5054242205872, 5054484704515, 5054814468667
Also known as
TP-Link CPE510(UK) 300 Mbit/s White Power over Ethernet (PoE)

Specifications

39 specifications in 13 groups

Features

Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band5.15 - 5.85 GHz
Bandwidth5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11n
Maximum outdoor range15000 m
Receiver sensitivity802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm

Security

Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filteringYes

Protocols

Management protocolsTDMA

Management features

Management platformPharos Control

Ports & interfaces

Ethernet LAN (RJ-45) ports1
WAN connectionEthernet (RJ-45)

Power

Power over Ethernet (PoE)Yes
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Input current0.8 A
Power consumption (typical)13 W

Design

PlacementCeiling, Floor
Product colourWhite
Reset buttonYes
LED indicatorsYes

Antenna

Antenna typeInternal
Antenna featuresIntegrated antenna
Antennas quantity1
Antenna gain level (max)13 dBi

Performance

Built-in processorYes
Flash memory8 MB
Internal memory64 MB
Compatible operating systemsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Certificates

CertificationFCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS

Weight & dimensions

Width224 mm
Depth75 mm
Height60 mm

Packaging content

Cables includedAC

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-30 - 70 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 95%
