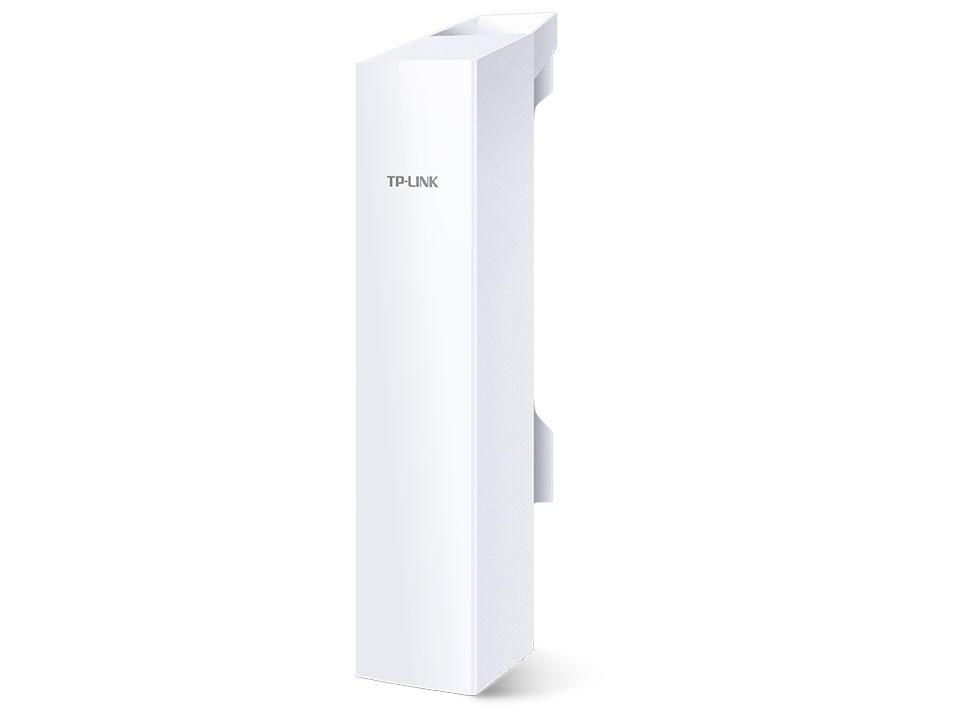

TP-Link CPE220 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

CPE220 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Model CPE220EAN 840460604840

58 specifications

Memory64 MB
Speed300 Mbit/s
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports1
Antenna typeInternal

See all specifications

Overview

Memory: 64 MB
Speed: 300 Mbit/s
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1
Antenna type: Internal

Brand: TP-Link
Category: Wireless Access Point
Model: CPE220
Part number: CPE220
EAN / UPC: 840460604840, 845973091583, 1210002611442, 6935364091583
Also known as: TP-Link CPE220 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Specifications

58 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	No
Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Frequency band	2.4 - 2.483 GHz
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channels quantity	5 channels
Channel bandwidth	40 MHz
Automatic channel selection	Yes
VLAN support	Yes
RTS/CTS threshold	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, AES, HTTPS, SNMP, SSH, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
IP address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast on/off
Number of SSID supported	1
IGMP snooping	Yes
Auto Wireless Distribution System (WDS)	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
DHCP client	Yes
Management protocols	TDMA

Management features

Specification	Value
Web-based management	Yes
Management platform	Pharos Control

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Internal RJ-45 ports quantity	1
USB 2.0 ports quantity	0
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Input current	0.8 A
Output voltage	24 V
Output current	1 A
Power consumption (max)	10.8 W

Design

Specification	Value
Product colour	White
International Protection (IP) code	IPX5
Reset button	Yes
LED indicators	Power
Internal	No

Antenna

Specification	Value
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	12 dBi

Performance

Specification	Value
Built-in processor	Yes
Flash memory	8 MB
Internal memory	64 MB

Certificates

Specification	Value
Certification	- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5

Weight & dimensions

Specification	Value
Width	110 mm
Depth	57 mm
Height	33.5 mm

Packaging content

Specification	Value
AC adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
