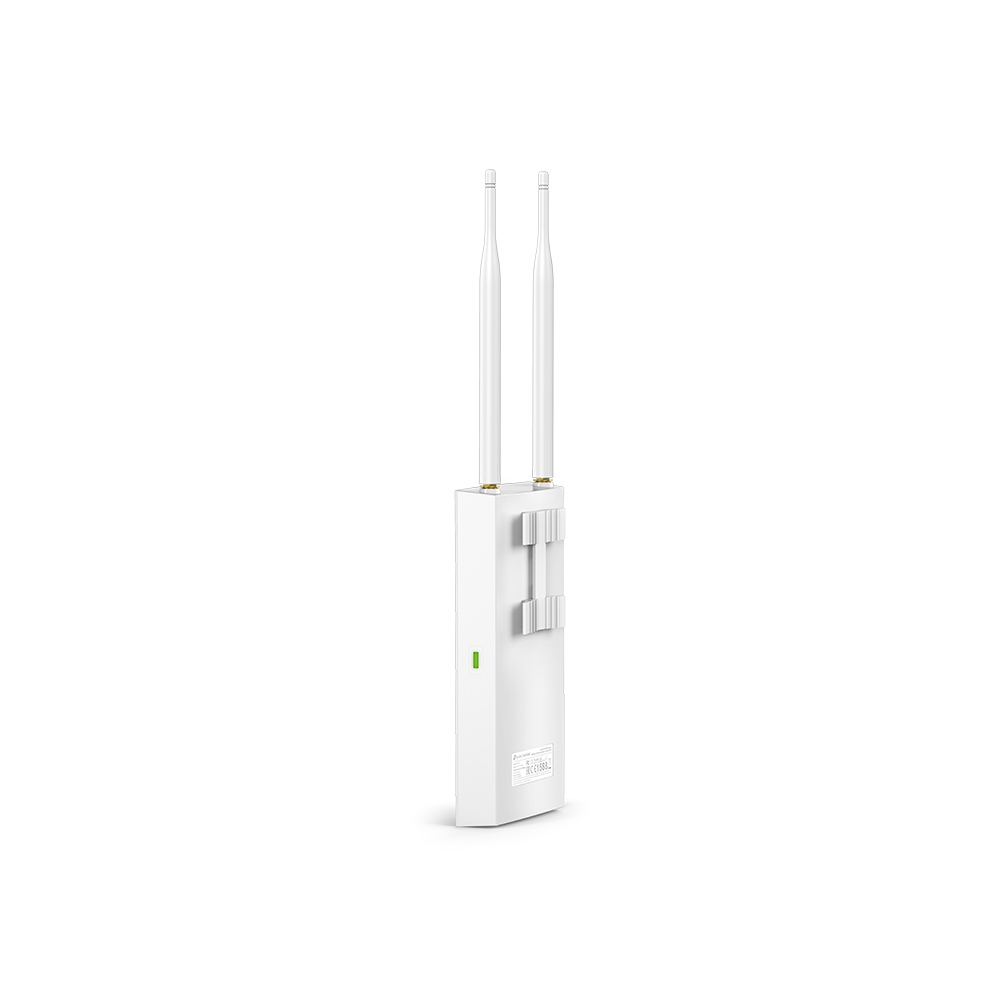

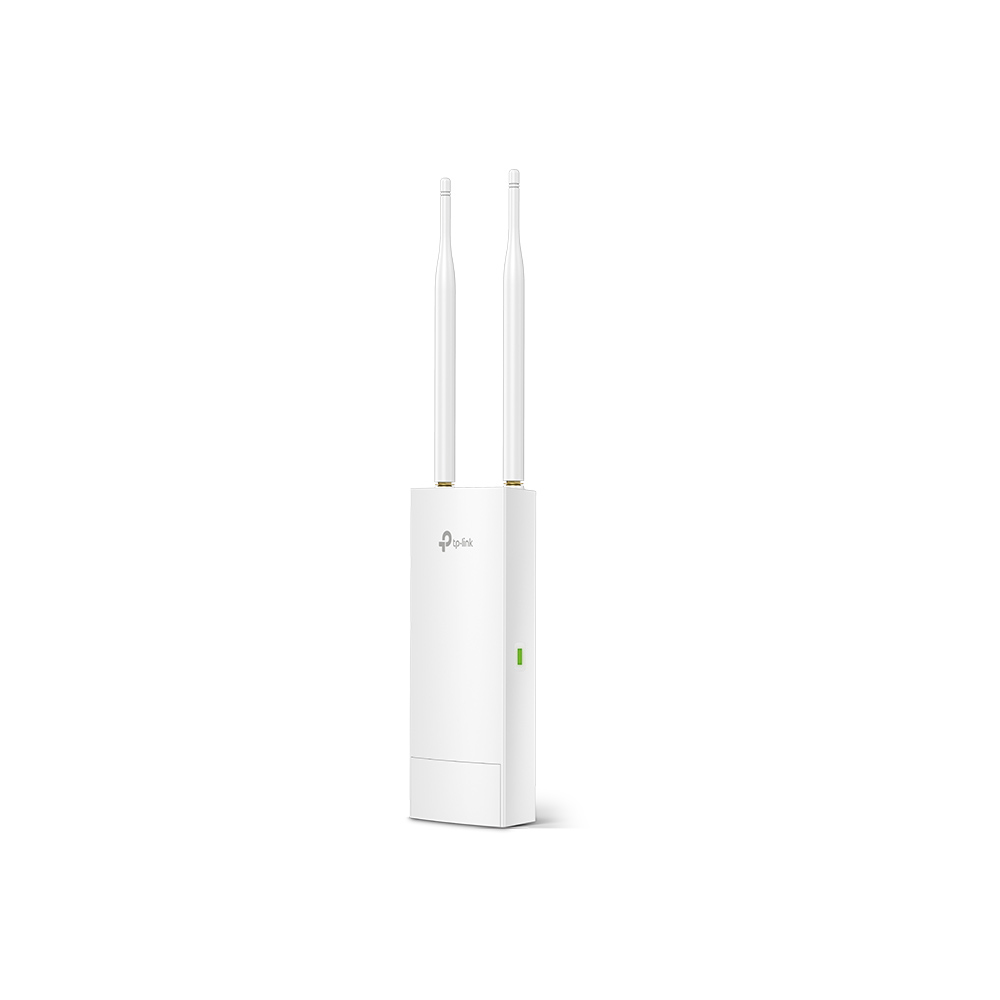

TP-Link 300Mbps Wireless N Outdoor Access Point

TP-Link 300Mbps Wireless N Outdoor Access Point

Model CAP300-OutdoorPart no. CAP300-Outdoor V1EAN 6935364080495

58 specifications
  • Speed300 Mbit/s
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
  • PlacementPole, Wall
  • Antenna typeExternal
See all specifications

Overview

Speed
300 Mbit/s
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1

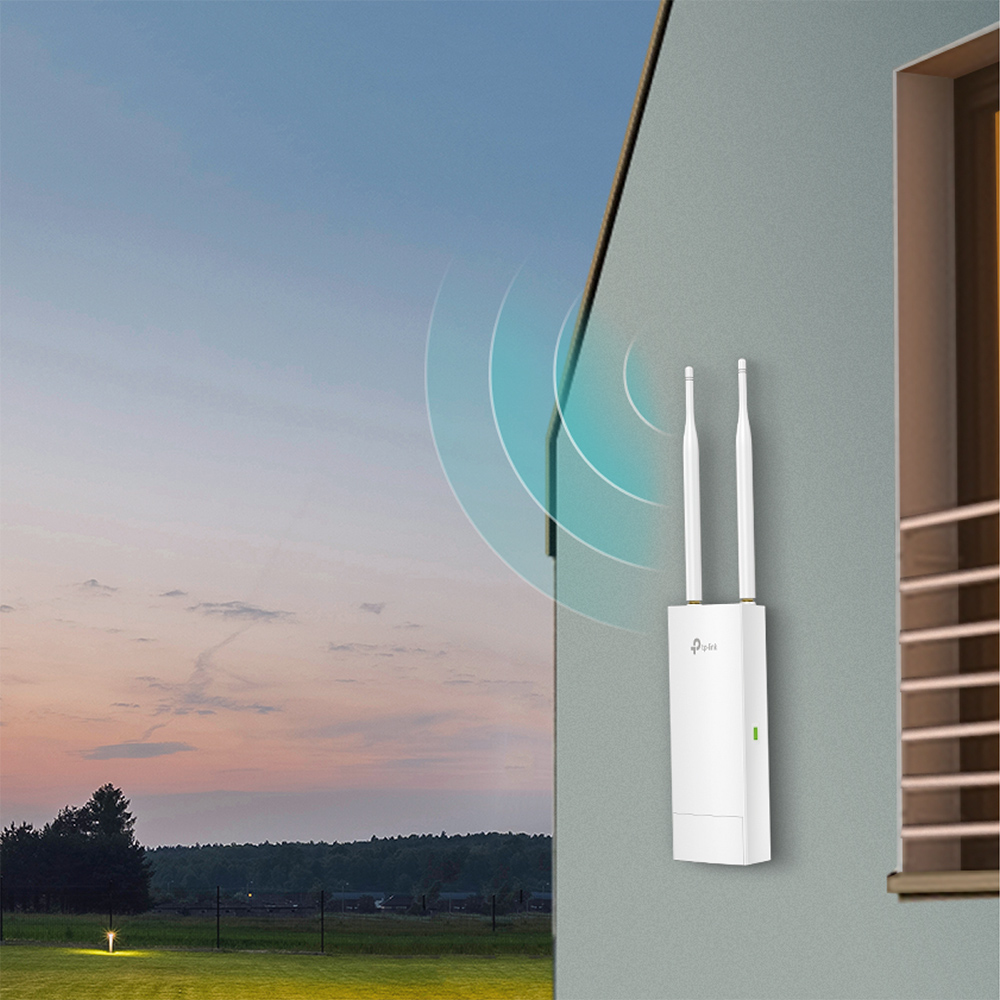

Placement
Pole, Wall
Antenna type
External
Brand
TP-Link
Model
CAP300-Outdoor
Part numbers
CAP300-Outdoor V1, CAP300-OUTDOOR
EAN / UPC
6935364080495, 6935364080501, 845973080495
Also known as
TP-Link 300Mbps Wireless N Outdoor Access Point

Specifications

58 specifications in 13 groups

Features

2.4 GHzYes
5 GHzNo
6 GHzNo
Maximum data transfer rate300 Mbit/s
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 GHz
Bandwidth2.4 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3af
Cabling technology10/100Base-T(X)
Automatic channel selectionYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Number of WLAN connections (max)1
VLAN supportYes
Quality of Service (QoS) supportYes
Transmitting power27 dBmW

Security

Security algorithmsWPA, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filteringYes
IP address filteringYes
Service Set Identifier (SSID) featuresSSID broadcast on/off
Number of SSID supported8
Auto Wireless Distribution System (WDS)Yes
Port-based Network Access Control (PNAC)Yes

Management features

Web-based managementYes
Firmware upgradeableYes

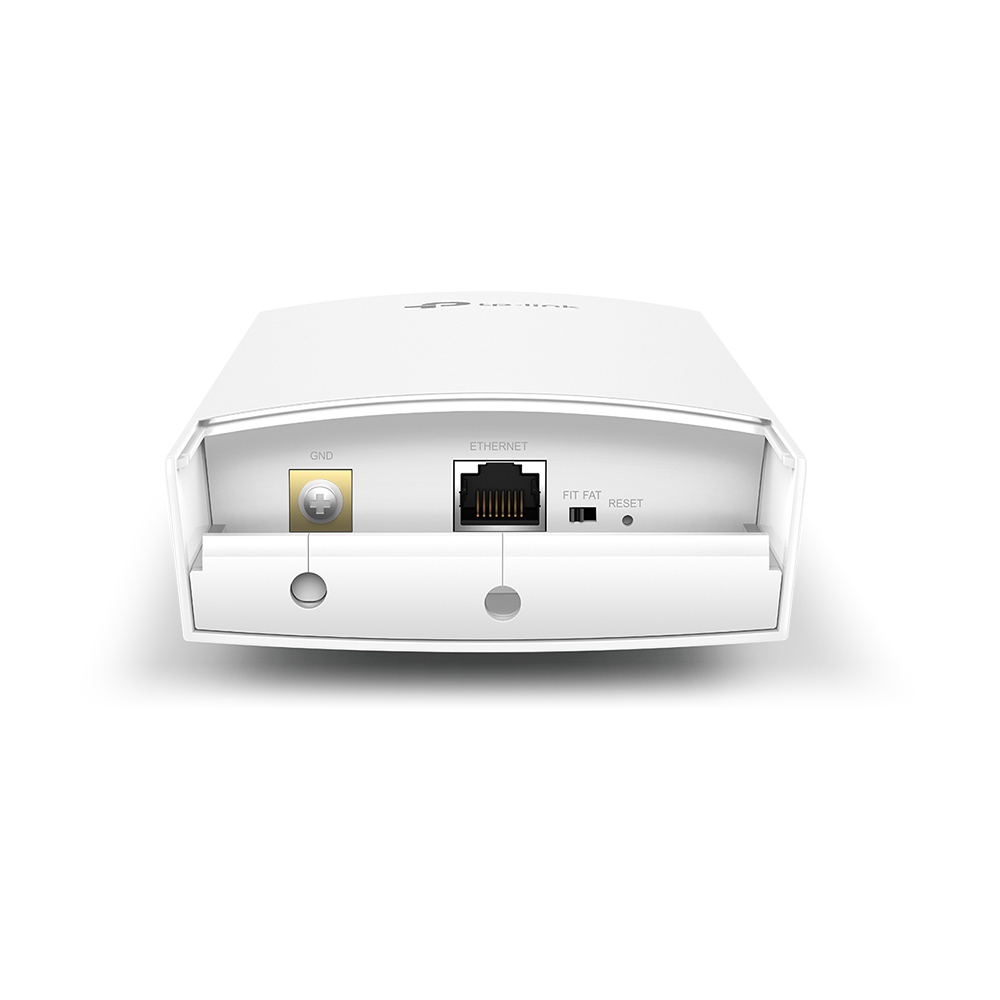

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
WAN connectionEthernet (RJ-45)

Power

Power over Ethernet (PoE)Yes
Power consumption (typical)4.42 W

Design

PlacementPole, Wall
Product colourWhite
On/off switchYes
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna typeExternal
Antenna direction typeOmni-directional
Antenna featuresDetachable antenna
Antennas quantity2
Antenna gain level (max)5 dBi
Number of connectors2

Performance

Compatible operating systemsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux

Certificates

CertificationCE, FCC, RoHS

Weight & dimensions

Width209 mm
Depth95 mm
Height42.6 mm

Packaging data

Package width278 mm
Package depth172 mm
Package height106 mm
Package weight840 g

Packaging content

Mounting kitYes
Antenna includedYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-30 - 65 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
