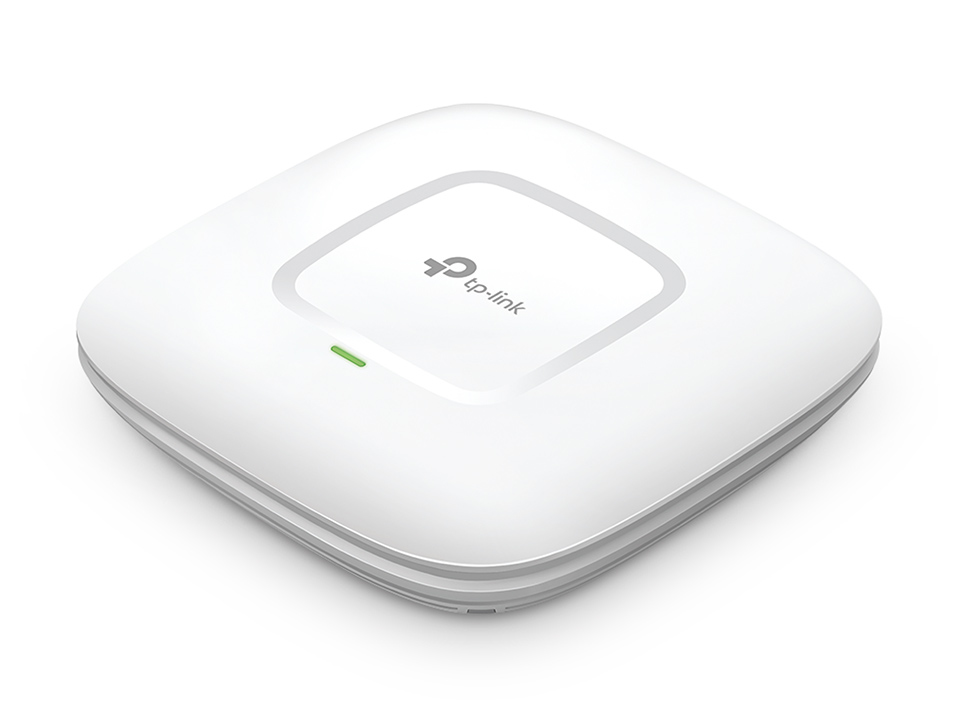

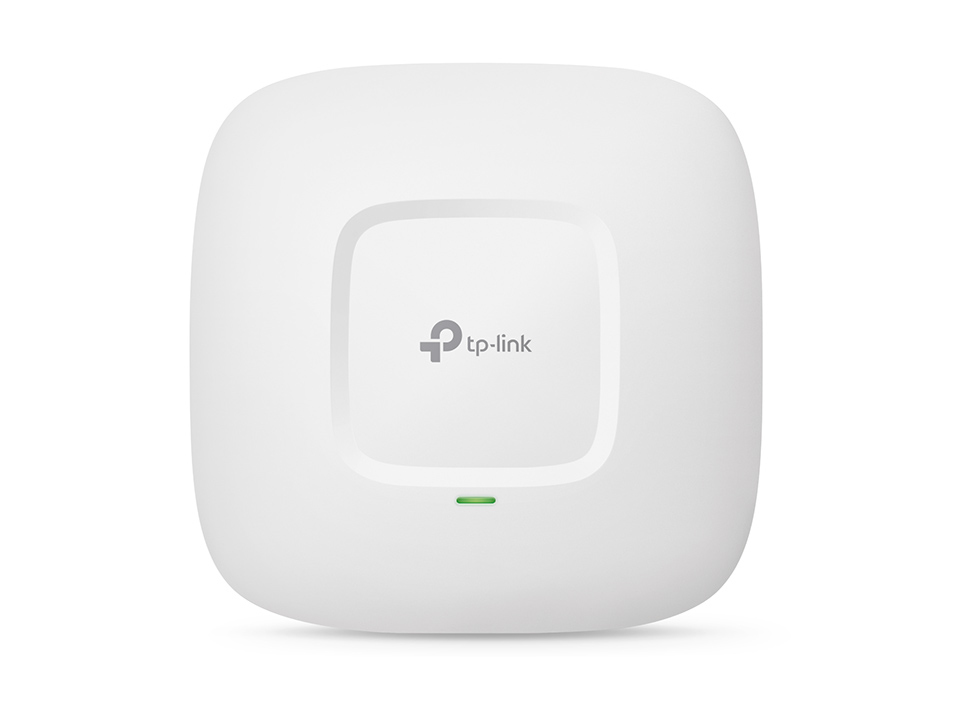

TP-Link AC1200 Wireless Dual Band Gigabit Ceiling Mount Access Point
Model CAP1200Part no. CAP1200 V1EAN 6935364081003
46 specifications
- Speed1200 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementCeiling, Wall
- Antenna typeInternal
Overview
- Speed
- 1200 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Ceiling, Wall
- Antenna type
- Internal
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- CAP1200
- Part numbers
- CAP1200 V1, CAP1200
- EAN / UPC
- 6935364081003, 6935364092726
- Also known as
- TP-Link AC1200 Wireless Dual Band Gigabit Ceiling Mount Access Point
Specifications
46 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11k, IEEE 802.11n, IEEE 802.3at |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Wireless isolation | Yes |
| Transmitting power | 23 dBmW |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSID, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

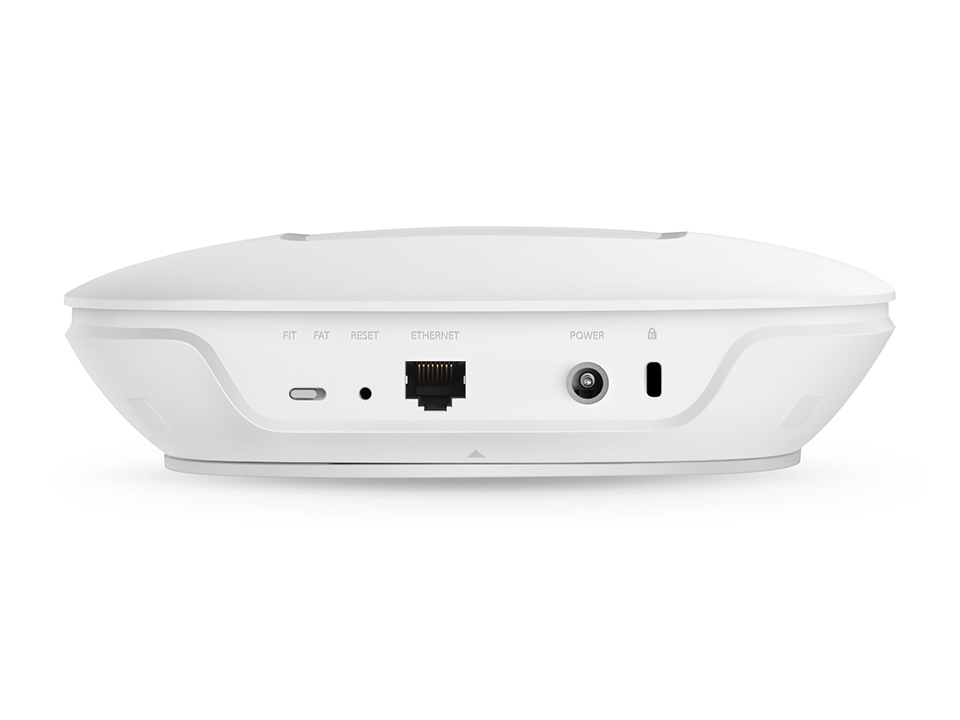

| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 10.6 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Reset button | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 5 dBi |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows 10/8/7/Vista/XP |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180.1 mm |
| Depth | 180.1 mm |
| Height | 47.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 315 mm |
| Package depth | 230 mm |
| Package height | 75 mm |
| Package weight | 1.03 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
