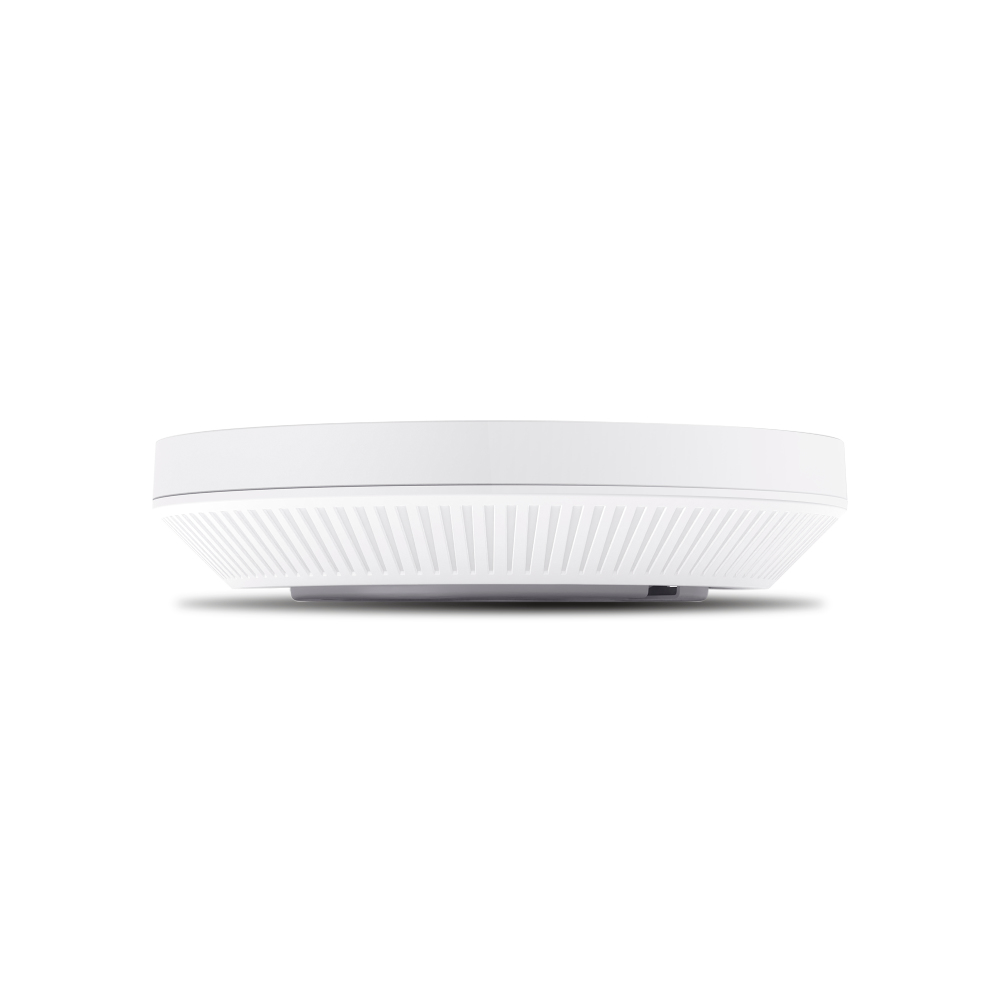

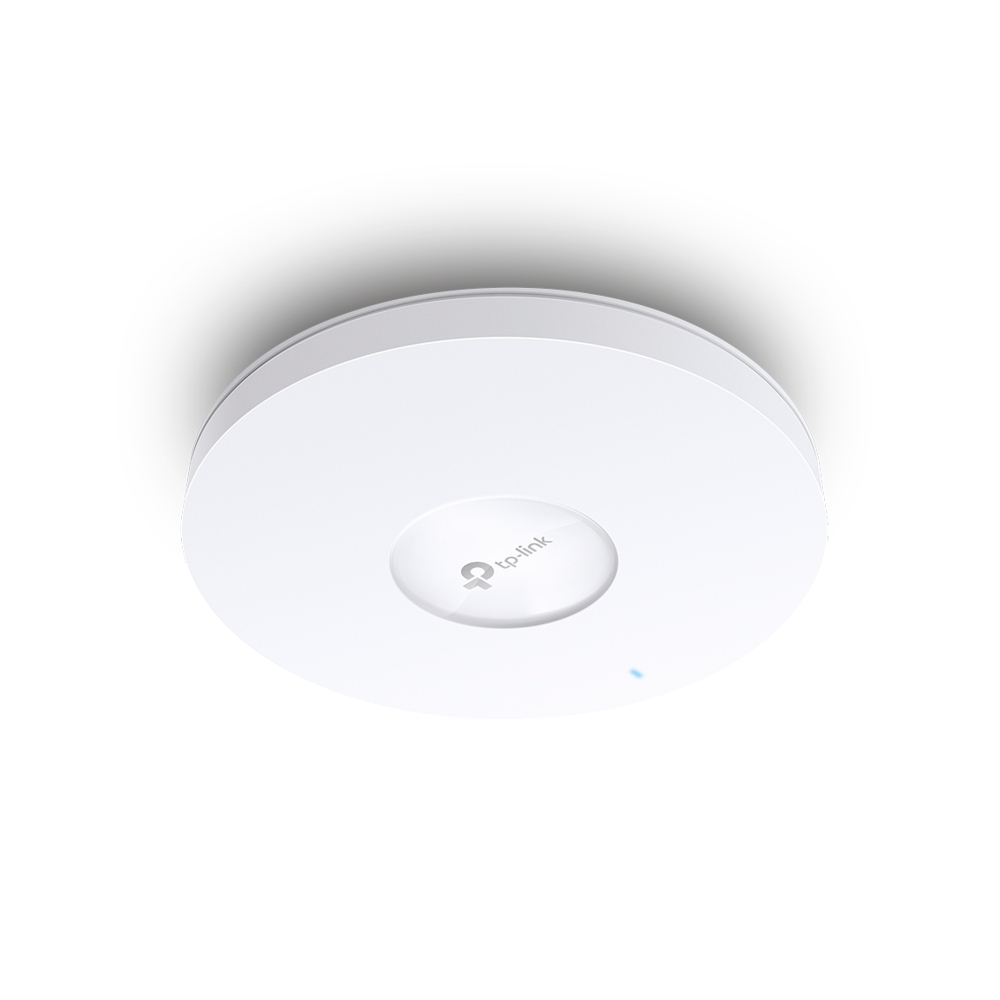

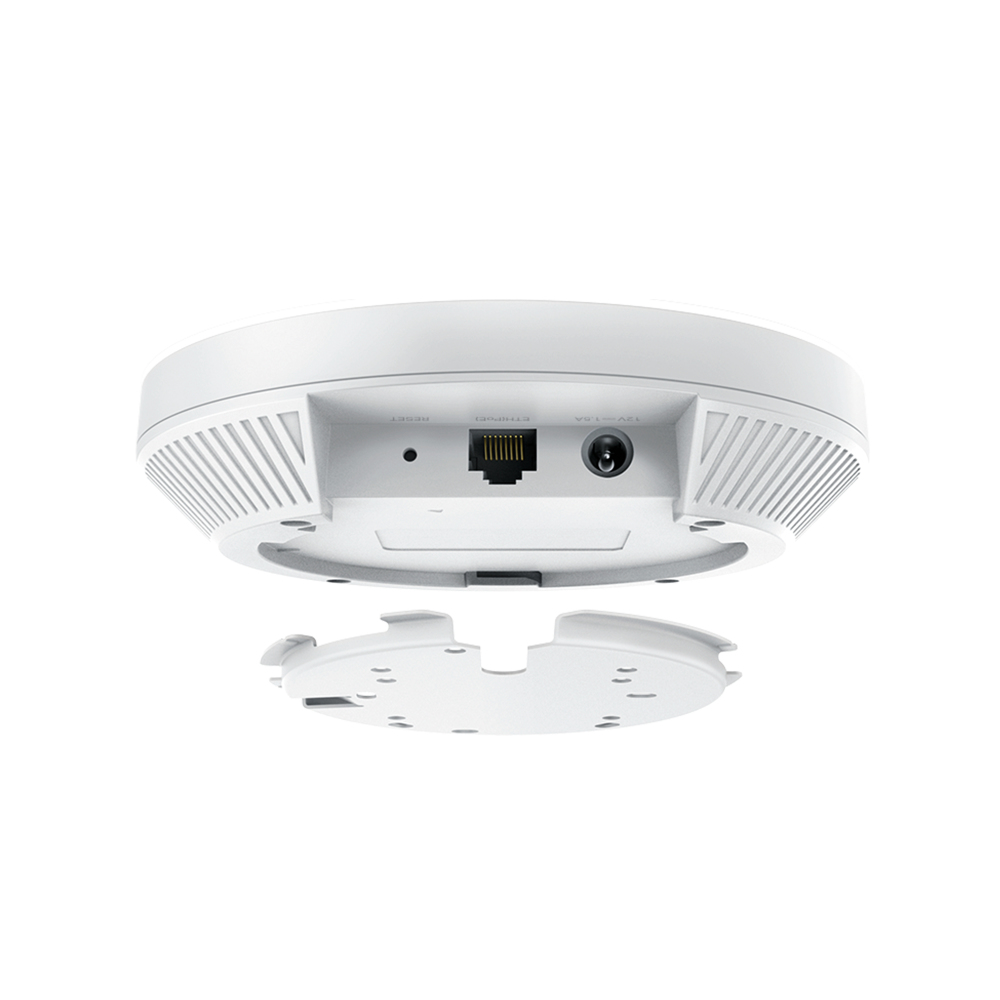

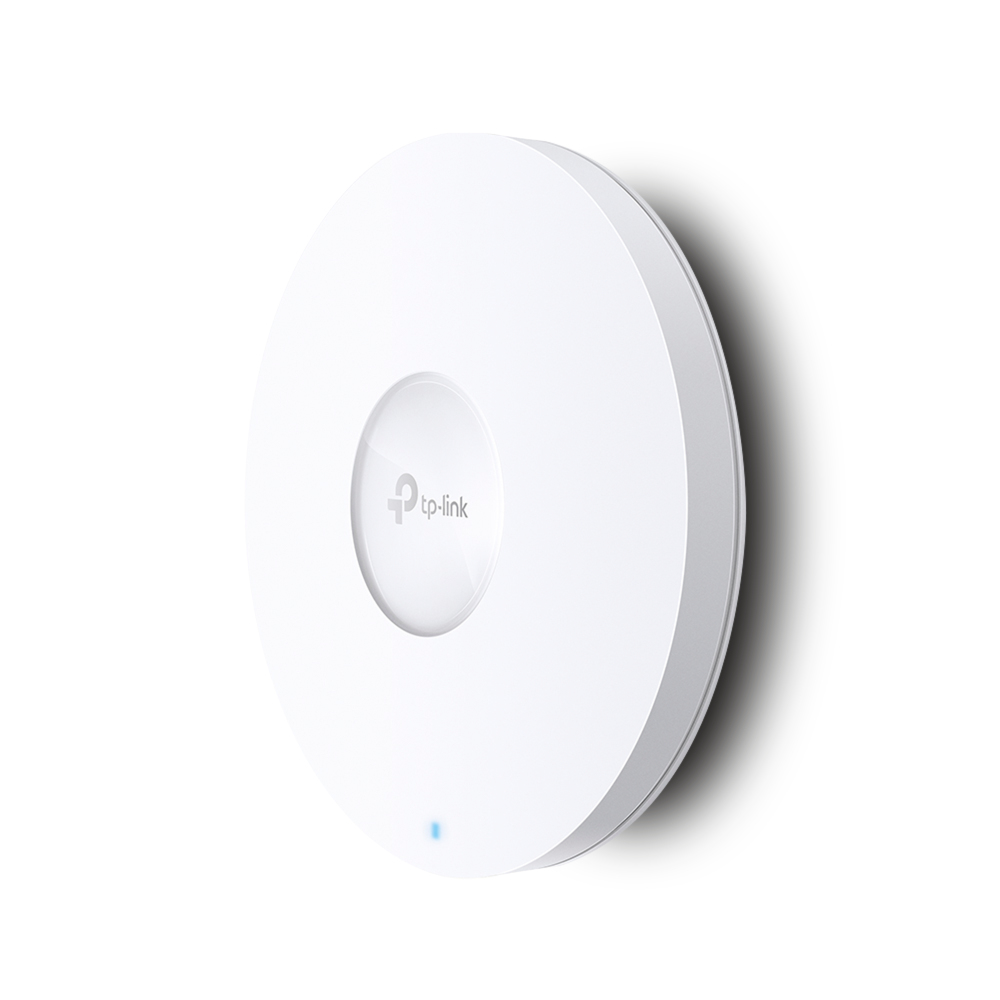

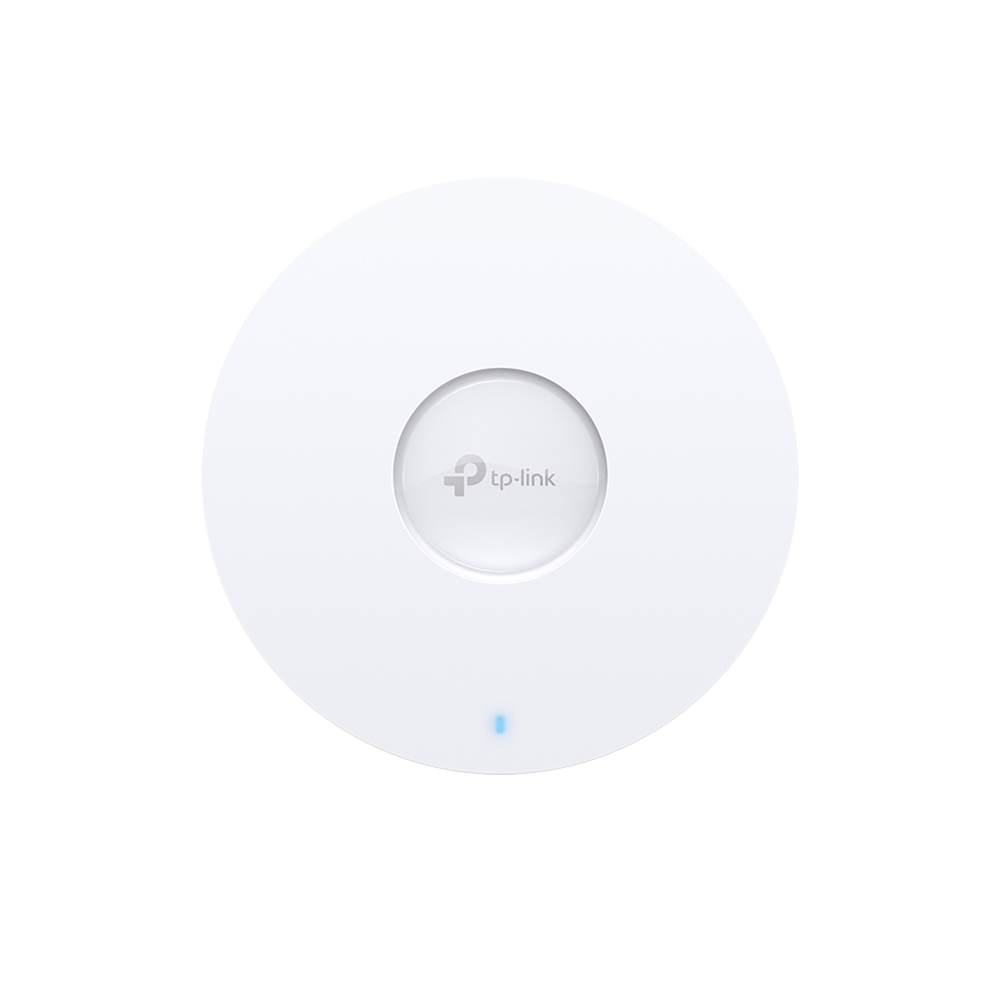

Omada Pro AX1800 Ceiling Mount WiFi 6 Access Point
Model AP9635EAN 840030705540
52 specifications
- Speed1800 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementCeiling, Wall
- Antenna typeInternal
Overview
- Speed
- 1800 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Ceiling, Wall
- Antenna type
- Internal
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- AP9635
- Part number
- AP9635
- EAN / UPC
- 840030705540, 4895252501018
- Also known as
- TP-Link Omada Pro AX1800 Ceiling Mount WiFi 6 Access Point
Specifications
52 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11b, IEEE 802.11n |
| Number of users | 1000 user(s) |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Input current | 1.5 A |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | -10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
