TP-Link AP500 wireless access point 1300 Mbit/s Black

TP-Link AP500 wireless access point 1300 Mbit/s Black

Model AP500Part no. TL-AP500EAN 6935364092979

37 specifications
  • Speed1300 Mbit/s
  • ColourBlack
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
  • PlacementTable
  • Antenna featuresDetachable antenna
See all specifications

Overview

Speed
1300 Mbit/s
Colour
Black
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Placement
Table
Antenna features
Detachable antenna
Brand
TP-Link
Model
AP500
Part numbers
TL-AP500, AP500
EAN / UPC
6935364092979, 845973092979, 5054629963166, 6935364092986
Also known as
TP-Link AP500 wireless access point 1300 Mbit/s Black

Specifications

37 specifications in 11 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1300 Mbit/s
Wi-Fi data rate (max)1300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity11g 54M: -76dBm@10% PER 11n HT20 MCS7: -73dBm@10% PER 11n HT40 MCS7: -71dBm@10% PER 11a 6Mbps:-94dBm@10% PER 11a 54Mbps: -75dBm@10% PER 11ac HT20 MCS8: -66dBm@10% PER 11ac HT40 MCS9: -62dBm@10% PER 11ac HT80 MCS9: -59dBm@10% PER

Security

Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

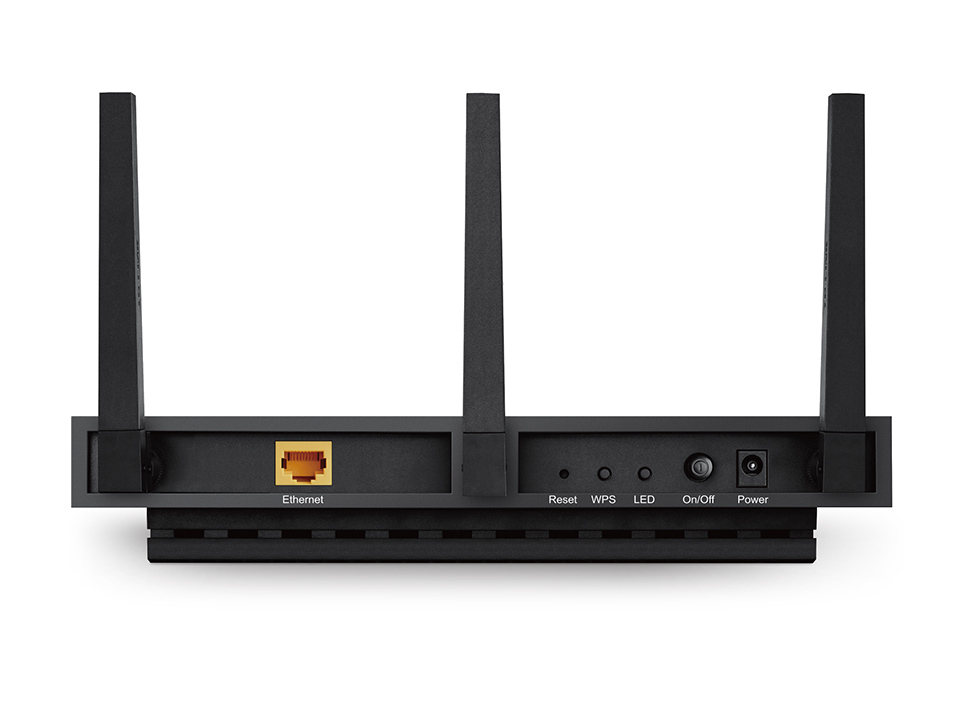

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
DC-in jackYes

Design

PlacementTable
Product colourBlack
On/off switchYes
Reset buttonYes
WPS push buttonYes
LED indicatorsPower, WPS
InternalNo

Antenna

Antenna featuresDetachable antenna
Antennas quantity3

Performance

Built-in processorYes
Processor frequency1000 MHz
Compatible operating systemsMicrosoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1, Mac OS, NetWare, UNIX, Linux

Certificates

CertificationCE, FCC, RoHS

Weight & dimensions

Width242 mm
Depth162 mm
Height44 mm

Packaging data

Package typeBox

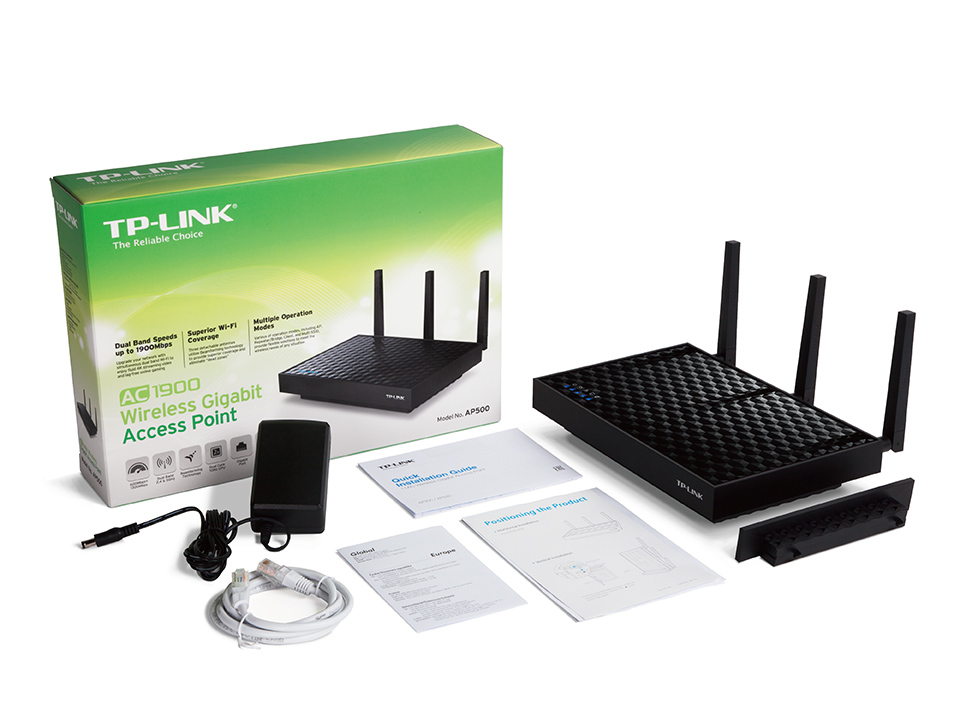

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)
Mounting kitYes
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
