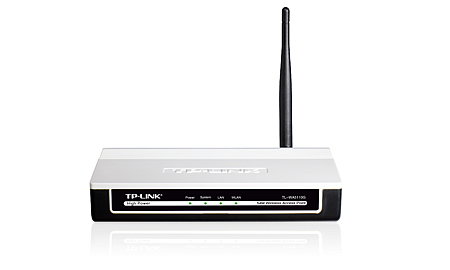

TP-Link 54Mbps High Power Wireless Access Point

TP-Link 54Mbps High Power Wireless Access Point

Model 54Mbps High Power Wireless Access PointPart no. TL-WA5110GEAN 8459730513274

26 specifications

Speed54 Mbit/s
2.4 GHzYes
Ethernet LAN (RJ-45) ports1
InternalNo
Antenna gain level (max)4 dBi
Dimensions (WxDxH)165 x 108 x 28 mm

See all specifications

Overview

Speed: 54 Mbit/s
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1
Internal: No
Antenna gain level (max): 4 dBi
Dimensions (WxDxH): 165 x 108 x 28 mm

Brand: TP-Link
Category: Wireless Access Point
Model: 54Mbps High Power Wireless Access Point
Part number: TL-WA5110G
EAN / UPC: 8459730513274, 115970741782, 168141650987, 191120090870 +8 more
Also known as: TP-Link 54Mbps High Power Wireless Access Point 54 Mbit/s Power over Ethernet (PoE)

Specifications

26 specifications in 11 groups

Features

Specification	Value
2.4 GHz	Yes
Maximum data transfer rate	54 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Modulation	BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Receiver sensitivity	54M: -74dBm 48M: -76dBm 36M: -81dBm 12M: -89dBm 11M:-90dBm 9M:-91dBm 5.5M:-92dBm 1M:-94dBm

Security

Specification	Value
MAC address filtering	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
Supported network protocols	PPPoE, IP

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Output power description	12 V

Design

Specification	Value
Internal	No

Antenna

Specification	Value
Antenna gain level (max)	4 dBi

Certificates

Specification	Value
Certification	CE FCC

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	165 x 108 x 28 mm

Other features

Specification	Value
Compliance industry standards	IEEE 802.11b, IEEE 802.11g
Frequency range	2400 - 2483.5 MHz
Maximum operating distance	50000 m
Connectivity LEDs	Yes
Non-operating relative humidity (non-condensing)	5 - 95%

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
