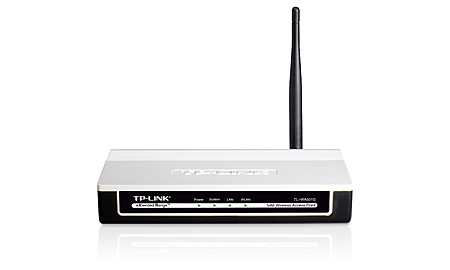

TP-Link 54Mbps eXtended Range Wireless Access Point

54Mbps eXtended Range Wireless Access Point

Model 54Mbps eXtended Range Wireless Access PointPart no. TL-WA501GEAN 3548383020545

39 specifications

Speed54 Mbit/s
2.4 GHzYes
Ethernet LAN (RJ-45) ports1
Antenna direction typeOmni-directional
Dimensions (WxDxH)165 x 108 x 28 mm
Operating relative humidity (H-H)10 - 90%

See all specifications

Overview

Speed: 54 Mbit/s
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1
Antenna direction type: Omni-directional
Dimensions (WxDxH): 165 x 108 x 28 mm
Operating relative humidity (H-H): 10 - 90%

Brand: TP-Link
Category: Wireless Access Point
Model: 54Mbps eXtended Range Wireless Access Point
Part number: TL-WA501G
EAN / UPC: 3548383020545, 6935364051129
Also known as: TP-Link 54Mbps eXtended Range Wireless Access Point 54 Mbit/s Power over Ethernet (PoE)

Specifications

39 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
Maximum data transfer rate	54 Mbit/s
Ethernet LAN data rates	100 Mbit/s
Throughput data rate	54 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Channels quantity	13 channels
Channel bandwidth	20 MHz
Modulation	BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, EAP, SSID, WDS, WPA-PSK, WPA2-PSK
MAC address filtering	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
DHCP client	Yes
Supported network protocols	AP/AP Client/AP Repeater /Bridge/Multi-Bridge, WDS
Data link protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value
Interface	1 10/100Mbps Ethernet Port(Auto MDI/MDIX)
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power supply type	9VDC0.6A PSU
Output power description	17 dBm

Design

Specification	Value
Internal	Yes

Antenna

Specification	Value
Antenna direction type	Omni-directional
Antenna gain level (max)	4 dBi
Antenna connector type	RP-SMA

Performance

Specification	Value
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	165 x 108 x 28 mm

Other features

Specification	Value
Supported data transfer rates	54/48/36/24/18/12/9/6/11/5.5/3/2/1 Mbps
Frequency range	2.4 - 2.4385 MHz
Safety	CE_LVD
Wireless technology	IEEE 802.11b/g
Connectivity LEDs	PWR, SYS, WLAN, LAN
Electromagnetic emissions	CE_EMC, FCC
Non-operating relative humidity (non-condensing)	5 - 95%
Wireless standard	IEEE 802.11b/g

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
