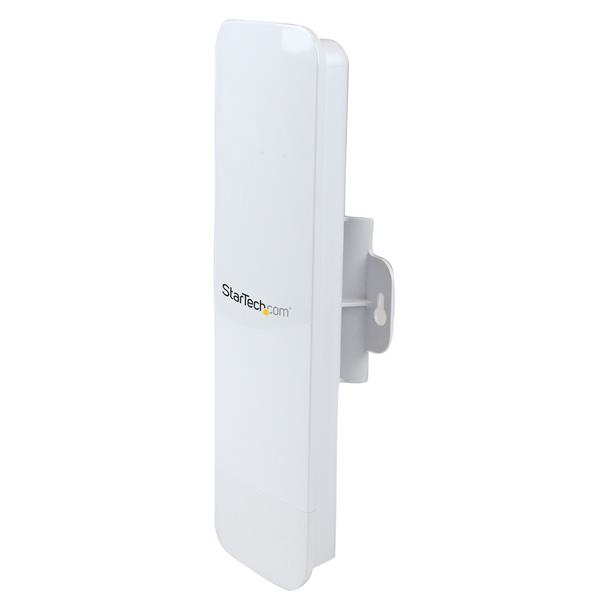

StarTech.com Outdoor 300 Mbps 2T2R Wireless-N Access Point
5GHz 802.11a/n PoE-Powered WiFi AP
Model R300WN22OP5EAN 065030857543
46 specifications
- Speed300 Mbit/s
- Weight326 g
- ColourWhite
- 2.4 GHzNo
- MAC address filteringYes
- Supported network protocolsCSMA/CA
Overview
- Speed
- 300 Mbit/s
- Weight
- 326 g
- Colour
- White
- 2.4 GHz
- No
- MAC address filtering
- Yes
- Supported network protocols
- CSMA/CA
- Brand
- StarTech.com
- Category
- Wireless Access Point
- Model
- R300WN22OP5
- Part number
- R300WN22OP5
- EAN / UPC
- 065030857543
- Also known as
- StarTech.com Outdoor 300 Mbps 2T2R Wireless-N Access Point - 5GHz 802.11a/n PoE-Powered WiFi AP
Specifications
46 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | No |
| 5 GHz | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Frequency band | 5.18 - 5.825 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Channel bandwidth | 40 MHz |
| Full duplex | Yes |
| Modulation | 16-QAM, 64-QAM, BPSK, OFDM, QPSK |
| Quality of Service (QoS) support | Yes |
| Maximum outdoor range | 10000 m |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, TKIP, WEP, WPA, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CA |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

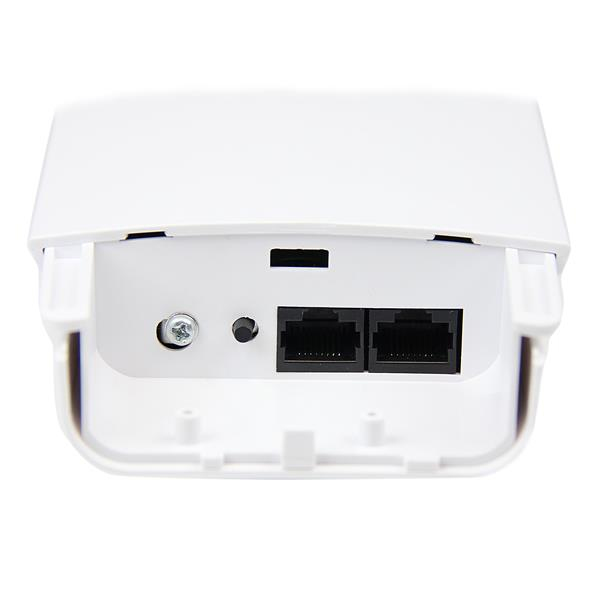

| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 24 V |
| Output current | 1 A |
| Power consumption (max) | 12 W |
| Power plug type | Type M |
Design
| Specification | Value |
|---|---|

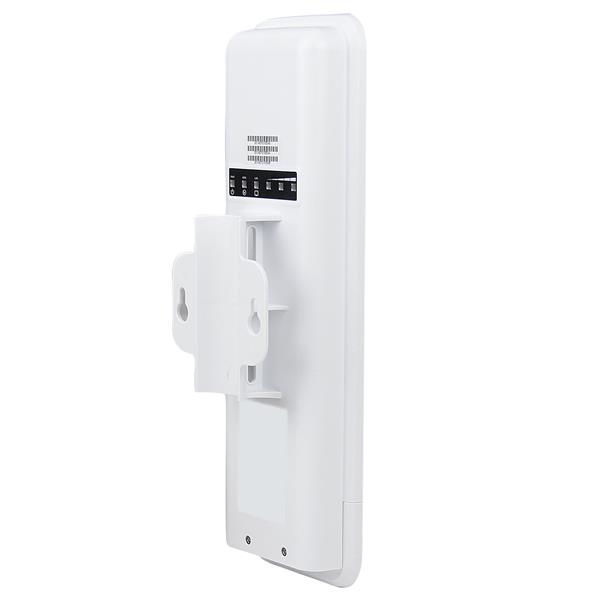

| Placement | Wall |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | LAN, Power, Signal strength, WAN |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 14 dBi |
Performance
| Specification | Value |
|---|---|
| Chipset | Atheros - AR9344 |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, CE, FCC, TAA, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 290 mm |
| Height | 57 mm |
| Weight | 326 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 337 mm |
| Package depth | 120 mm |
| Package height | 92 mm |
| Package weight | 678 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| PoE adapter included | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -30 - 70 °C |
