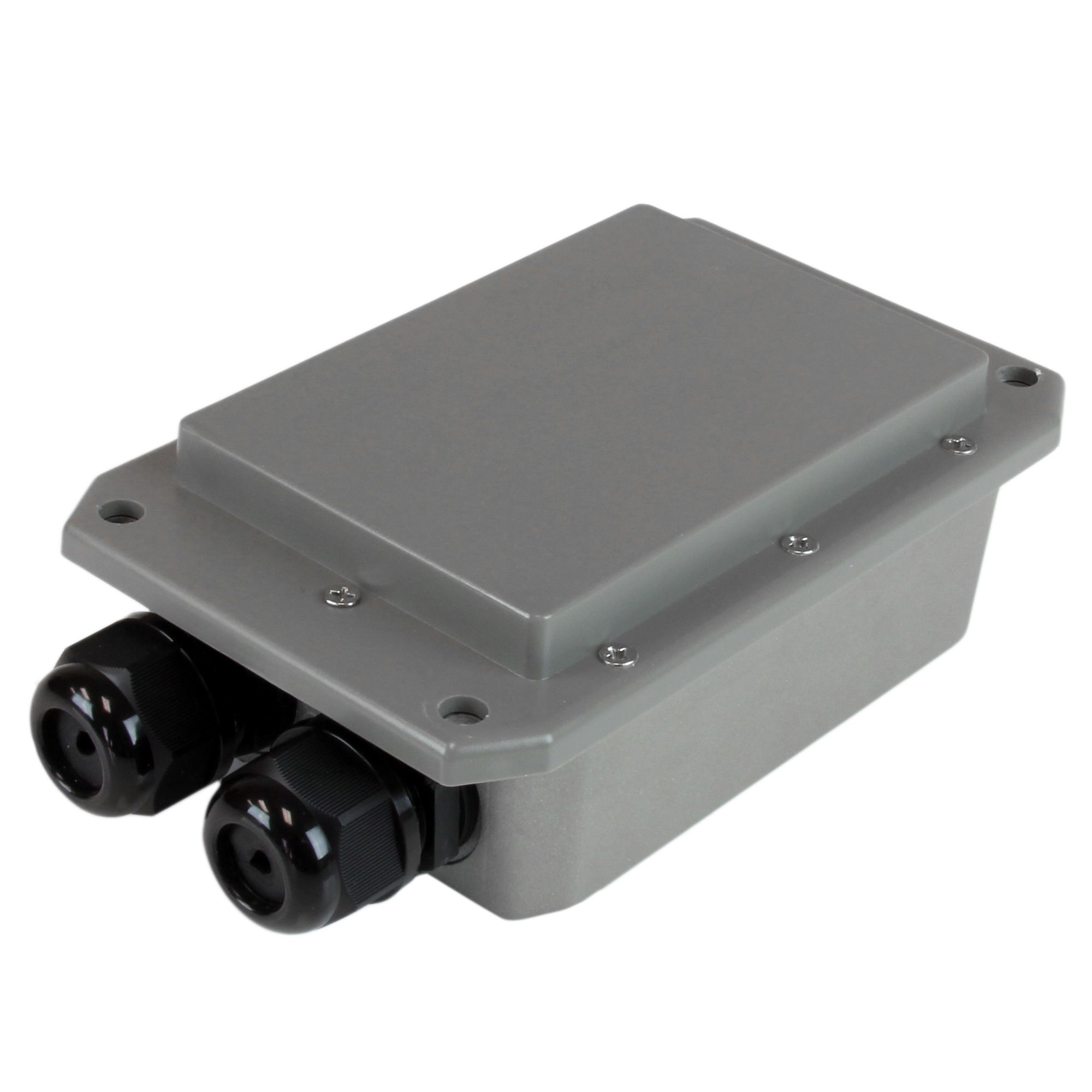

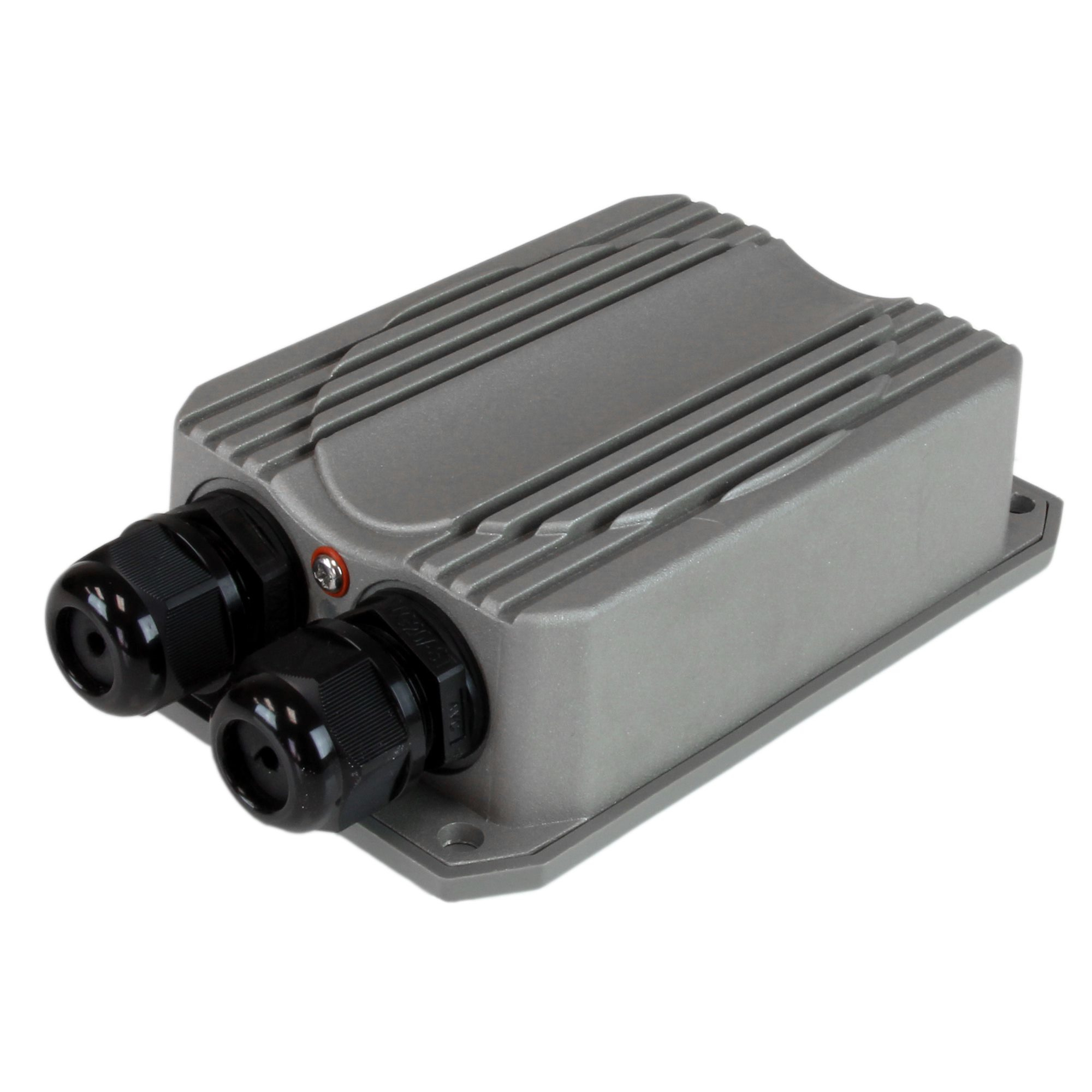

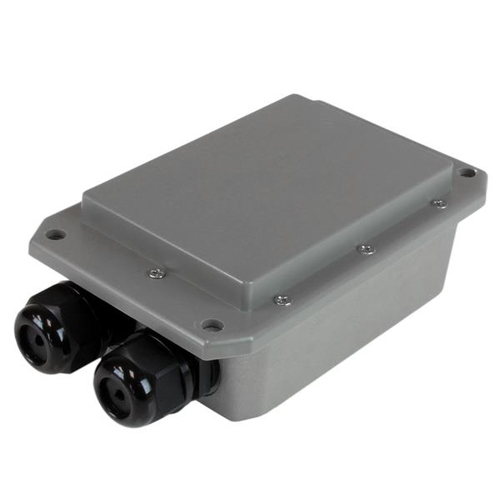

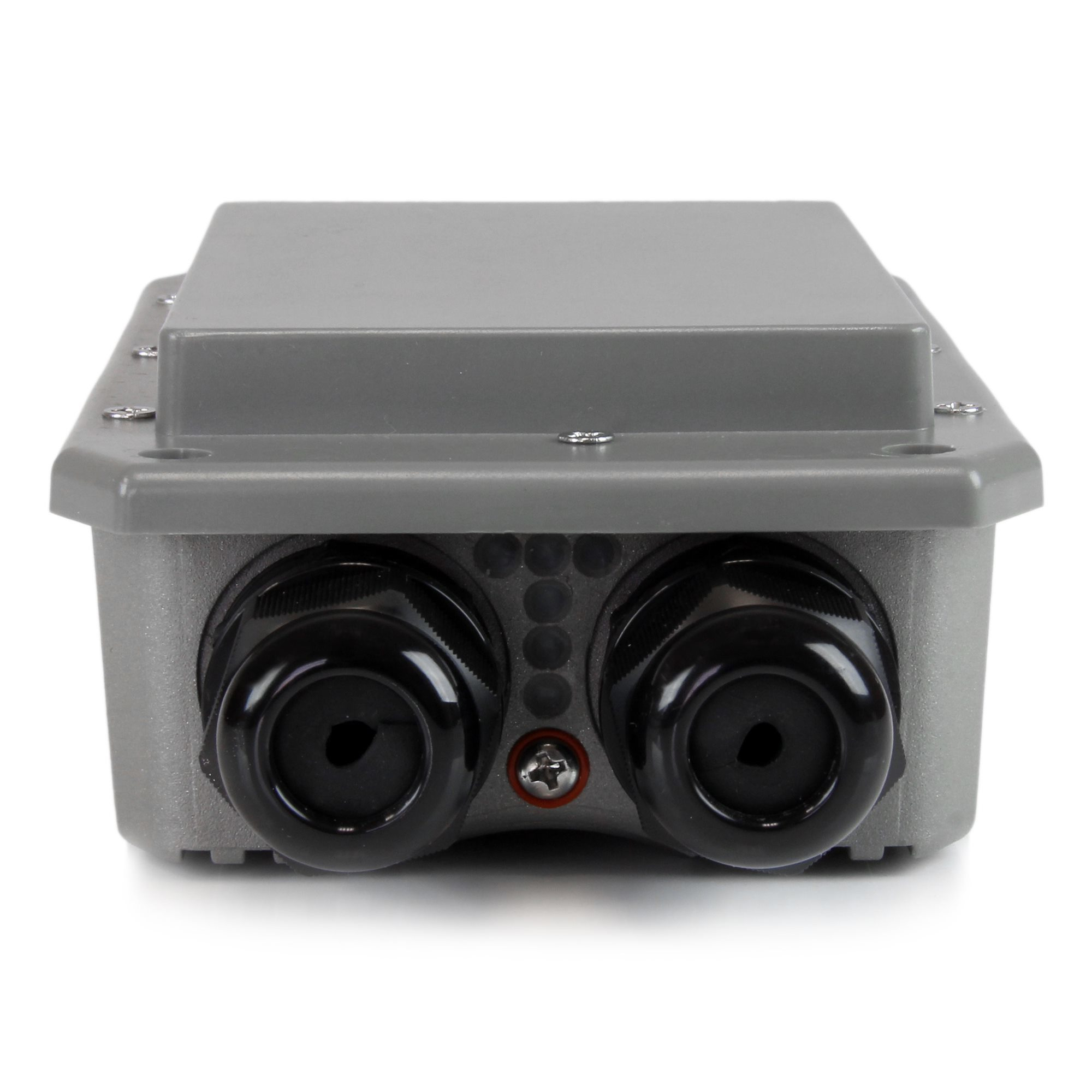

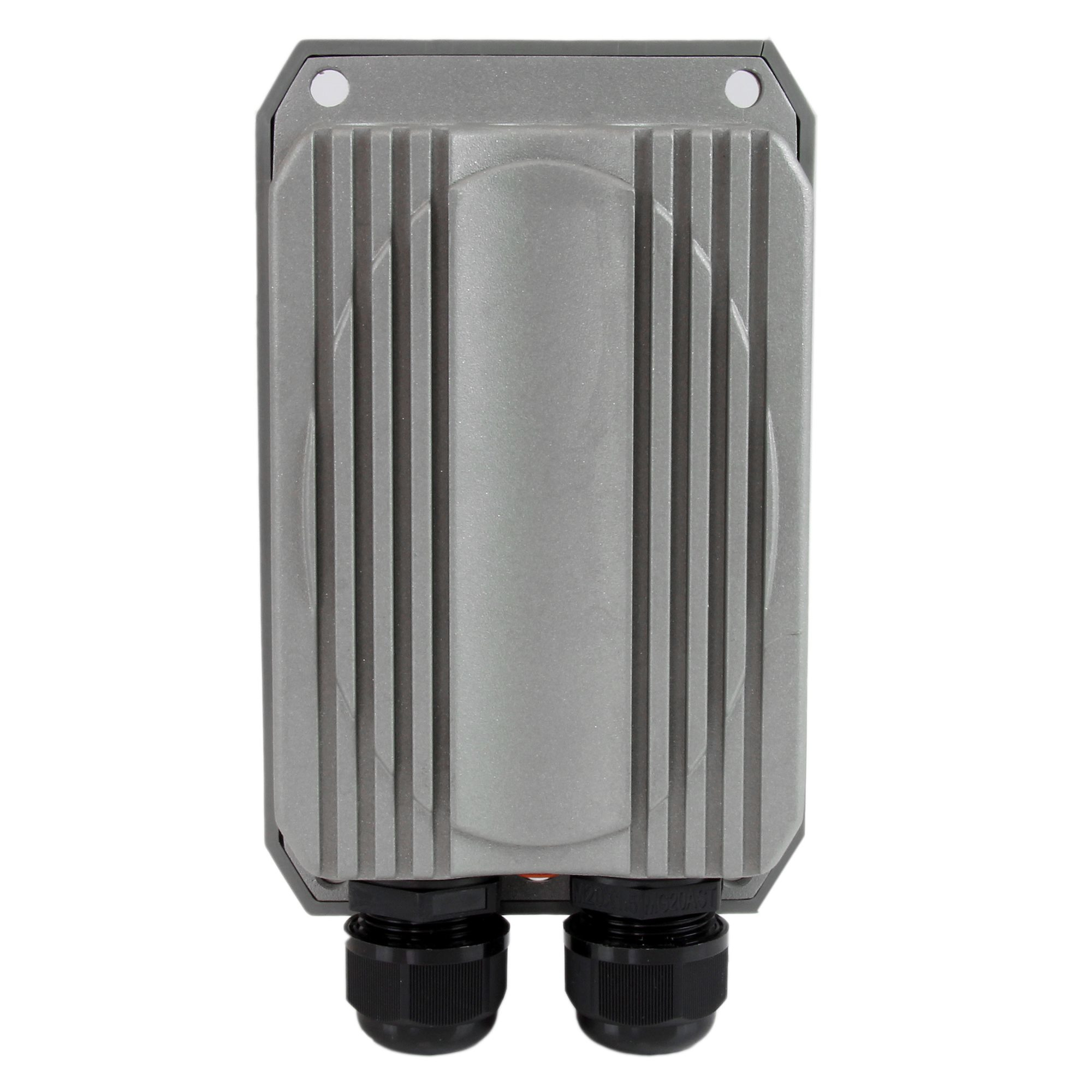

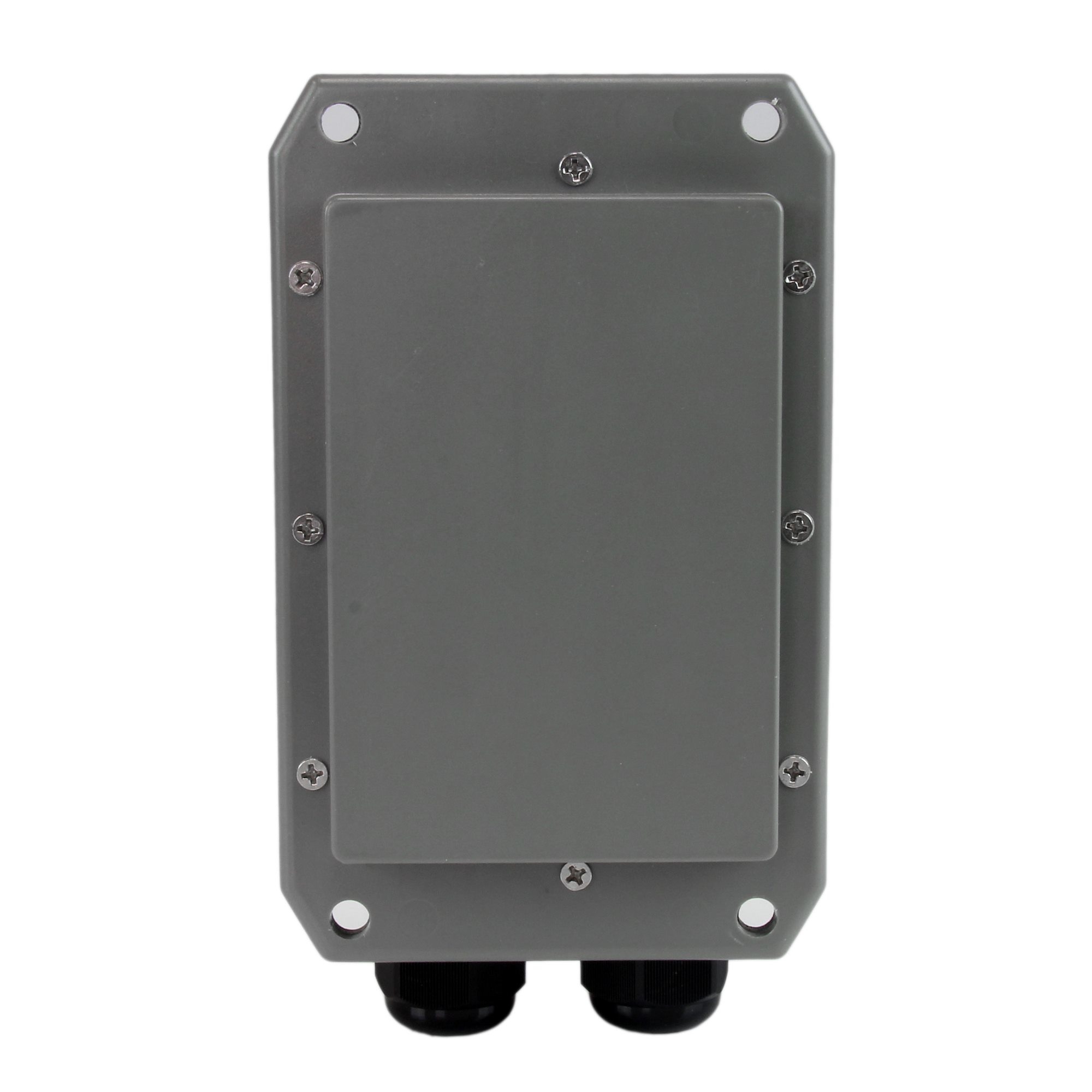

StarTech.com IP67 Certified 2T2R
2.4GHz Outdoor Wireless-N Access Point - PoE-Powered 300 Mbps 802.11b/g/n WiFi AP
Model R300WN22ODGEAN 065030858960
51 specifications
- Speed300 Mbit/s
- Weight686 g
- ColourGrey
- 2.4 GHzYes
- Supported network protocolsCSMA/CA
- Internal RJ-45 ports quantity2
Overview
- Speed
- 300 Mbit/s
- Weight
- 686 g
- Colour
- Grey
- 2.4 GHz
- Yes
- Supported network protocols
- CSMA/CA
- Internal RJ-45 ports quantity
- 2
- Brand
- StarTech.com
- Category
- Wireless Access Point
- Model
- R300WN22ODG
- Part number
- R300WN22ODG
- EAN / UPC
- 065030858960
- Also known as
- StarTech.com IP67 Certified 2T2R 2.4GHz Outdoor Wireless-N Access Point - PoE-Powered 300 Mbps 802.11b/g/n WiFi AP
Specifications
51 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | No |
| Maximum data transfer rate | 300 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Channel bandwidth | 40 MHz |
| Full duplex | Yes |
| Modulation | DSSS, OFDM |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, TKIP, WEP, WPA, WPA2, WPA2-PSK |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CA |
Ports & interfaces
| Specification | Value |
|---|---|
| Internal RJ-45 ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 48 V |
| Output current | 0.5 A |
| Power consumption (typical) | 13.5 W |
Design
| Specification | Value |
|---|---|
| Placement | Table, Wall |
| Product colour | Grey |
| Housing material | Aluminium, Metal, Plastic |
| International Protection (IP) code | IP67 |
| LED indicators | Activity, LAN, Power |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 10 dBi |
Performance
| Specification | Value |
|---|---|
| Chipset | Atheros - AR9341 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 161 mm |
| Height | 58 mm |
| Weight | 686 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 212 mm |
| Package depth | 355 mm |
| Package height | 86 mm |
| Package weight | 1.2 kg |

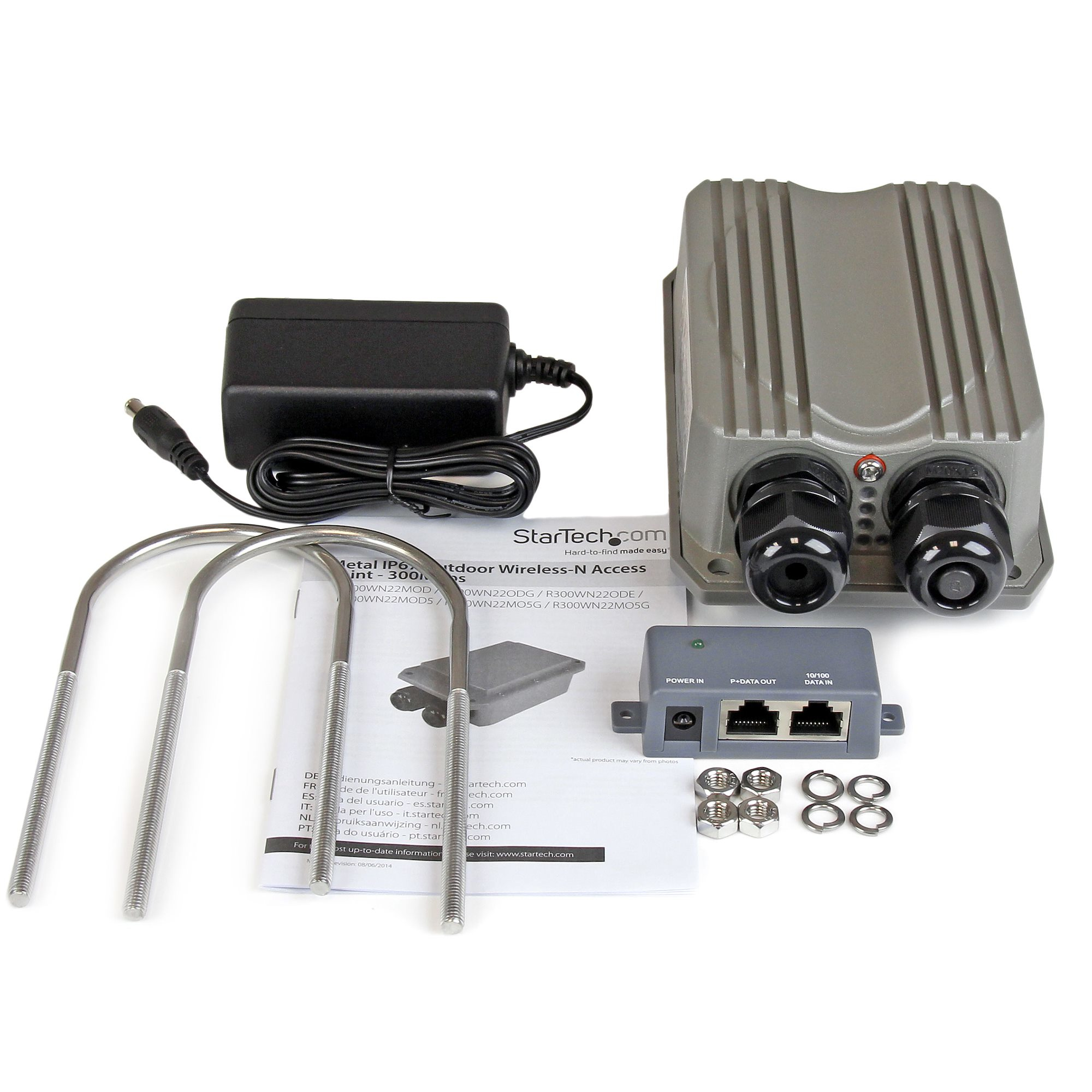

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Maximum operating distance | 3700 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 100% |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 85 °C |
| Storage relative humidity (H-H) | 0 - 100% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 460 mm |
| Master (outer) case height | 390 mm |
| Products per master (outer) case | 10 pc(s) |
What people say
Reviews & ratings
StarTech.com IP67 Certified 2T2R
No reviews yet
Be the first to tell others how StarTech.com IP67 Certified 2T2R works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare StarTech.com IP67 Certified 2T2R
All wireless access point comparisons- StarTech.com IP67 Certified 2T2R vsStarTech.com Guest Wi-Fi Access Point - Wireless-NCompare specs
- StarTech.com IP67 Certified 2T2R vsStarTech.com IP67 Certified 2T2RCompare specs
- StarTech.com IP67 Certified 2T2R vsStarTech.com R300WN22GAGB wireless access point 300 Mbit/sCompare specs
- StarTech.com IP67 Certified 2T2R vsStarTech.com IP67 Certified 2T2RCompare specs

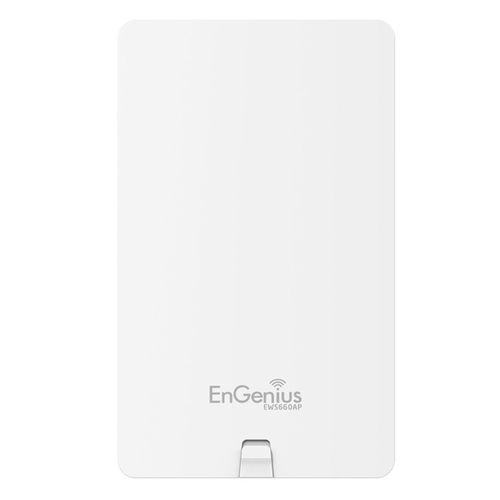

- StarTech.com IP67 Certified 2T2R vsEnGenius EWS660AP Managed AP Outdoor Dual Band 11ac AC1750 450+1300Mbps 3T3R GbE PoE.at 6*5dBi iPOA IP55Compare specs
