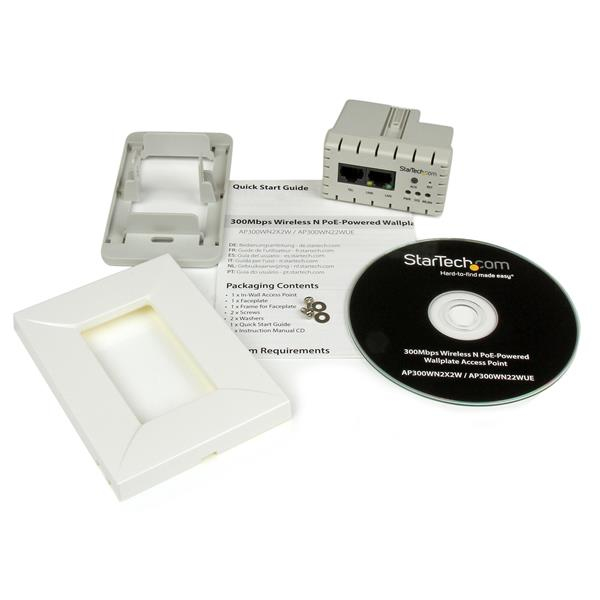

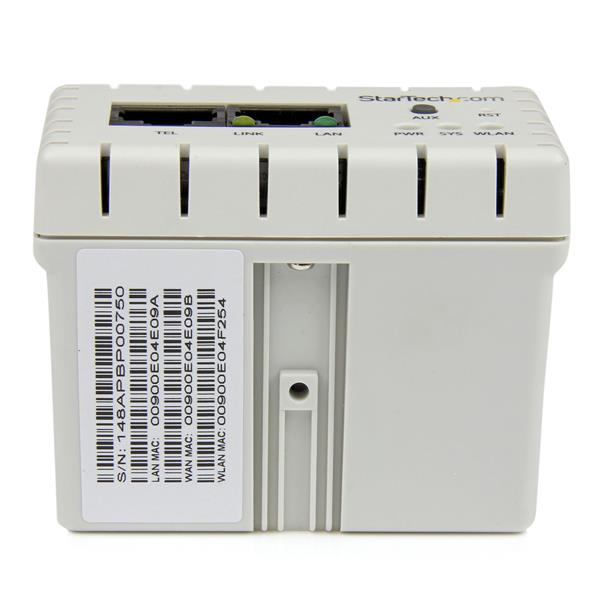

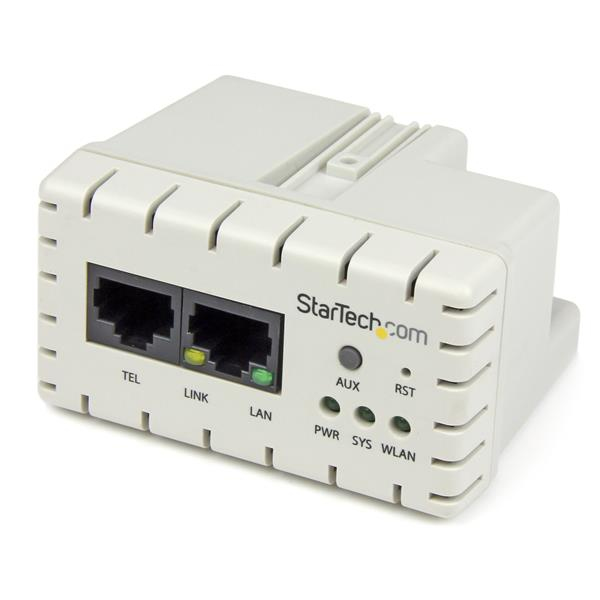

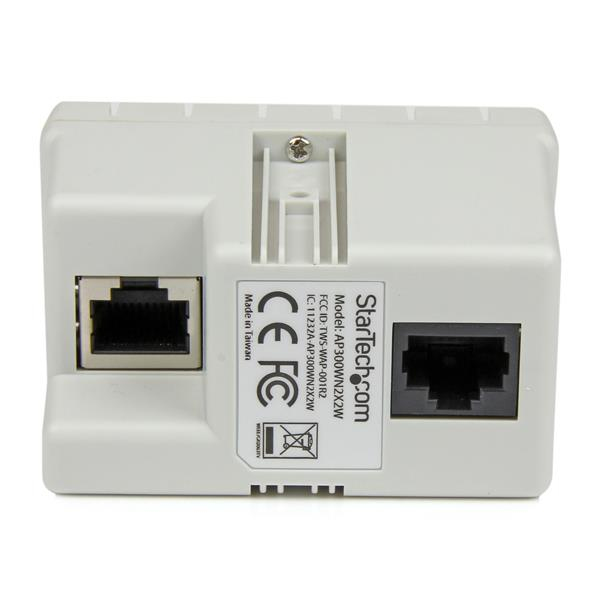

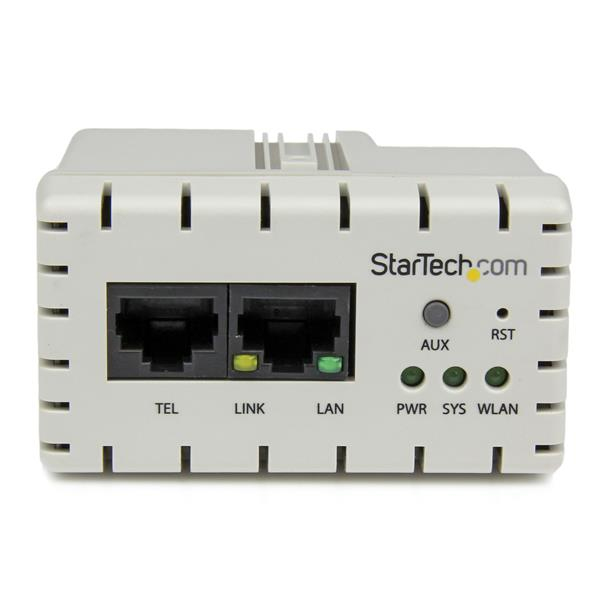

StarTech.com In-Wall Wireless Access Point - Wireless-N - PoE
Model AP300WN2X2WEAN 065030858991
36 specifications
- Speed300 Mbit/s
- Weight84 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsAES, TKIP, WEP, WPA
- Supported network protocolsCSMA, CA
Overview
- Speed
- 300 Mbit/s
- Weight
- 84 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- AES, TKIP, WEP, WPA
- Supported network protocols
- CSMA, CA
- Brand
- StarTech.com
- Category
- Wireless Access Point
- Model
- AP300WN2X2W
- Part number
- AP300WN2X2W
- EAN / UPC
- 065030858991
- Also known as
- StarTech.com In-Wall Wireless Access Point - Wireless-N - PoE
Specifications
36 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | No |
| Maximum data transfer rate | 300 Mbit/s |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Frequency band | 2.412 - 2.472 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Maximum indoor range | 10 m |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, TKIP, WEP, WPA |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA, CA |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| LED indicators | LAN, Power, WAN, WLAN |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 3.4 dBi |
Performance
| Specification | Value |
|---|---|
| Chipset | Mediatek - MT7620n |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 39 mm |
| Depth | 72 mm |
| Height | 55 mm |
| Weight | 84 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 166 mm |
| Package depth | 212 mm |
| Package height | 76 mm |
| Package weight | 310 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
