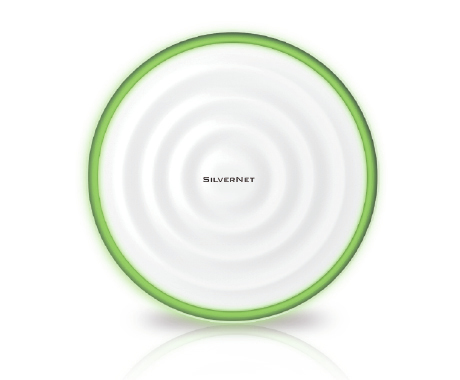

WCAP-PRO 1750 Mbit/s White Power over Ethernet (PoE)
Model WCAP-PROPart no. SIL-WCAP-PROEAN 5060693980947
52 specifications
- ProcessorQualcomm Atheros
- Memory128 MB
- Speed1750 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
Overview
- Processor
- Qualcomm Atheros
- Memory
- 128 MB
- Speed
- 1750 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- SilverNet
- Category
- Wireless Access Point
- Model
- WCAP-PRO
- Part number
- SIL-WCAP-PRO
- EAN / UPC
- 5060693980947
- Also known as
- SilverNet WCAP-PRO 1750 Mbit/s White Power over Ethernet (PoE)
Specifications
52 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1750 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 150 user(s) |
| MIMO | Yes |
| VLAN support | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum indoor range | 200 m |
| Maximum outdoor range | 200 m |
| Transmitting power | 27 dBmW |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-TKIP |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Output voltage | 48 V |
| Output current | 0.32 A |
| Power consumption (max) | 15 W |
| Power plug type | Type G |
| Power supply | 15.4 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Status |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 3 dBi |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros |
| Processor frequency | 720 MHz |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 180 mm |
| Height | 56 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| PoE adapter included | Yes |
| Cables included | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -10 - 60 °C |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
