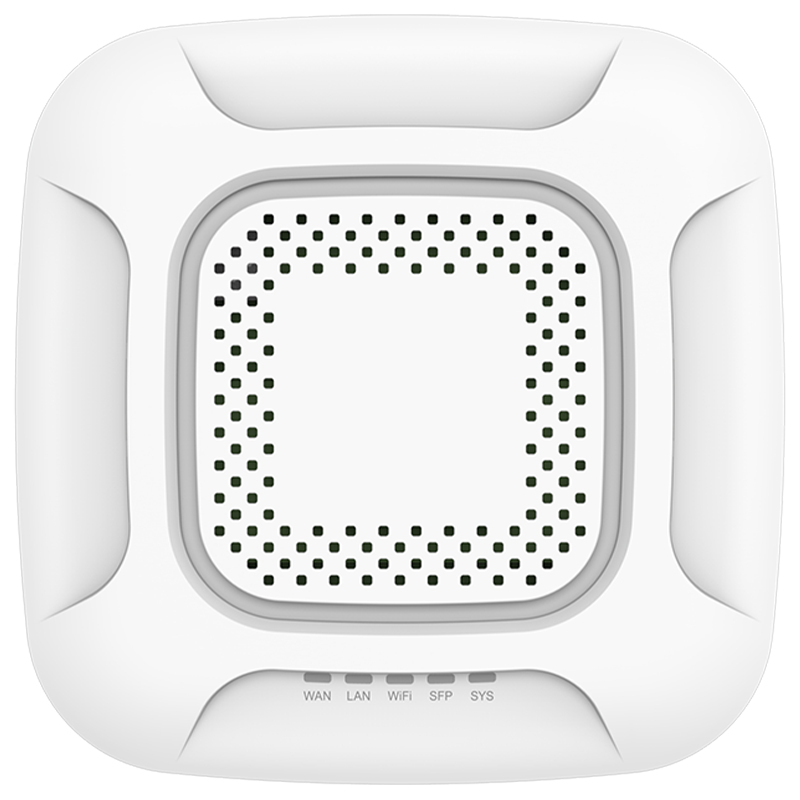

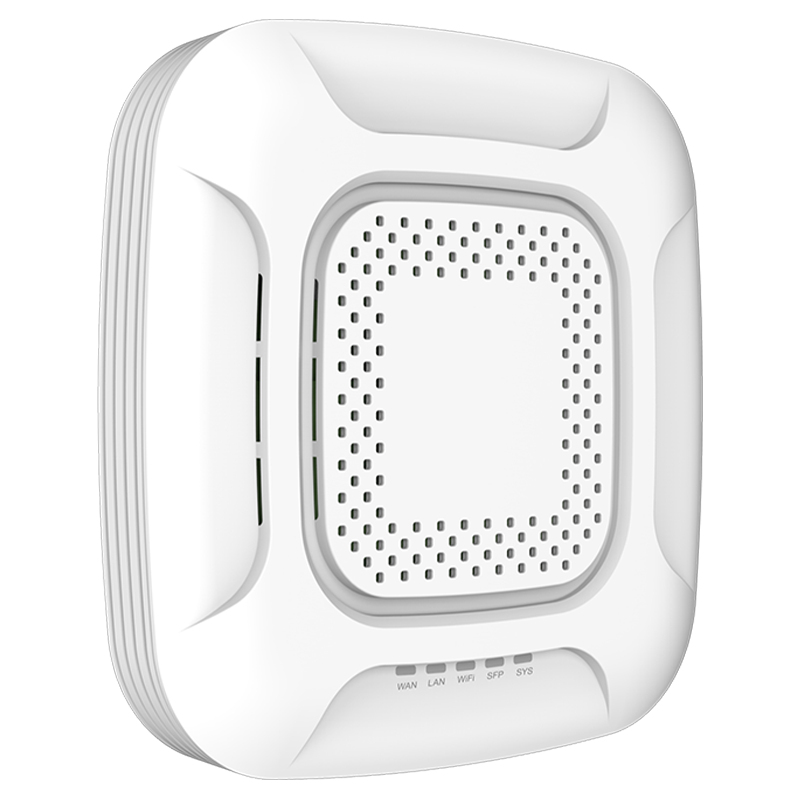

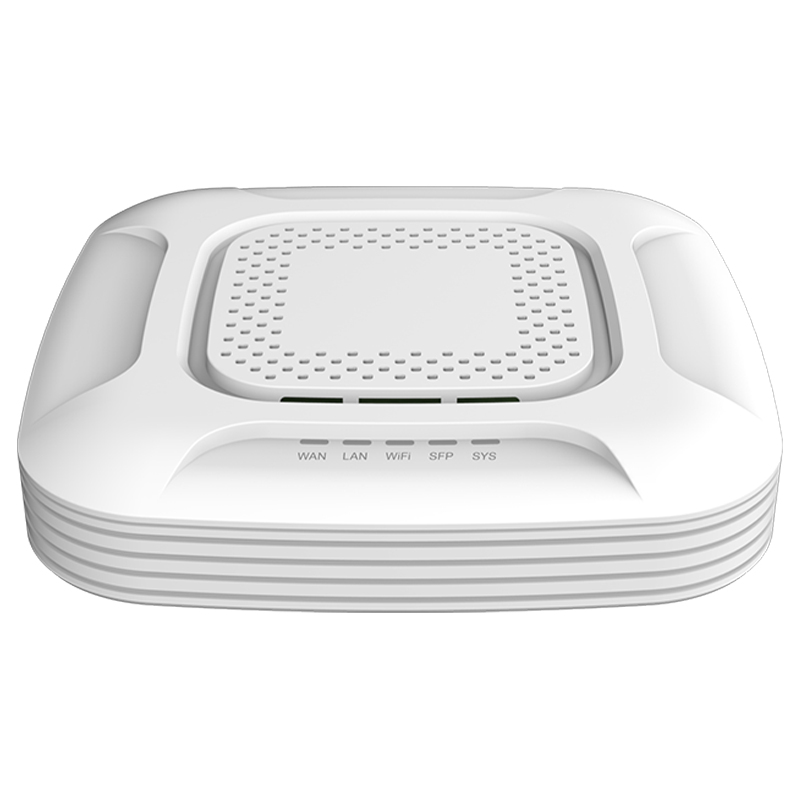

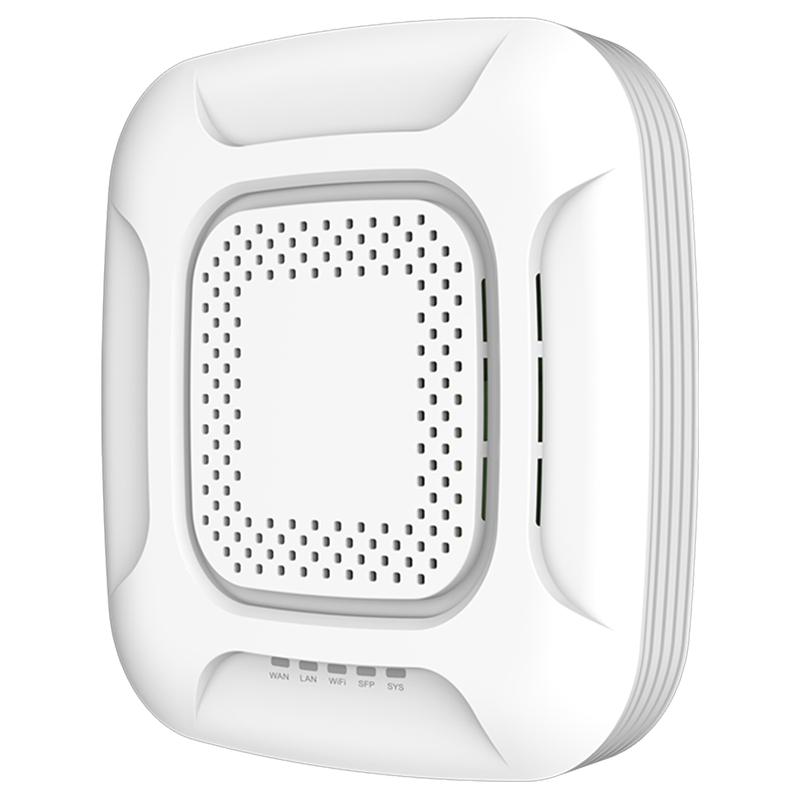

SIL WCAP-7X
Model SIL WCAP-7XEAN 5060693983078
65 specifications
- Memory1024 MB
- Speed9794 Mbit/s
- Weight550 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA2, WPA3
Overview
- Memory
- 1024 MB
- Speed
- 9794 Mbit/s
- Weight
- 550 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA2, WPA3
- Brand
- SilverNet
- Category
- Wireless Access Point
- Model
- SIL WCAP-7X
- Part number
- SIL WCAP-7X
- EAN / UPC
- 5060693983078
- Also known as
- SilverNet SIL WCAP-7X wireless access point 9794 Mbit/s White Power over Ethernet (PoE)
Specifications
65 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate | 9794 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2882 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5764 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Number of users | 384 user(s) |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Fit AP mode features | 802.11k & 802.11v smart roaming |
| Fast roaming | Yes |
| WLAN channel features | WLAN channel management |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum indoor range | 200 m |
| Transmitting power (CE) | 20 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2, WPA3 |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
| Guest access | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Firmware upgradeable | Yes |

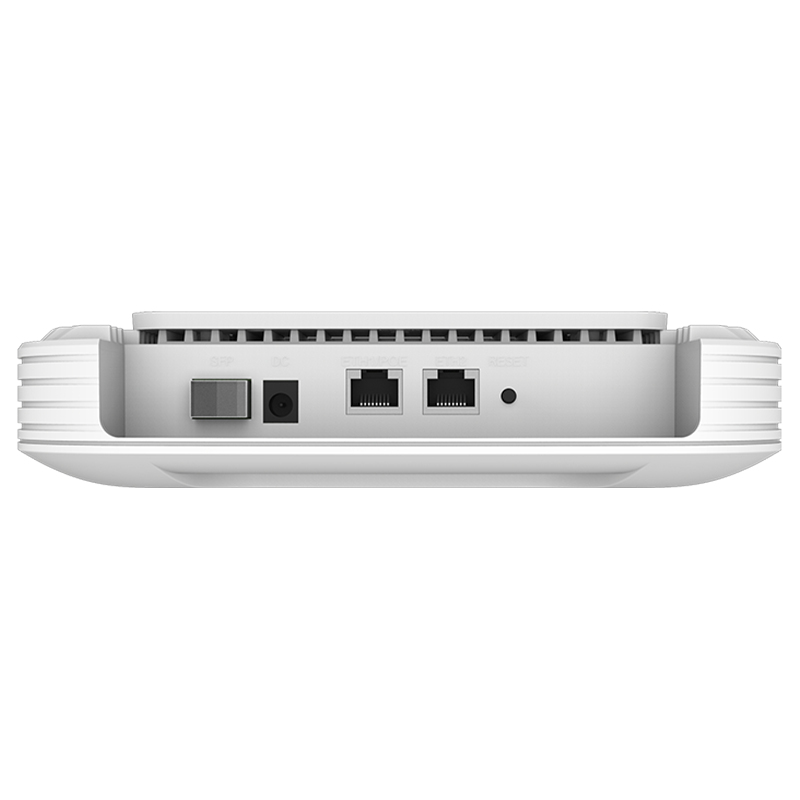

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 15.4 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Housing material | Plastic |
| Reset button | Yes |
| LED indicators | LAN, Power, WAN |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 4 dBi |
| Polarization | Dual polarization |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 1024 MB |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 208 mm |
| Depth | 46 mm |
| Height | 208 mm |
| Weight | 550 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Country of origin | United Kingdom |
