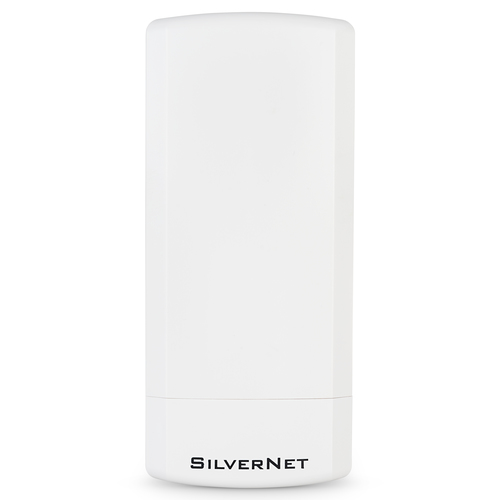

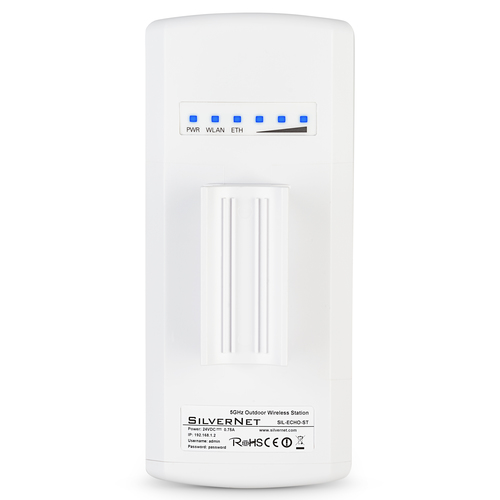

ECHO-ST 300 Mbit/s White Power over Ethernet (PoE)
Model ECHO-STPart no. SIL ECHO-STEAN 5060693981005
34 specifications
- Speed300 Mbit/s
- Weight270 g
- ColourWhite
- 2.4 GHzNo
- Web-based managementYes
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 300 Mbit/s
- Weight
- 270 g
- Colour
- White
- 2.4 GHz
- No
- Web-based management
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- SilverNet
- Category
- Wireless Access Point
- Model
- ECHO-ST
- Part number
- SIL ECHO-ST
- EAN / UPC
- 5060693981005, 5704174161950
- Also known as
- SilverNet ECHO-ST 300 Mbit/s White Power over Ethernet (PoE)
Specifications
34 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | No |
| 5 GHz | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| MIMO | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Transmitting power | 23 dBmW |
| Receiver sensitivity | -74dBm@300Mbps -78dBm@54Mbps -98dBm@1Mbps |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES, WPA, WPA2-AES, WPA2-PSK, WPA2-TKIP |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 24 V |
| Power consumption (typical) | 6 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| LED indicators | LAN, Power, WLAN |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 16 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 90 mm |
| Height | 68 mm |
| Weight | 270 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 80 mm |
| Package depth | 80 mm |
| Package height | 330 mm |
| Package weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
