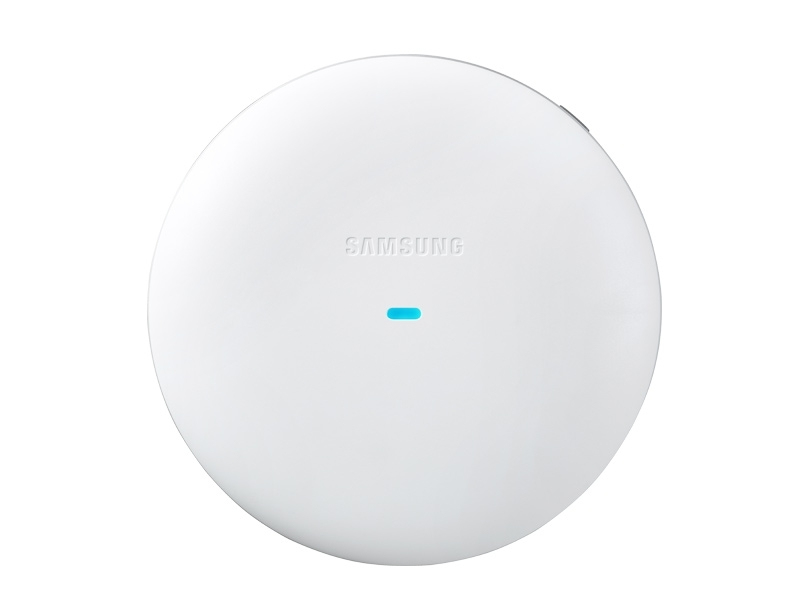

WEA524i 1733 Mbit/s White Power over Ethernet (PoE)
Model WEA524iPart no. WDS-A524I
42 specifications
- Speed1733 Mbit/s
- Weight620 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports2
- PlacementCeiling, Wall
Overview
- Speed
- 1733 Mbit/s
- Weight
- 620 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Placement
- Ceiling, Wall
- Brand
- Samsung
- Category
- Wireless Access Point
- Model
- WEA524i
- Part number
- WDS-A524I
- Also known as
- Samsung WEA524i 1733 Mbit/s White Power over Ethernet (PoE)
Specifications
42 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1733 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4-2.4835; 5.15-5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 256-QAM |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi Multimedia (WMM) features | WMM power saving |
| Wi-Fi roaming | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Quality of Service (QoS) support | Yes |
| Transmitting power | 26 dBmW |
| Receiver sensitivity | - 93 dBm (5 GHz MCS 0/Path), - 94 dBm (2.4 GHz MCS 0/Path) |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, EAP, EAP-AKA, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP, TKIP, WPA, WPA2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 48 V |
| Output current | 0.75 A |
| Power supply | 20 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Reset button | Yes |
| LED indicators | Status, System |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | KN 60950-1 UL 60950-1 EN 60950-1 KN 301 489-1/KN 301 489-17, KN 32, KN 24 EN 301 489-1/EN 301 489-17, EN 55032, EN 55024 FCC 15 B EN 300 328, EN 301 893, EN 300 440, EN 62311 FCC 15 C, E |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 203 mm |
| Depth | 203 mm |
| Height | 45 mm |
| Weight | 620 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
