WEA412h 867 Mbit/s White Power over Ethernet (PoE)
Model WEA412hPart no. WDS-A412H
45 specifications
- Memory256 MB
- Speed867 Mbit/s
- Weight330 g
- ColourWhite
- 2.4 GHzYes
- Number of SSID supported16
Overview
- Memory
- 256 MB
- Speed
- 867 Mbit/s
- Weight
- 330 g
- Colour
- White
- 2.4 GHz
- Yes
- Number of SSID supported
- 16
- Brand
- Samsung
- Category
- Wireless Access Point
- Model
- WEA412h
- Part number
- WDS-A412H
- Also known as
- Samsung WEA412h 867 Mbit/s White Power over Ethernet (PoE)
Specifications
45 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Channel bandwidth | 80 MHz |
| MIMO | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Quality of Service (QoS) support | Yes |
| Transmitting power | 22 dBmW |
| Receiver sensitivity | -93 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | EAP, WPA, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES |
| Number of SSID supported | 16 |
| Auto Wireless Distribution System (WDS) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

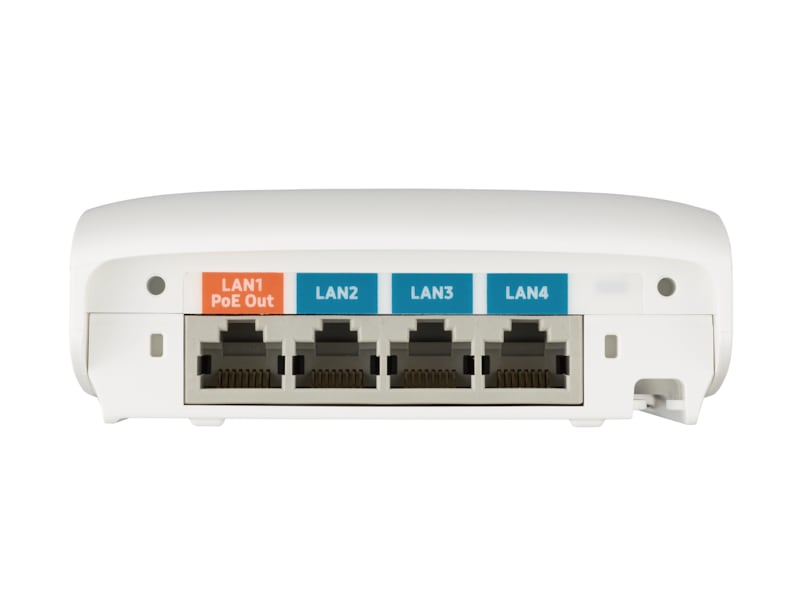

| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| RS-232 interface | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 48 V |
| Output current | 0.75 A |
| Power supply | 36 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Reset button | Yes |
| LED indicators | Status |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 900 MHz |
| Flash memory | 128 MB |
| Internal memory | 256 MB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96 mm |
| Depth | 144 mm |
| Height | 36 mm |
| Weight | 330 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
