NETGEAR WiFi 6 AX3200 Dual Band Access Point (WAX206)

WiFi 6 AX3200 Dual Band Access Point (WAX206)

Model WiFi 6 AX3200 Dual Band Access Point (WAX206)Part no. WAX206-100EUSEAN 606449154498

42 specifications

Speed3200 Mbit/s
Weight504 g
ColourWhite
2.4 GHzYes
Security algorithmsSSID
Ethernet LAN (RJ-45) ports4

See all specifications

Overview

Speed: 3200 Mbit/s
Weight: 504 g
Colour: White
2.4 GHz: Yes
Security algorithms: SSID
Ethernet LAN (RJ-45) ports: 4

Brand: NETGEAR
Category: Wireless Access Point
Model: WiFi 6 AX3200 Dual Band Access Point (WAX206)
Part number: WAX206-100EUS
EAN / UPC: 606449154498, 10606449154495
Also known as: NETGEAR WiFi 6 AX3200 Dual Band Access Point (WAX206) 3200 Mbit/s White

Specifications

42 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	3200 Mbit/s
Maximum data transfer rate (2.4 GHz)	800 Mbit/s
Maximum data transfer rate (5 GHz)	2400 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n
Number of users	128 user(s)
Wi-Fi Multimedia (WMM)/(WME)	Yes

Security

Specification	Value
Security algorithms	SSID
MAC address filtering	Yes
Access Control List (ACL)	Yes
VPN support	Pass-through

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value

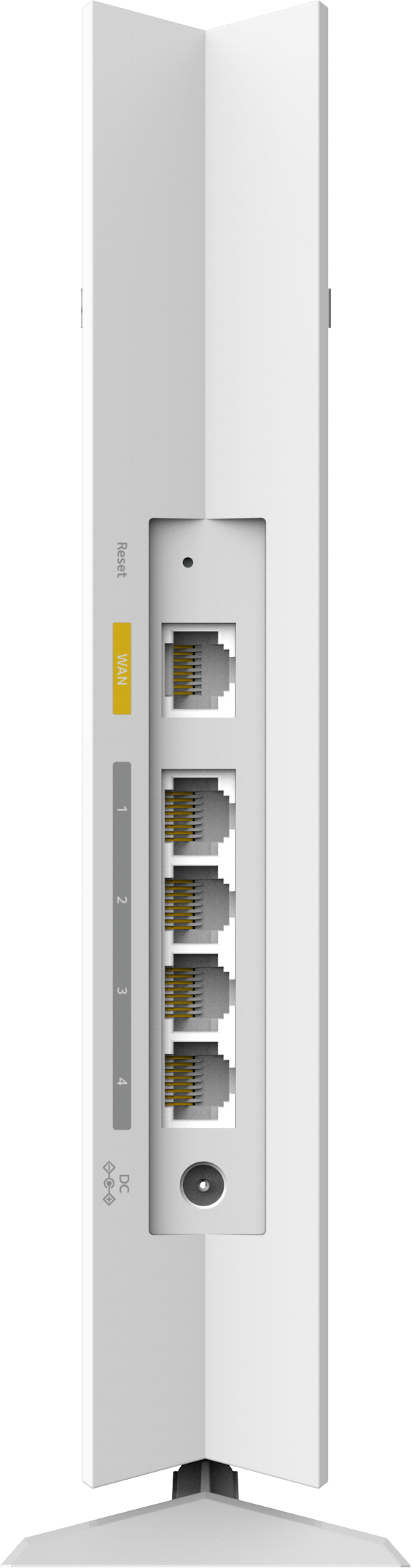

Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	No
AC input voltage	12 V
Input current	2.5 A

Design

Specification	Value
Placement	Table
Product colour	White
Reset button	Yes

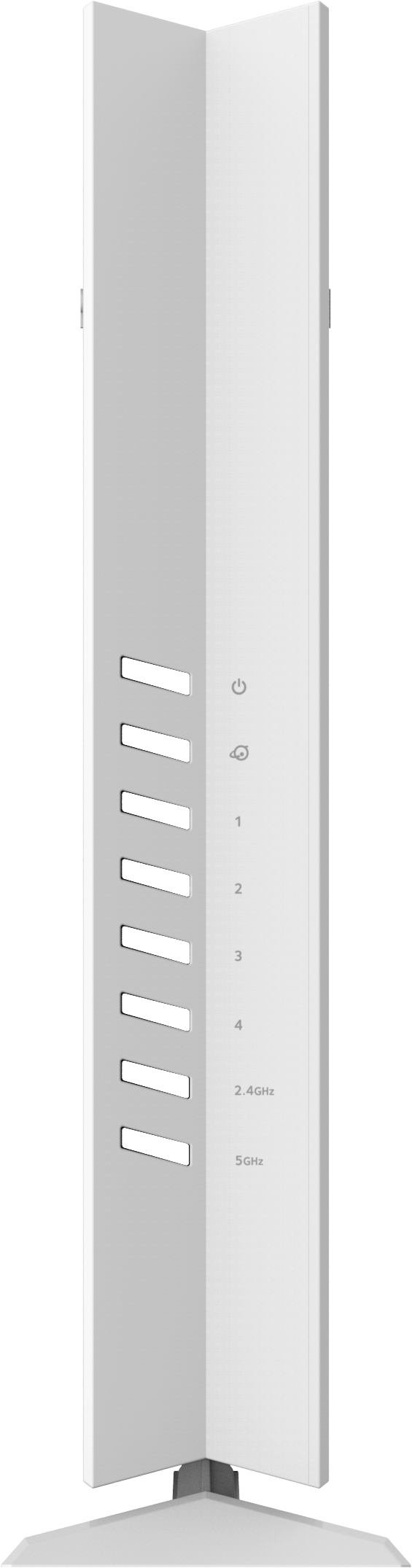

LED indicators	LAN, Power, Status

Antenna

Specification	Value
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	3.5 dBi

Certificates

Specification	Value
Certification	CB IEC60950-1, CE LVD EN62368-1

Weight & dimensions

Specification	Value
Width	63 mm
Depth	170 mm
Height	242 mm
Weight	504 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
AC adapter included	Yes
Cables included	LAN (RJ-45)
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
