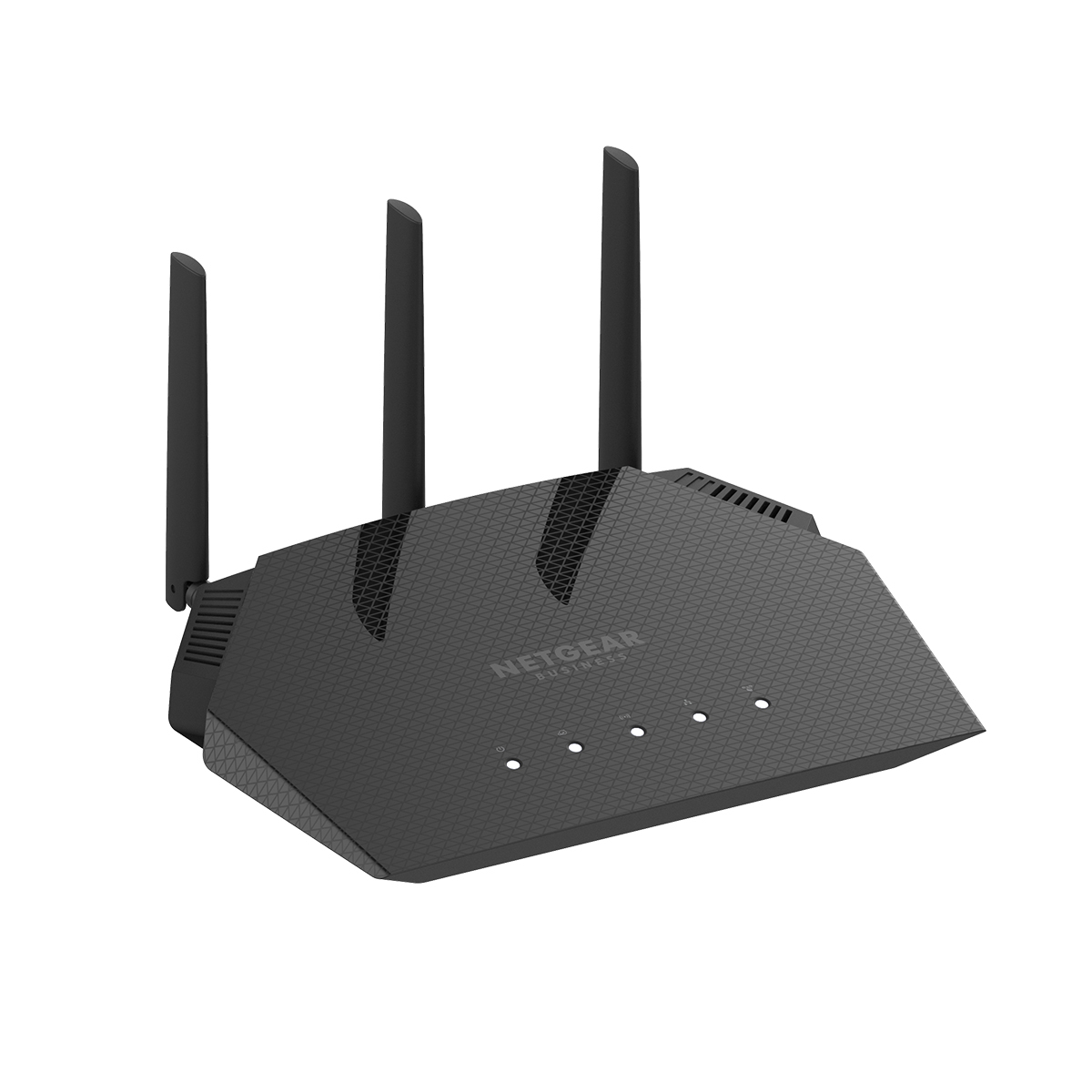

NETGEAR WiFi 6 AX1800 Dual Band Wireless Access Point (WAX204)

WiFi 6 AX1800 Dual Band Wireless Access Point (WAX204)

Model WiFi 6 AX1800 Dual Band Wireless Access Point (WAX204)Part no. WAX204-100EUSEAN 606449152548

43 specifications

Speed1800 Mbit/s
Weight490 g
ColourBlack
2.4 GHzYes
Security algorithmsWPA, WPA2, WPA3
Ethernet LAN (RJ-45) ports5

See all specifications

Overview

Speed: 1800 Mbit/s
Weight: 490 g
Colour: Black
2.4 GHz: Yes
Security algorithms: WPA, WPA2, WPA3
Ethernet LAN (RJ-45) ports: 5

Brand: NETGEAR
Category: Wireless Access Point
Model: WiFi 6 AX1800 Dual Band Wireless Access Point (WAX204)
Part number: WAX204-100EUS
EAN / UPC: 606449152548
Also known as: NETGEAR WiFi 6 AX1800 Dual Band Wireless Access Point (WAX204) 1800 Mbit/s Black

Specifications

43 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n
Number of users	64 user(s)
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA3
MAC address filtering	Yes
Number of SSID supported	3
Access Control List (ACL)	Yes
VPN support	VPN Pass-through

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB 2.0 ports quantity	0

Power

Specification	Value
Power over Ethernet (PoE)	No
Output voltage	12 V
Output current	1.5 A
Power supply	18 W

Design

Specification	Value
Placement	Table
Product colour	Black
Reset button	Yes
WPS push button	Yes
LED indicators	LAN, Link, Power, WLAN, WPS

Antenna

Specification	Value
Antenna type	External
Antennas quantity	3
Antenna gain level (max)	3 dBi

Certificates

Specification	Value
Certification	CE (EN60950)

Weight & dimensions

Specification	Value
Width	236 mm
Depth	184 mm
Height	57 mm
Weight	490 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
AC adapter included	Yes
Cables included	LAN (RJ-45)
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
