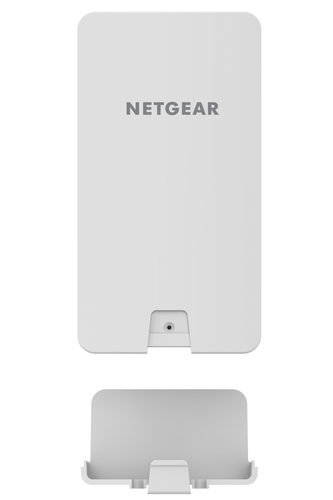

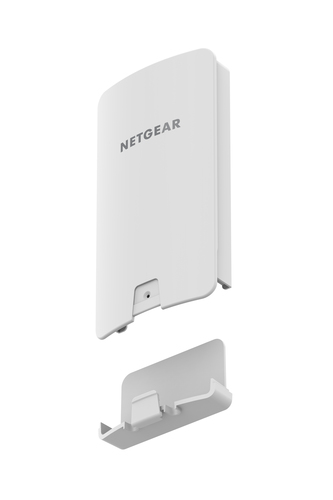

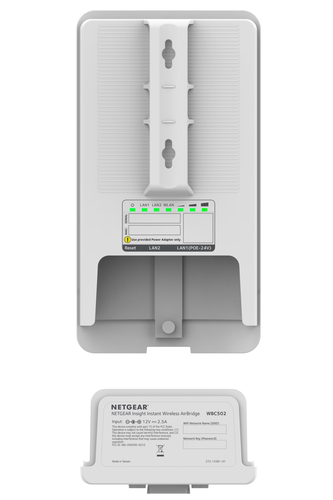

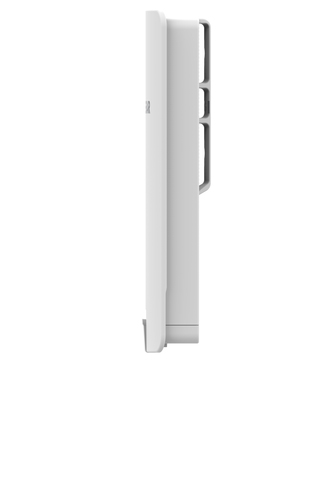

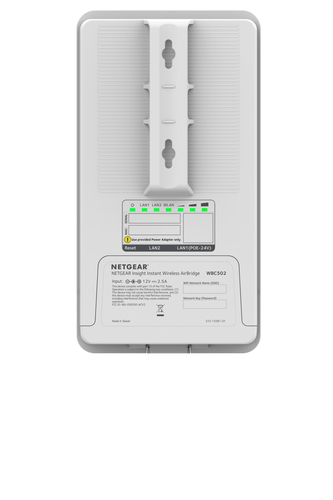

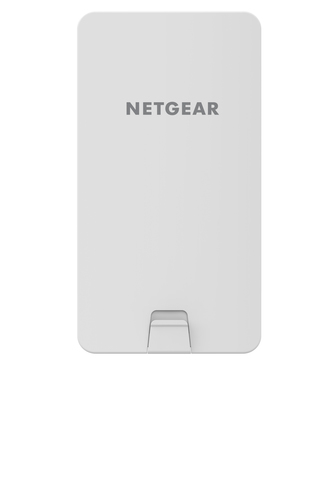

WBC502 1000 Mbit/s Power over Ethernet (PoE)

Model WBC502Part no. WBC502-100PESEAN 606449146783

57 specifications

Speed1000 Mbit/s
Weight504 g
2.4 GHzYes
Ethernet LAN (RJ-45) ports2
International Protection (IP) codeIP55
Antenna typeInternal

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 504 g
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 2
International Protection (IP) code: IP55
Antenna type: Internal

Brand: NETGEAR
Category: Wireless Access Point
Model: WBC502
Part number: WBC502-100PES
EAN / UPC: 606449146783
Also known as: NETGEAR WBC502 1000 Mbit/s Power over Ethernet (PoE)

Specifications

57 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Maximum data transfer rate (2.4 GHz)	11 Mbit/s
Maximum data transfer rate (5 GHz)	54 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channel bandwidth	5850 MHz
Auto MDI/MDI-X	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Modulation	256-QAM
Fit AP mode features	802.11k & 802.11v smart roaming, Wireless distribution system (WDS)
Wi-Fi Multimedia (WMM)/(WME)	Yes
Wi-Fi roaming	Yes
WLAN channel features	WLAN channel management
VLAN support	Yes
Adaptive bandwidth management	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes

Security

Specification	Value
Security algorithms	EAP-TLS, PEAP, SNMP, SSH, SSID, SSL/TLS, TTLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast on/off
Auto Wireless Distribution System (WDS)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Access Control List (ACL)	Yes

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power consumption (typical)	8.93 W

Design

Specification	Value
International Protection (IP) code	IP55
LED indicators	Status, System

Antenna

Specification	Value
Antenna type	Internal
Antenna features	Integrated antenna
Antenna gain level (max)	14 dBi

Certificates

Specification	Value
Certification	FCC/ ISED, Subpart 15 B, Subpart E 15.407, Subpart C/J RSS-102/247 CE, EN 301 893, EN 301 489-1/-17, EN 50385, EN 55032, EN 55024/EN 55034, EN 60950-1/-22, IEC 60529, EN 62368-1, EC 1275

Weight & dimensions

Specification	Value
Width	100 mm
Depth	186 mm
Height	29 mm
Weight	504 g

Packaging data

Specification	Value
Package width	126 mm
Package depth	234 mm
Package height	103 mm
Package weight	720 g
Package type	Box

Packaging content

Specification	Value
Mounting kit	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-40 - 80 °C
Storage relative humidity (H-H)	0 - 90%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Master (outer) case width	273 mm
Master (outer) case length	535 mm
Master (outer) case height	257 mm
Master (outer) case gross weight	8.14 kg
Products per master (outer) case	10 pc(s)
