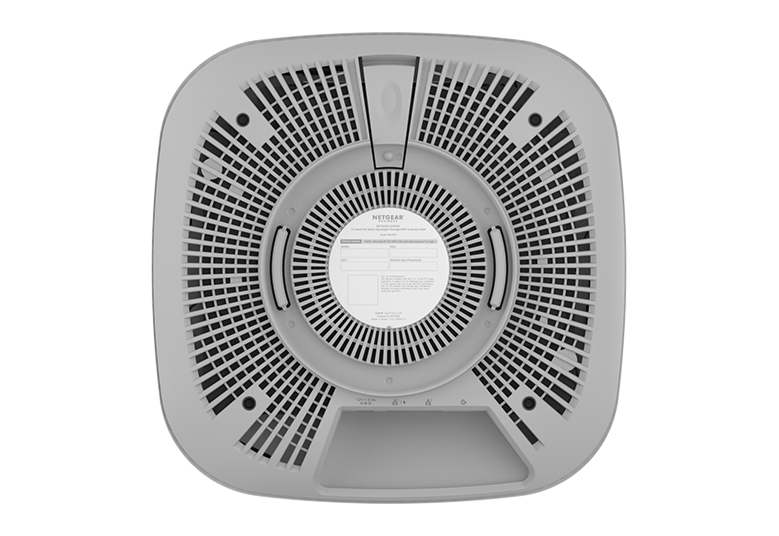

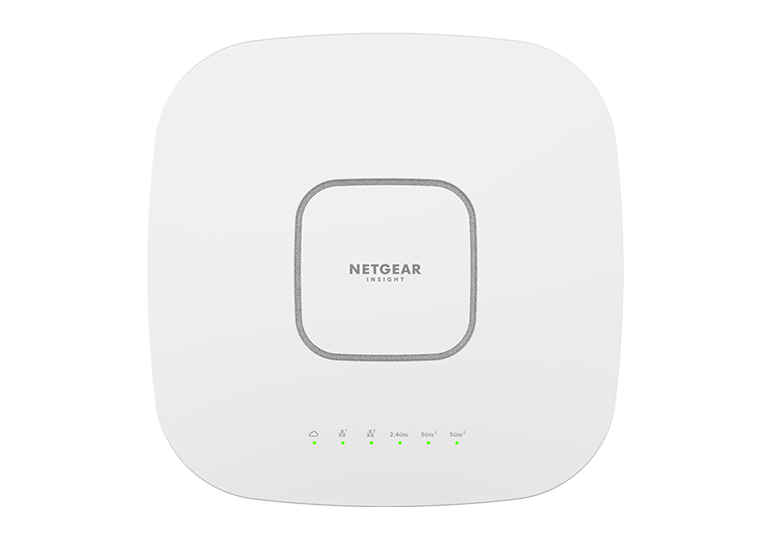

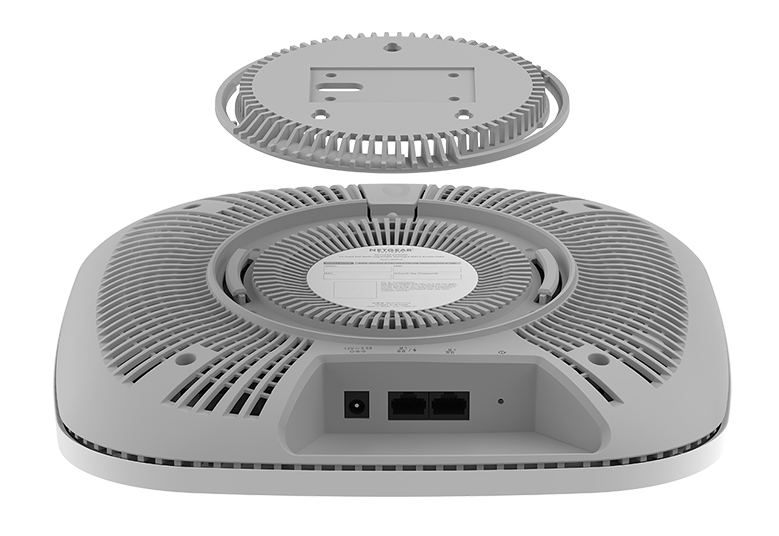

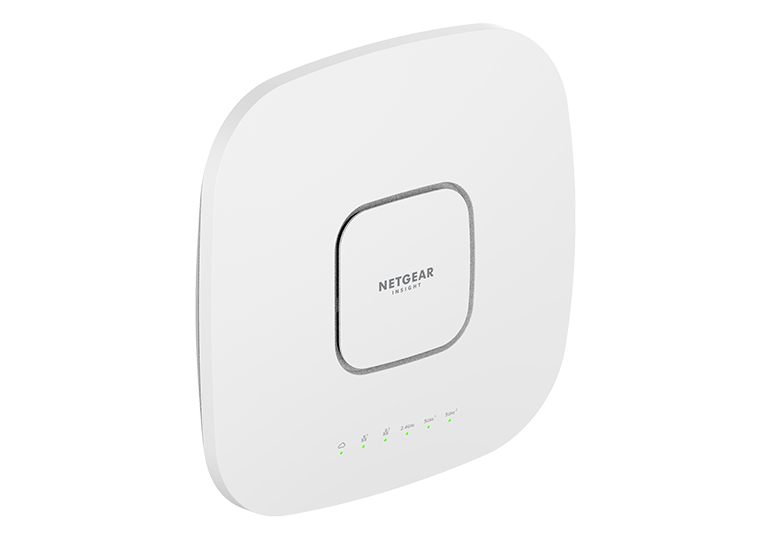

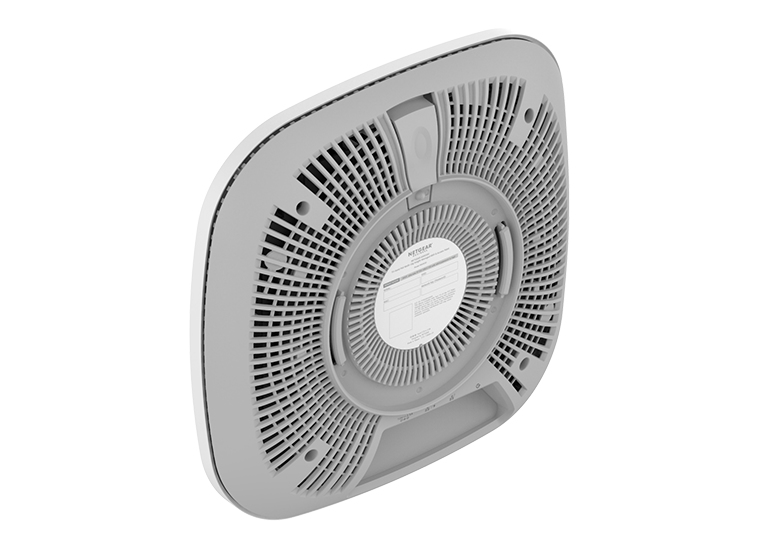

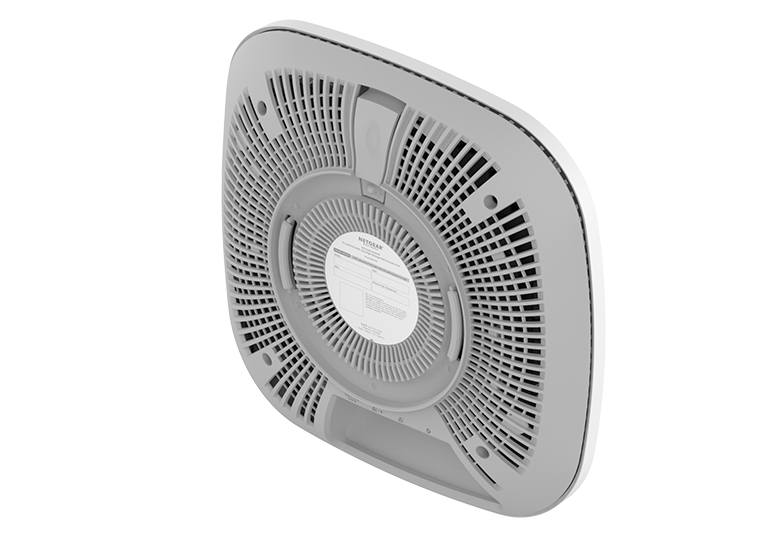

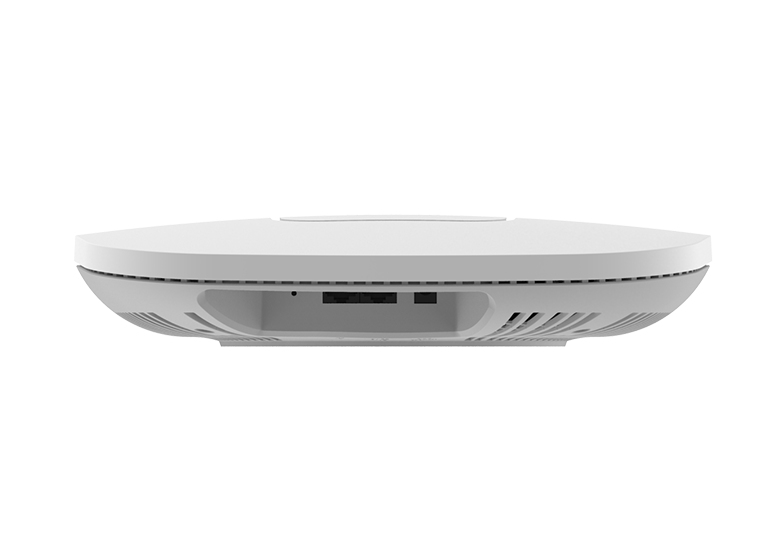

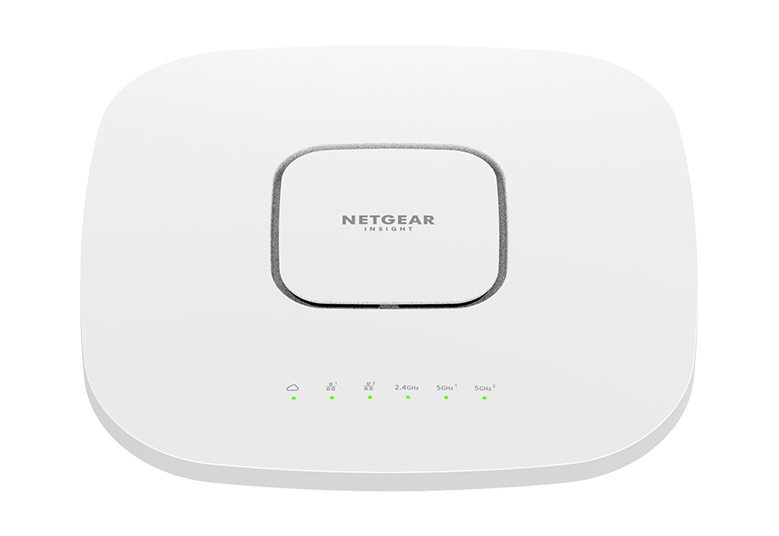

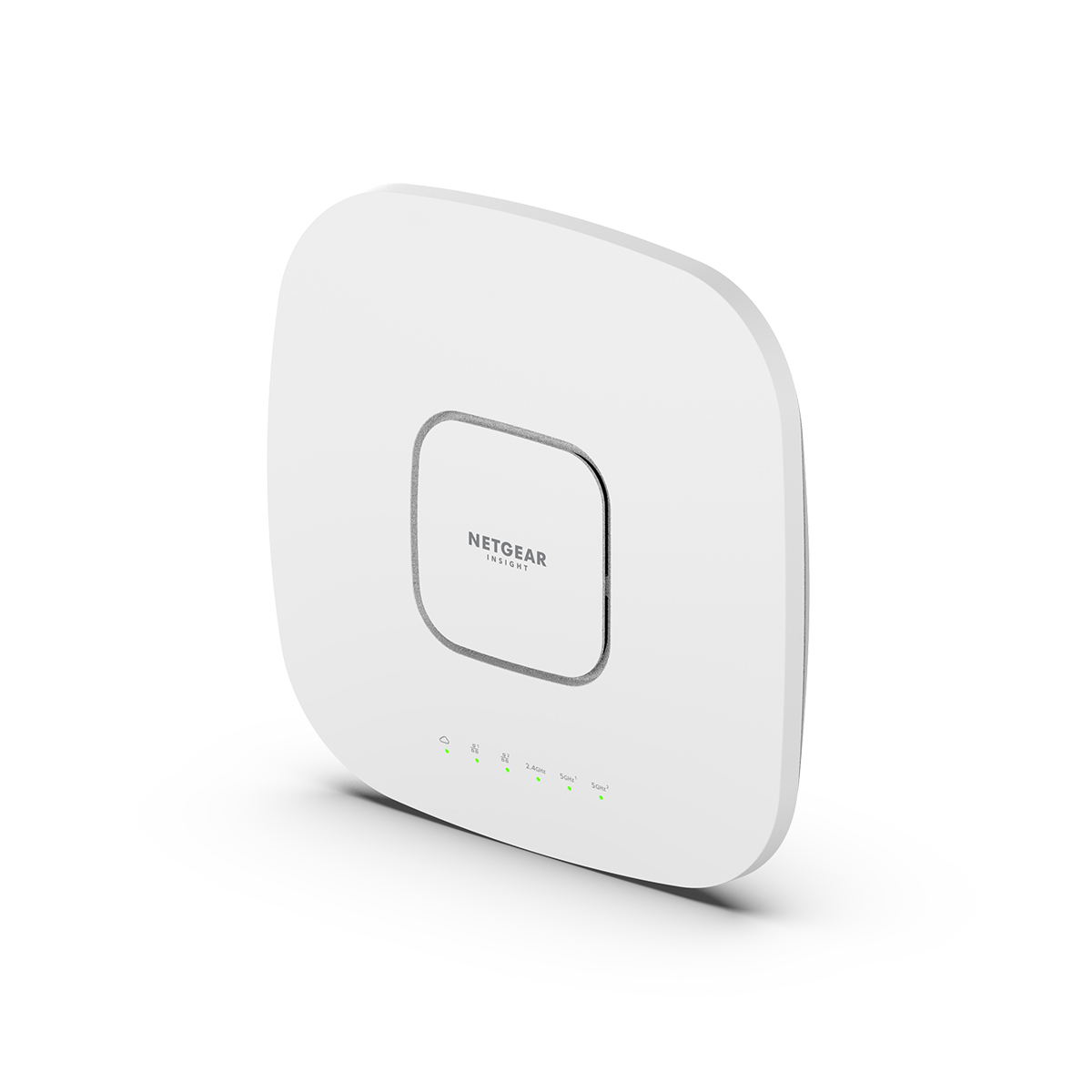

WAX630 6000 Mbit/s White Power over Ethernet (PoE)
Model WAX630Part no. WAX630-100EUSEAN 606449153965
42 specifications
- Speed6000 Mbit/s
- Weight956 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementCeiling, Wall
Overview
- Speed
- 6000 Mbit/s
- Weight
- 956 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Ceiling, Wall
- Brand
- NETGEAR
- Category
- Wireless Access Point
- Model
- WAX630
- Part number
- WAX630-100EUS
- EAN / UPC
- 606449153965, 10606449153962
- Also known as
- NETGEAR WAX630 6000 Mbit/s White Power over Ethernet (PoE)
Specifications
42 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 6000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at |
| Number of users | 200 user(s) |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDM, OFDMA |
| Modulation | OFDM |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast, SSID broadcast on/off |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 3.5 A |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 4.3 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 266.6 mm |
| Depth | 268.3 mm |
| Height | 55.5 mm |
| Weight | 956 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
