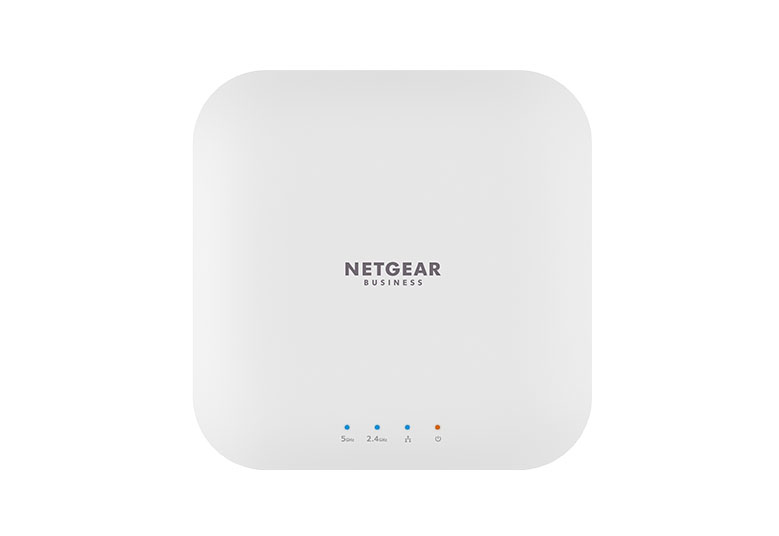

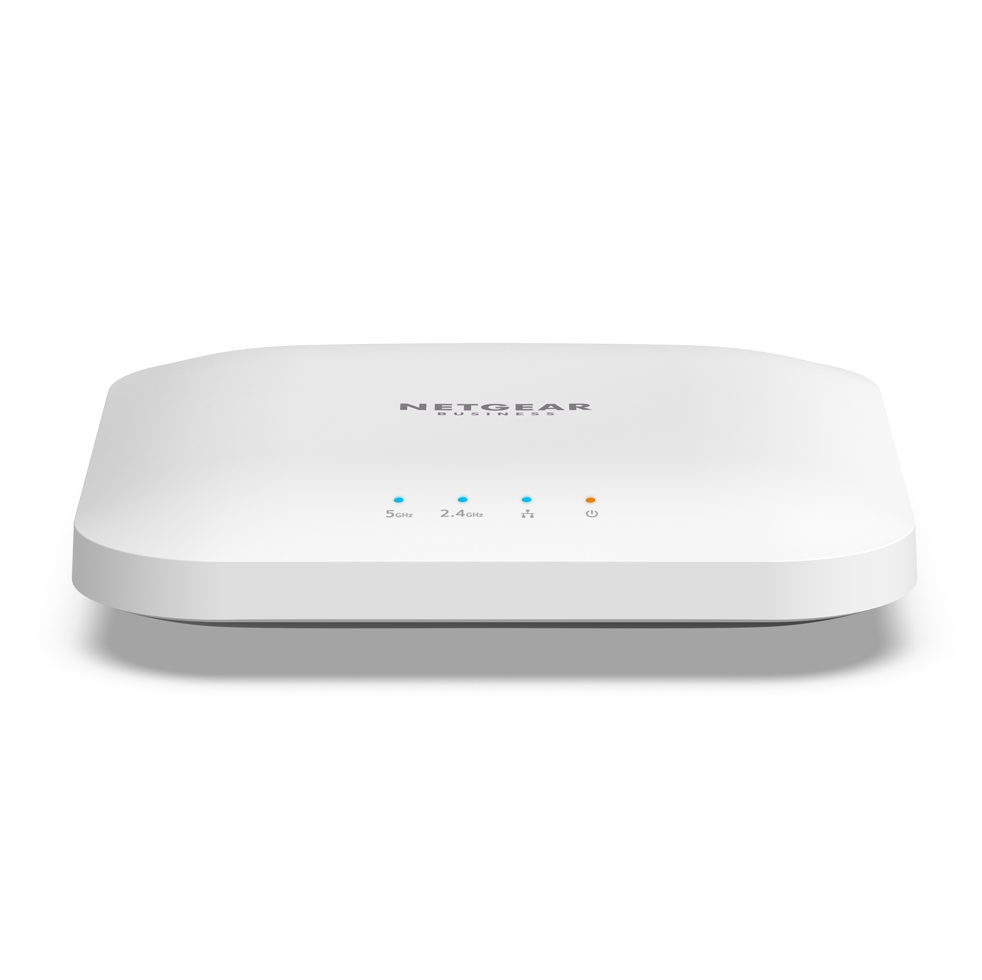

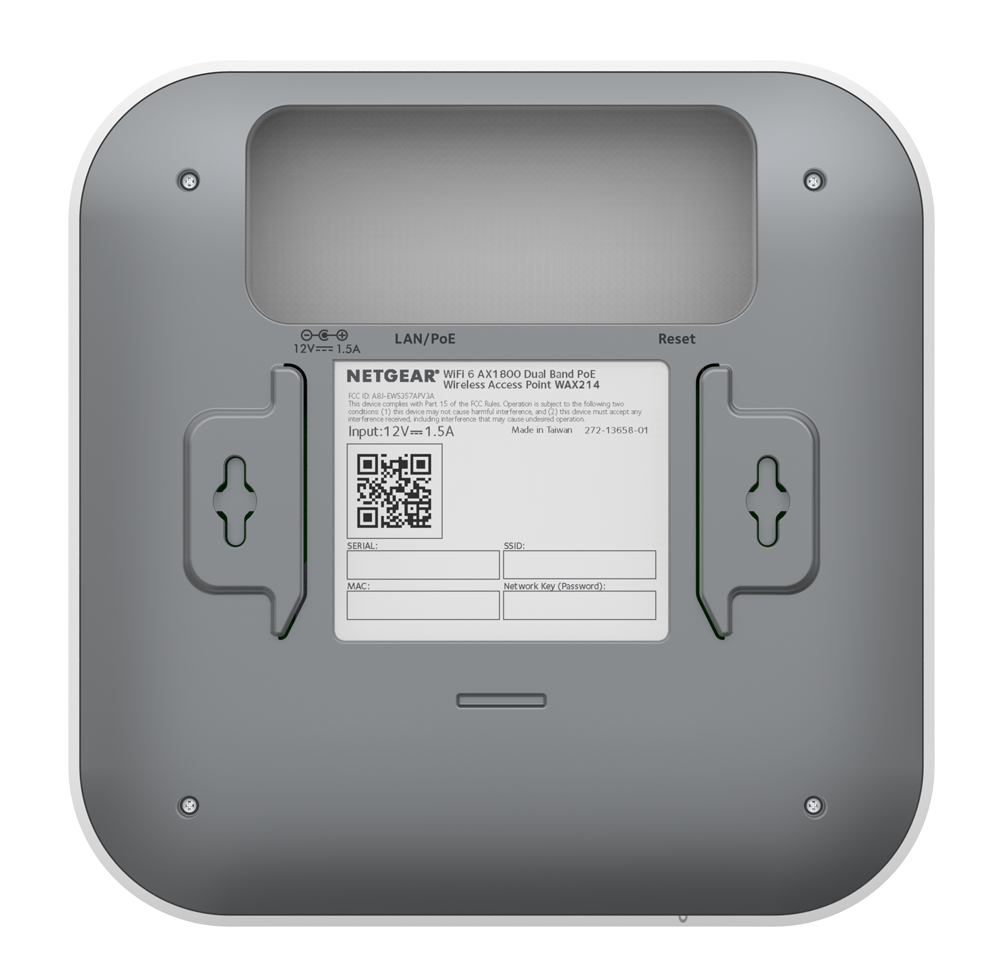

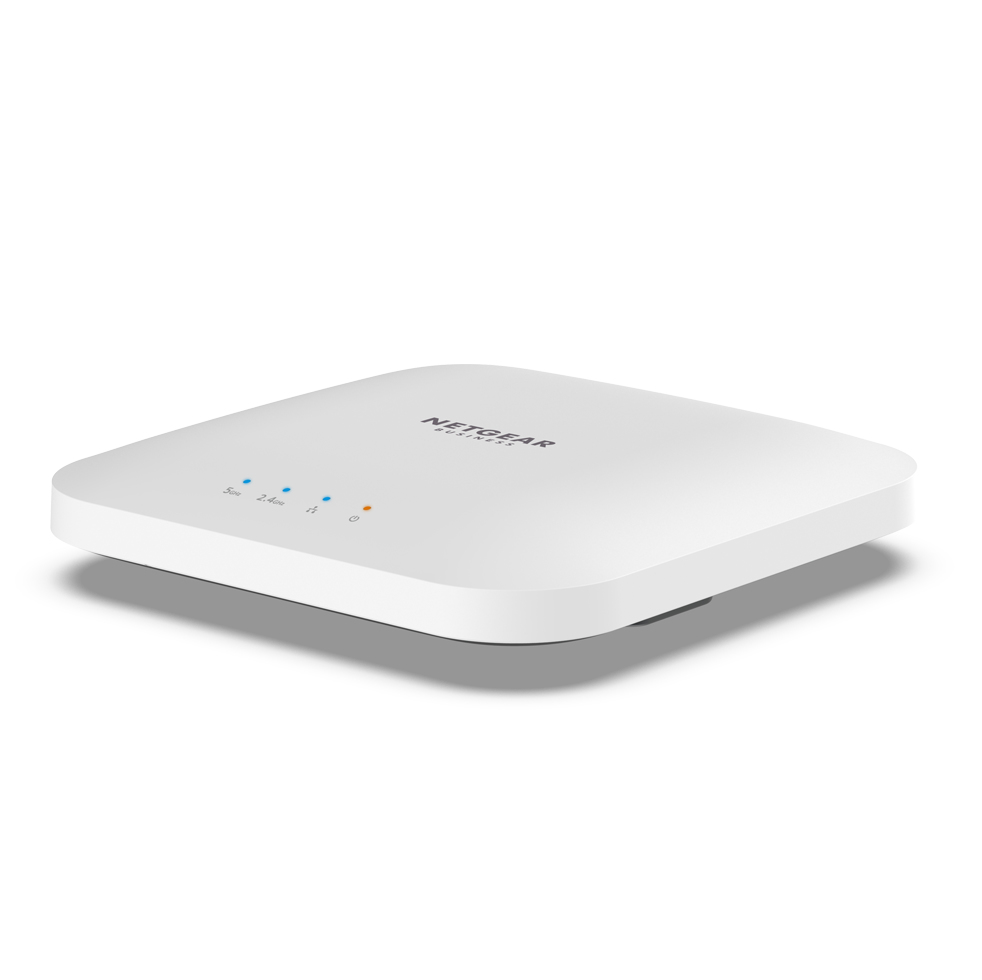

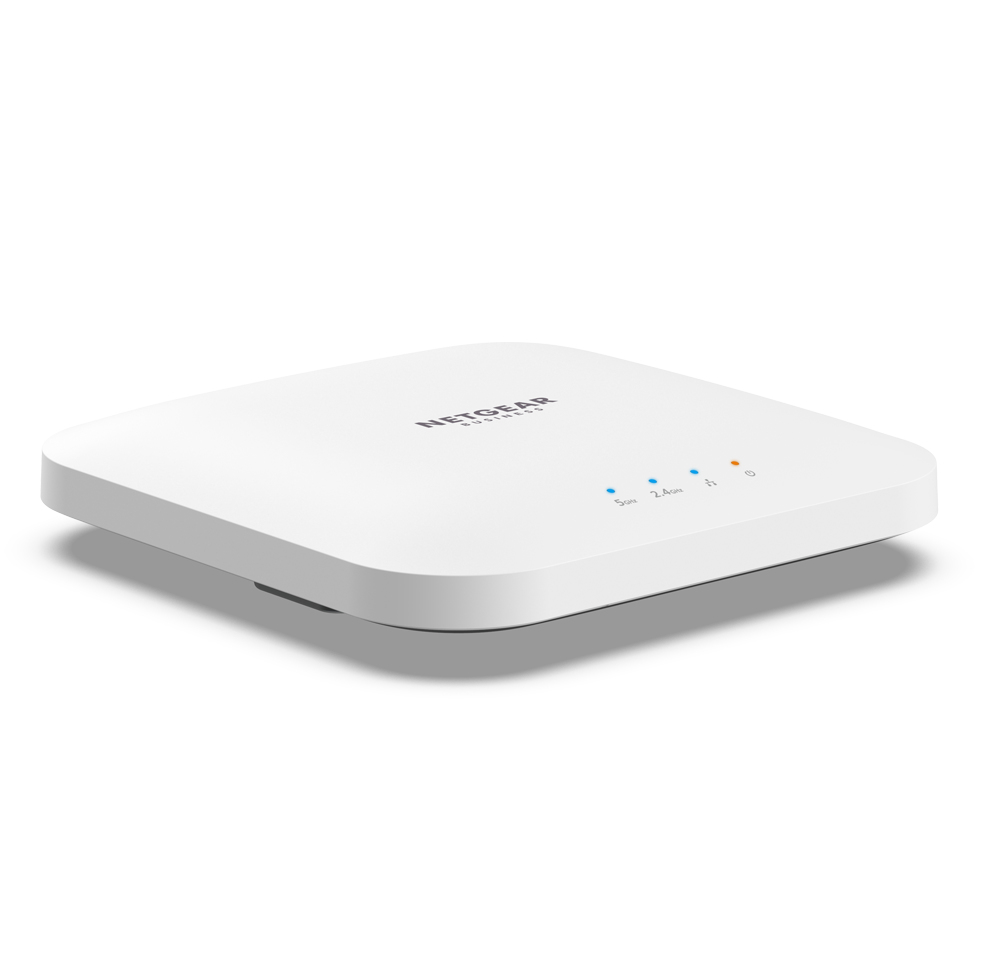

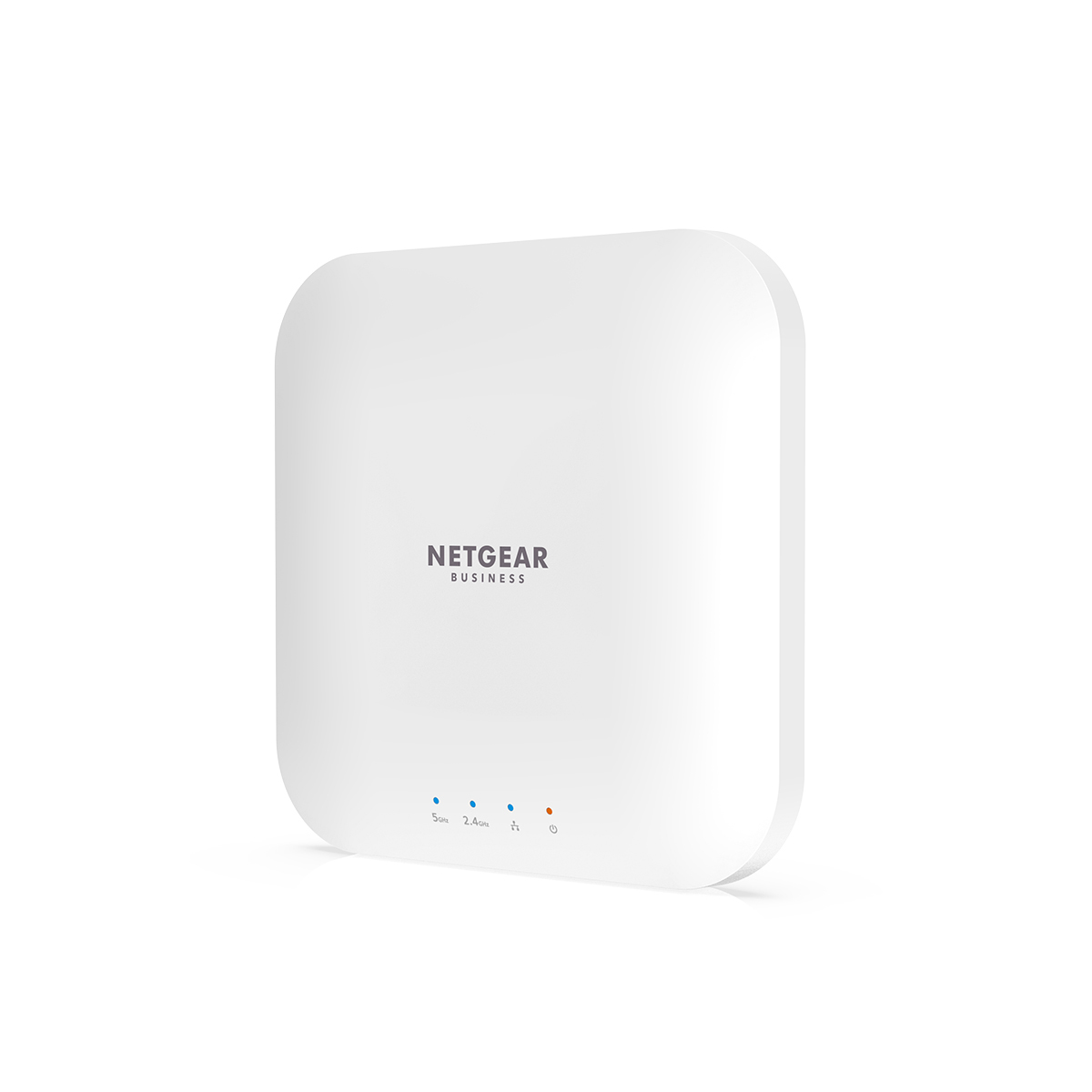

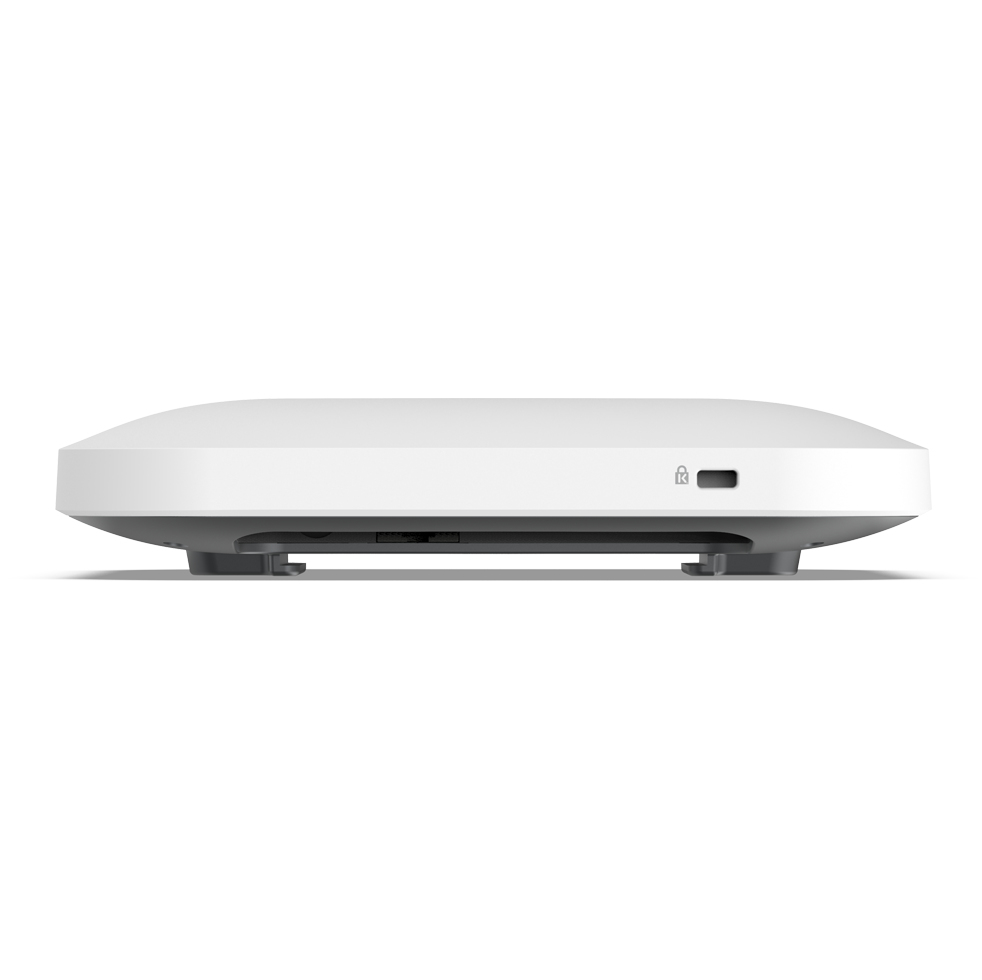

WAX214-100APS wireless access point 1773.5 Mbit/s White Power over Ethernet (PoE)
Model WAX214-100APS
43 specifications
- Speed1773.5 Mbit/s
- Weight380 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA2, WPA3
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 1773.5 Mbit/s
- Weight
- 380 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- NETGEAR
- Category
- Wireless Access Point
- Model
- WAX214-100APS
- Part number
- WAX214-100APS
- Also known as
- NETGEAR WAX214-100APS wireless access point 1773.5 Mbit/s White Power over Ethernet (PoE)
Specifications
43 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1773.5 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n |
| Number of users | 128 user(s) |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2, WPA3 |
| MAC address filtering | Yes |
| Number of SSID supported | 4 |
| Access Control List (ACL) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 1.5 A |
| Power supply | 18 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Reset button | Yes |
| LED indicators | LAN, Power, WLAN |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 4 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, EN60950, EN62368 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160.9 mm |
| Depth | 160.9 mm |
| Height | 33.3 mm |
| Weight | 380 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 40% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | 0 - 95 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
