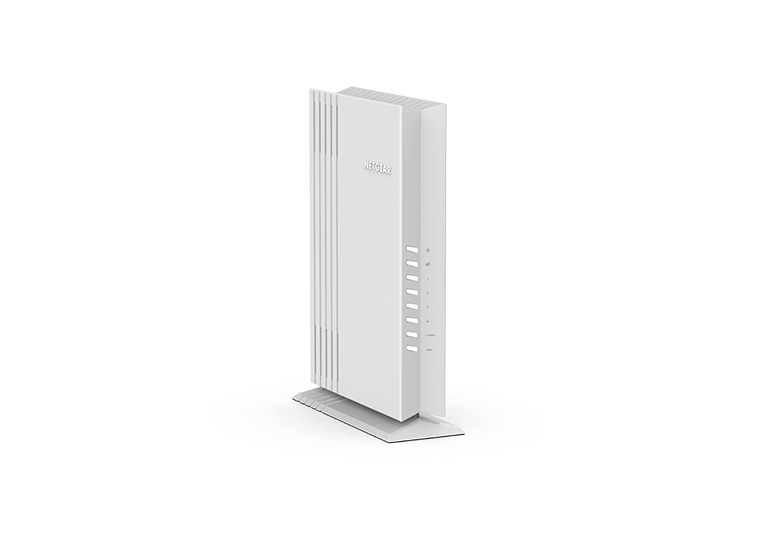

WAX206 wireless access point 3200 Mbit/s Grey
Model WAX206EAN 10606449155652
35 specifications
- Speed3200 Mbit/s
- Weight504 g
- ColourGrey
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports5
Overview
- Speed
- 3200 Mbit/s
- Weight
- 504 g
- Colour
- Grey
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 5
- Brand
- NETGEAR
- Category
- Wireless Access Point
- Model
- WAX206
- Part numbers
- WAX206, WAX206-100AUS
- EAN / UPC
- 10606449155652
- Also known as
- NETGEAR WAX206 wireless access point 3200 Mbit/s Grey
Specifications
35 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 3200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 800 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n |
| Number of users | 128 user(s) |
| Auto MDI/MDI-X | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Number of SSID supported | 3 |
| Access Control List (ACL) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
| Output voltage | 12 V |
| Output current | 2.5 A |
Design
| Specification | Value |
|---|---|
| Placement | Table |
| Product colour | Grey |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 3.5 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 63 mm |
| Height | 242 mm |
| Weight | 504 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
