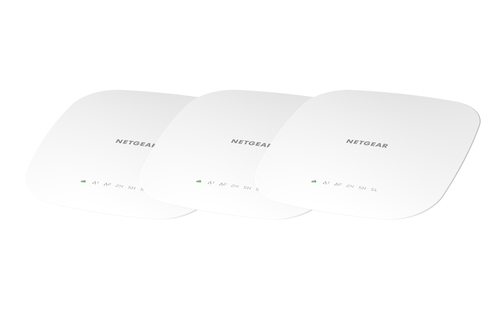

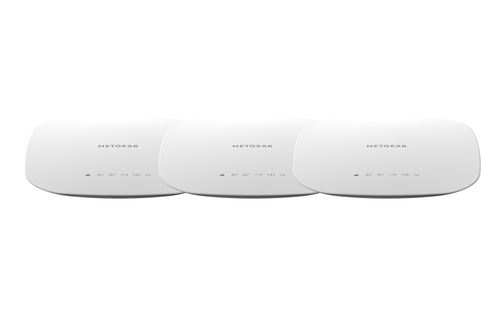

WAC540B03 1733 Mbit/s White Power over Ethernet (PoE)
Model WAC540B03Part no. WAC540B03-10000SEAN 606449128611
47 specifications
- Speed1733 Mbit/s
- Weight752 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports2
- PlacementCeiling, Wall
Overview
- Speed
- 1733 Mbit/s
- Weight
- 752 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Placement
- Ceiling, Wall
- Brand
- NETGEAR
- Category
- Wireless Access Point
- Model
- WAC540B03
- Part numbers
- WAC540B03-10000S, WAC540B03-100NAS, WAC540B03100NAS
- EAN / UPC
- 606449128611, 606449128604
- Also known as
- NETGEAR WAC540B03 1733 Mbit/s White Power over Ethernet (PoE)
Specifications
47 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1733 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Throughput data rate | 3000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at |
| Number of users | 600 user(s) |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 256-QAM |
| Fit AP mode features | 802.11k & 802.11v smart roaming, Wireless distribution system (WDS) |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi roaming | Yes |
| WLAN channel features | WLAN channel management |
| VLAN support | Yes |
| Adaptive bandwidth management | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | EAP-TLS, PEAP, SNMP, SSH, SSID, SSL/TLS, TTLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 2.5 A |
| Power consumption (typical) | 25.5 W |
Design
| Specification | Value |
|---|---|

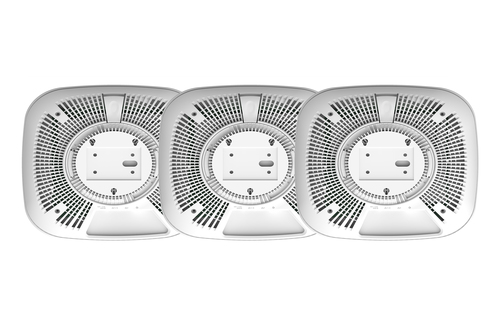

| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | LAN, Power, WLAN |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 4 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 241.5 mm |
| Depth | 241.5 mm |
| Height | 40.2 mm |
| Weight | 752 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 3 pc(s) |
| Mounting kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
