WAC540 1733 Mbit/s White Power over Ethernet (PoE)

Model WAC540Part no. WAC540-10000SEAN 606449128338

58 specifications

Speed1733 Mbit/s
Weight752 g
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports2
PlacementCeiling, Wall

See all specifications

Overview

Speed: 1733 Mbit/s
Weight: 752 g
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 2
Placement: Ceiling, Wall

Brand: NETGEAR
Category: Wireless Access Point
Model: WAC540
Part numbers: WAC540-10000S, WAC540-100NAS
EAN / UPC: 606449128338, 10606449128335, 606449128321
Also known as: NETGEAR WAC540 1733 Mbit/s White Power over Ethernet (PoE)

Specifications

58 specifications in 11 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1733 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Throughput data rate	3000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at
Number of users	600 user(s)
Auto MDI/MDI-X	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Modulation	256-QAM
Fit AP mode features	802.11k & 802.11v smart roaming, Wireless distribution system (WDS)
Wi-Fi Multimedia (WMM)/(WME)	Yes
Wi-Fi roaming	Yes
WLAN channel features	WLAN channel management
VLAN support	Yes
Adaptive bandwidth management	Yes
Load balancing	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes

Security

Specification	Value
Security algorithms	EAP-TLS, PEAP, SNMP, SSH, SSID, SSL/TLS, TTLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast on/off
Auto Wireless Distribution System (WDS)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Access Control List (ACL)	Yes

Management features

Specification	Value
Web-based management	Yes

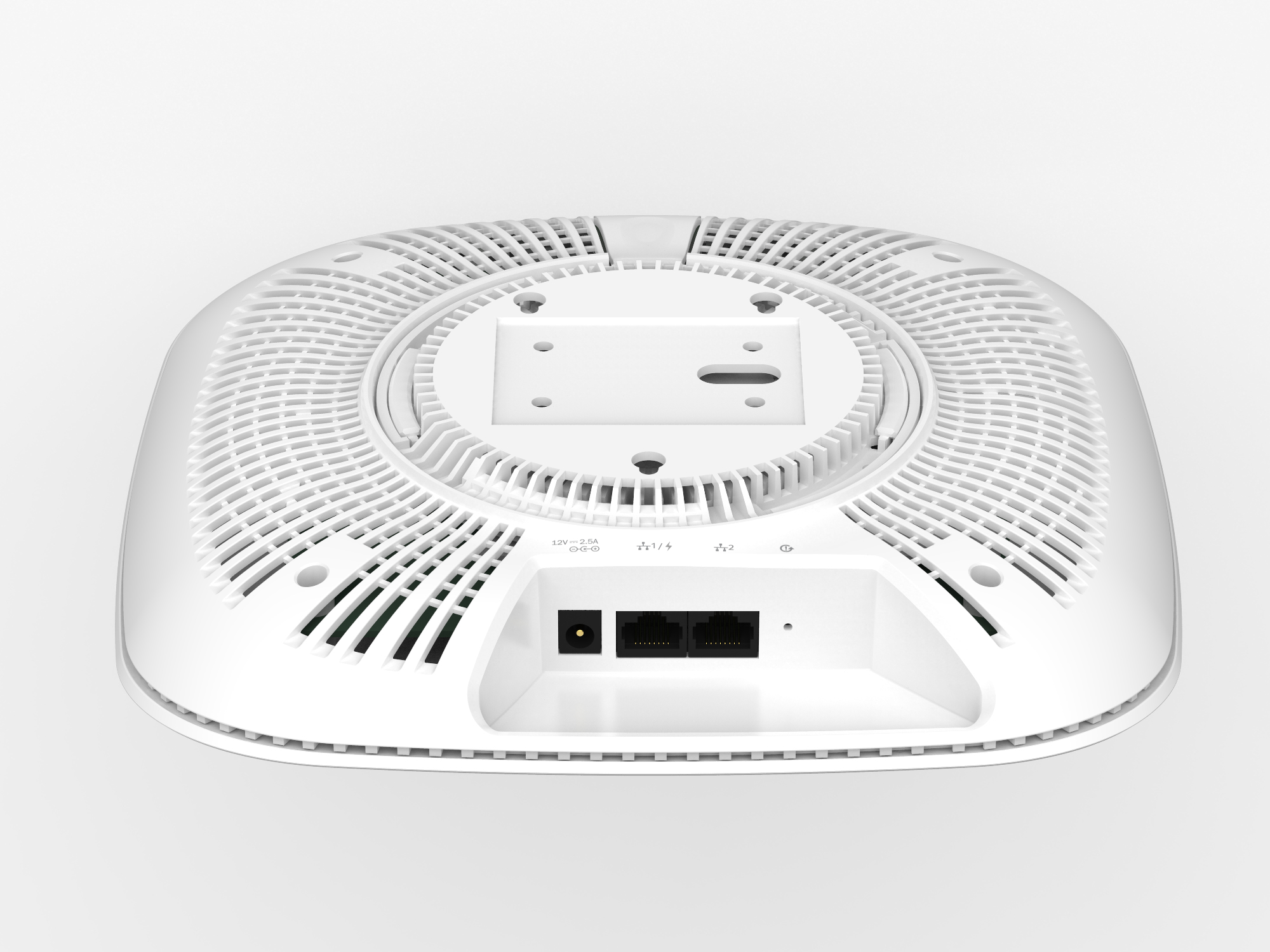

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	12 V
Input current	2.5 A
Power consumption (typical)	25.5 W
Power management	Yes

Design

Specification	Value
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	LAN, Power, WLAN
Internal	No

Antenna

Specification	Value
Antenna type	Internal
Antenna features	Integrated antenna
Antenna gain level (max)	4 dBi

Weight & dimensions

Specification	Value
Width	241.5 mm
Depth	241.5 mm
Height	40.2 mm
Weight	752 g

Packaging data

Specification	Value
Package width	296 mm
Package depth	292 mm
Package height	108 mm
Package weight	1.3 kg

Packaging content

Specification	Value
Mounting kit	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Master (outer) case width	320 mm
Master (outer) case length	600 mm
Master (outer) case height	278 mm
Master (outer) case gross weight	6.46 kg
Products per master (outer) case	4 pc(s)
