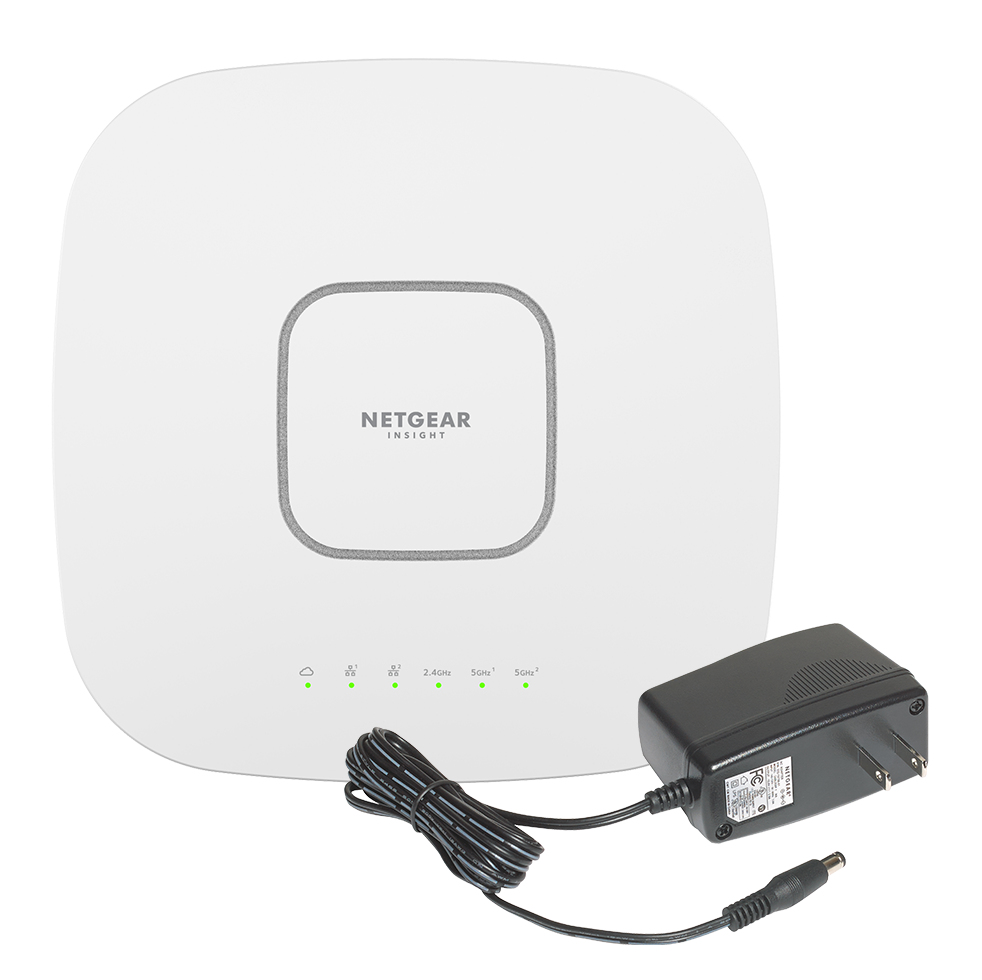

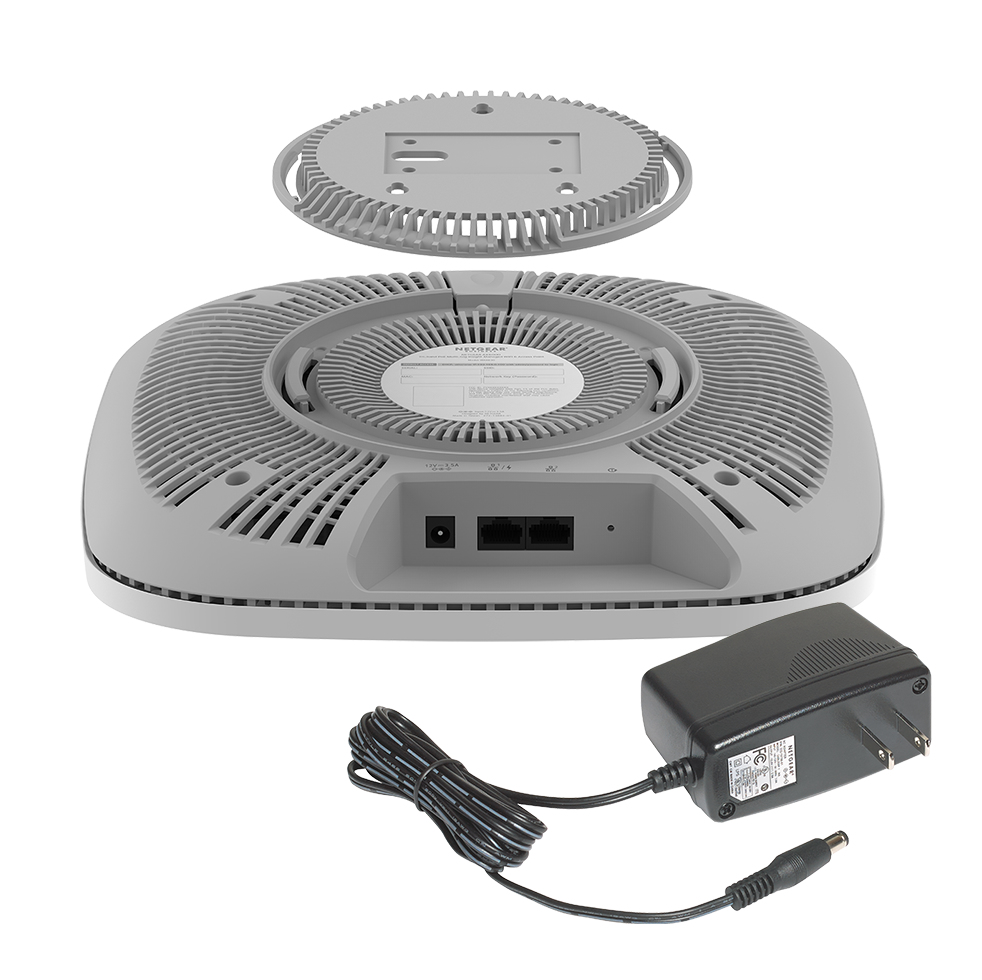

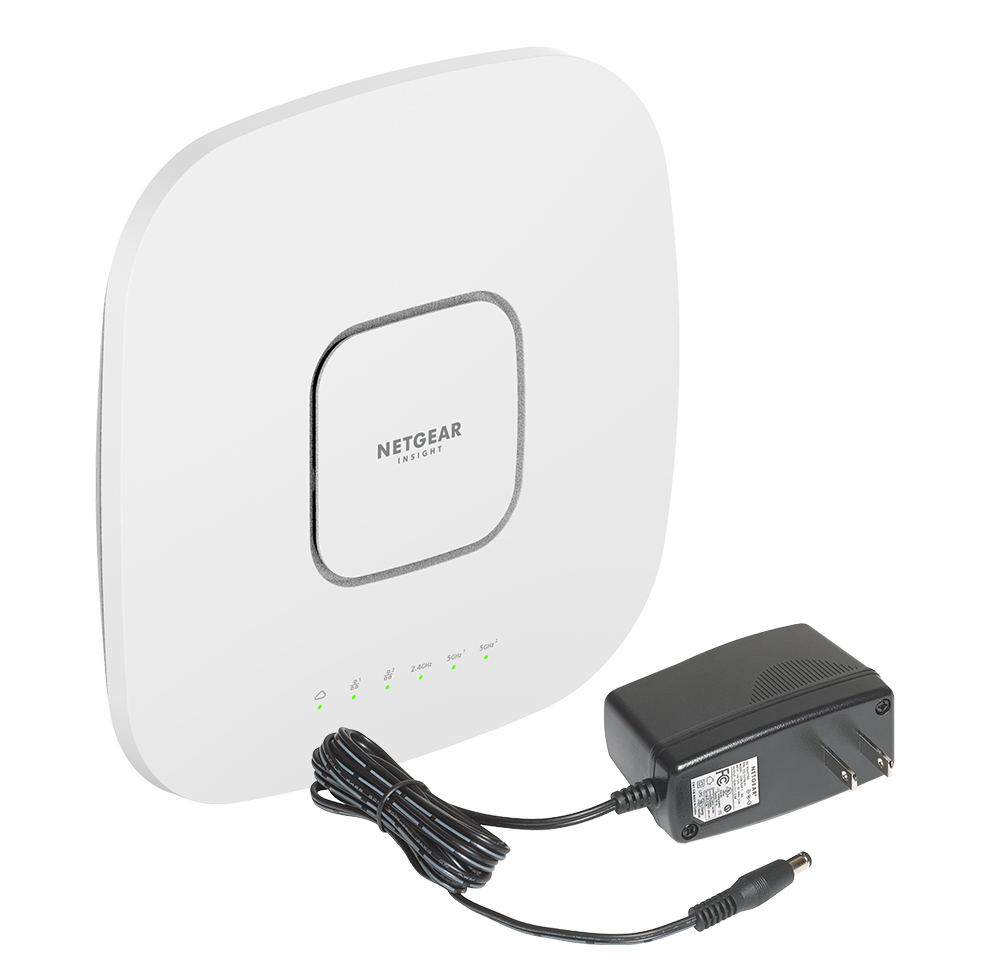

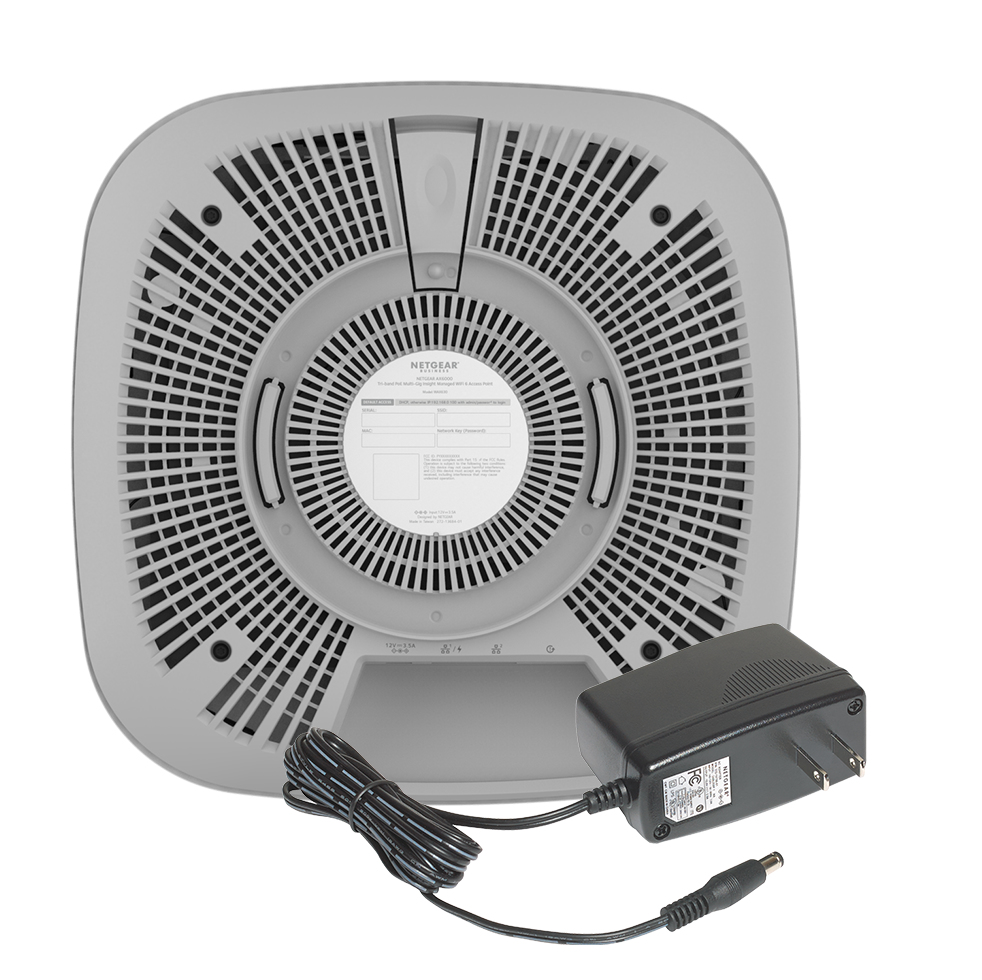

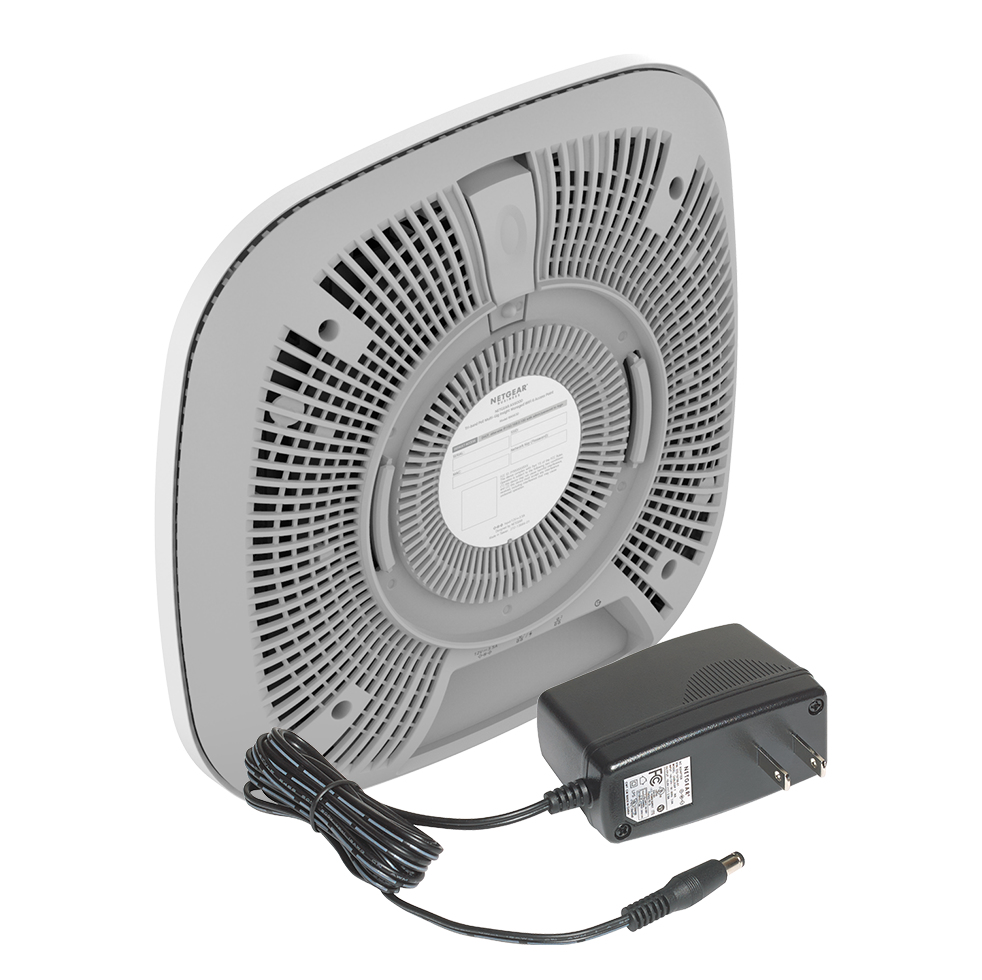

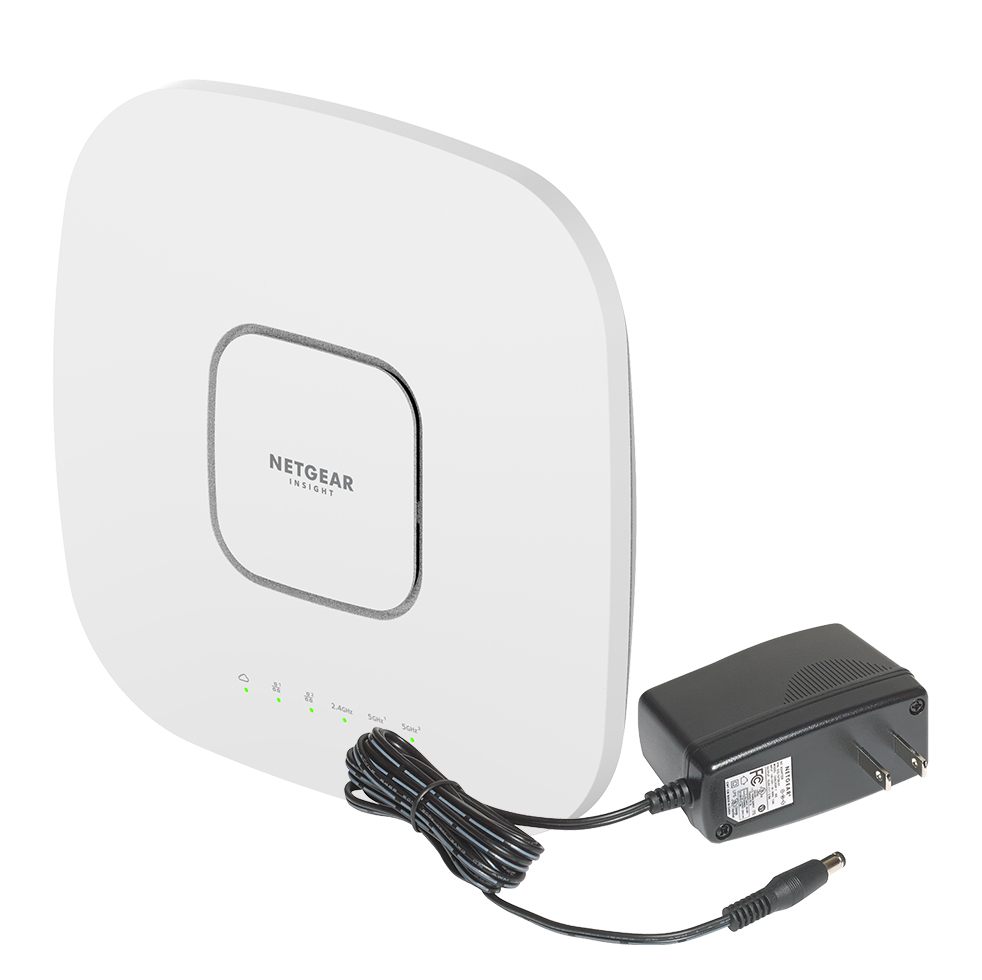

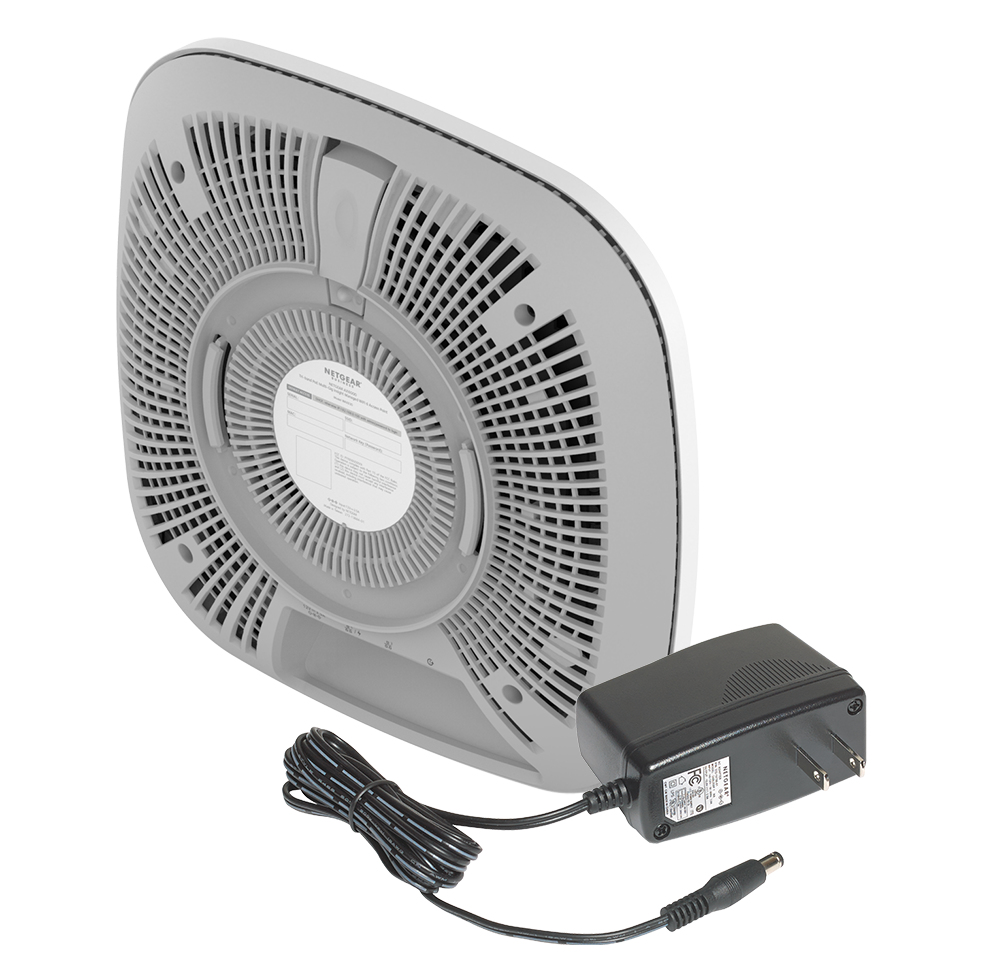

AX6000 White Power over Ethernet (PoE)
Model AX6000Part no. WAX630PA-100NASEAN 606449155259
31 specifications
- Weight956 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports1
- PlacementCeiling, Wall
Overview
- Weight
- 956 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Ceiling, Wall
- Brand
- NETGEAR
- Category
- Wireless Access Point
- Model
- AX6000
- Part number
- WAX630PA-100NAS
- EAN / UPC
- 606449155259
- Also known as
- NETGEAR AX6000 White Power over Ethernet (PoE)
Specifications
31 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Networking standards | IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Number of users | 600 user(s) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 3.5 A |
| Power consumption (typical) | 30.1 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Power, Status |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 3 |
| Antenna gain level (max) | 4.98 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 266.6 mm |
| Depth | 268.3 mm |
| Height | 55.5 mm |
| Weight | 956 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
