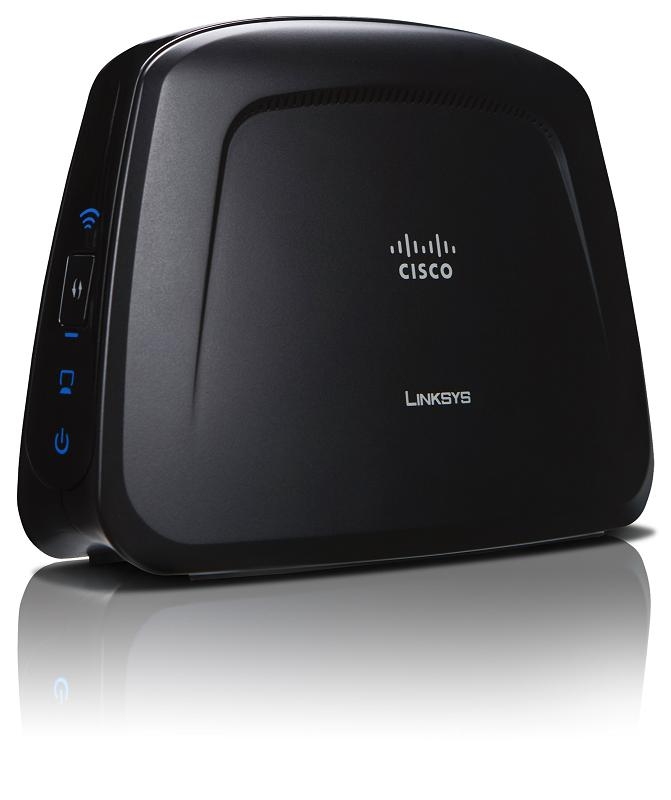

Linksys WAP610N 270 Mbit/s

WAP610N 270 Mbit/s

Model WAP610NPart no. WAP610N-EUEAN 745883588039

22 specifications

Speed270 Mbit/s
ConnectivityRJ45
Weight159 g
MAC address filteringYes
Power requirements12V, 1A
InternalNo

See all specifications

Overview

Speed: 270 Mbit/s
Connectivity: RJ45
Weight: 159 g
MAC address filtering: Yes
Power requirements: 12V, 1A
Internal: No

Brand: Linksys
Category: Wireless Access Point
Model: WAP610N
Part numbers: WAP610N-EU, WAP610N-EE, WAP610N, WAP610N-UK
EAN / UPC: 745883588039, 745883588022, 080050239780, 745883597017 +3 more
Also known as: Linksys WAP610N 270 Mbit/s

Specifications

22 specifications in 10 groups

Features

Specification	Value
Maximum data transfer rate	270 Mbit/s
Bandwidth	2.4 GHz
Modulation	16-QAM, 64-QAM, QPSK
Receiver sensitivity	802.11a: -72dBm @ 54Mbps, 802.11b: -85dBm @ 11Mbps, 802.11g: -73dBm @ 54Mbps, 802.11n: -70dBm @ MCS15/2.4GHz, -69dBm @ MCS15/5.0GHz

Security

Specification	Value
Security algorithms	128-bit WEP, 256-bit WEP, 64-bit WEP, WPA, WPA2
MAC address filtering	Yes

Ports & interfaces

Specification	Value
Interface	RJ45
Ethernet LAN (RJ-45) ports	1

Power

Specification	Value
Power requirements	12V, 1A

Design

Specification	Value
Internal	No

Performance

Specification	Value
Compatible operating systems	Windows XP, Vista, Vista 64-bit
Minimum system requirements	Internet Explorer 6, Firefox 2

Certificates

Specification	Value
Certification	FCC, UL/cUL, ICES-003, RSS210, CE

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	145 x 106 x 52 mm
Weight	159 g

Other features

Specification	Value
Compliance industry standards	IEEE 802.3u, 802.11g, 802.11b, 802.11a, draft 802.11n
Transmit power range	802.11a: 15dBm @ 54Mbps; 802.11b: 18dBm @ 11Mbps; 802.11g: 16dBm @ 54Mbps; 802.11n: 12dBm @ 130Mbps (HT20), 270Mbps (HT40)
Connectivity LEDs	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 85%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 90%
