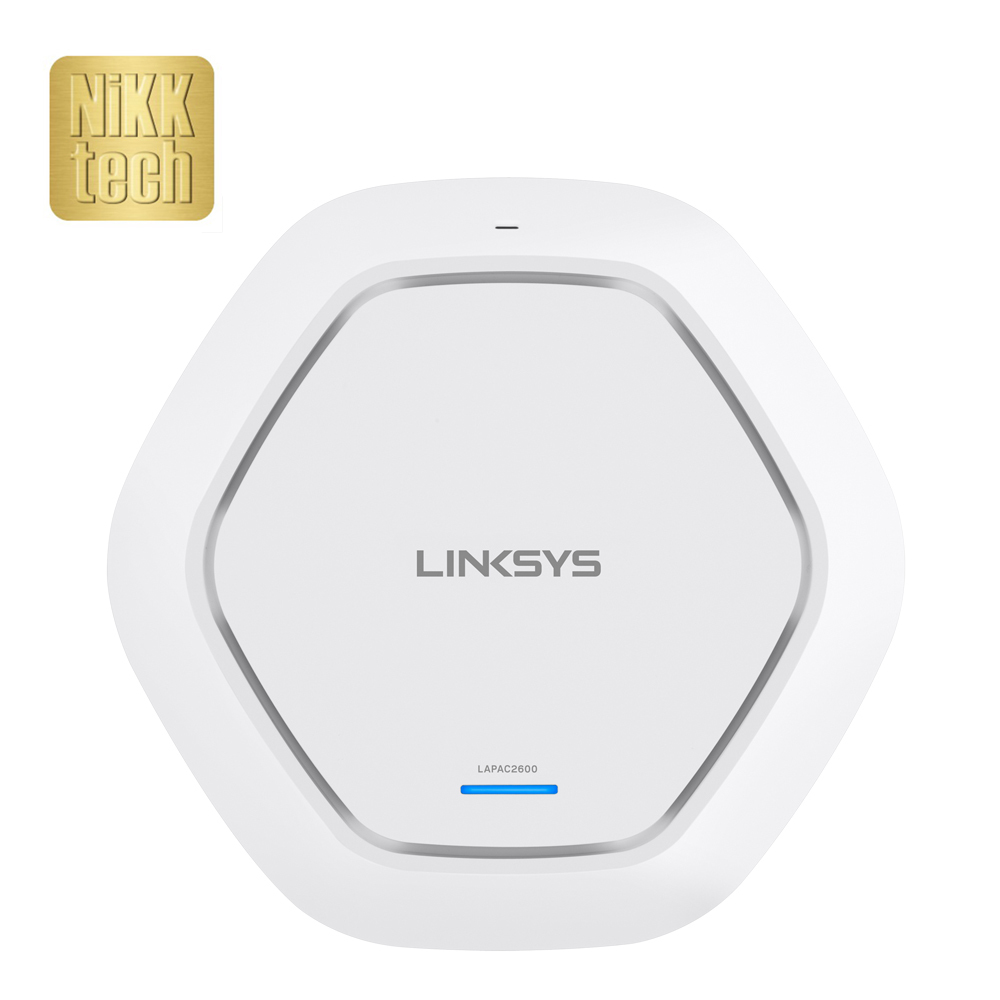

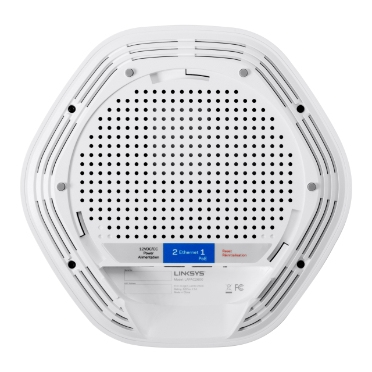

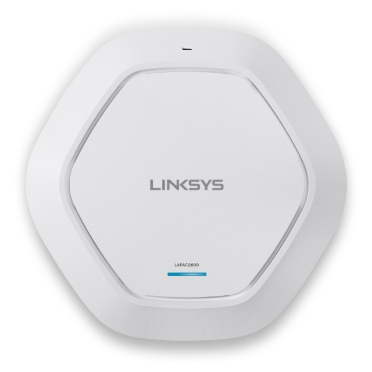

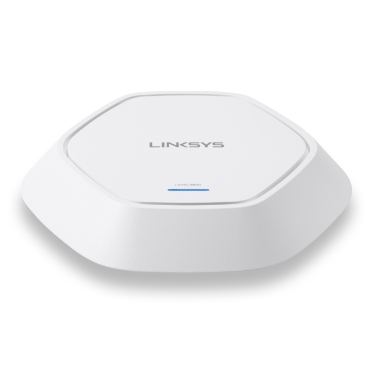

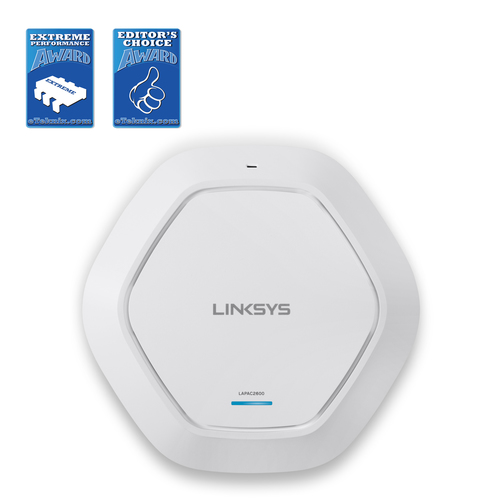

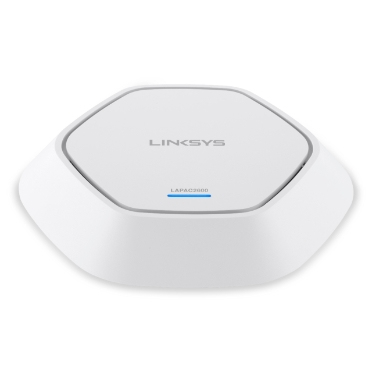

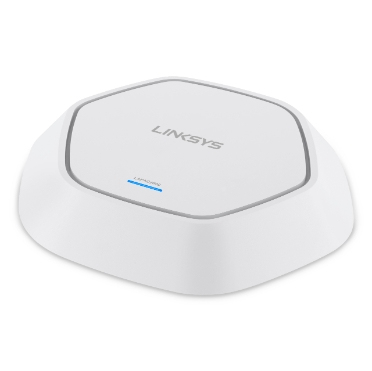

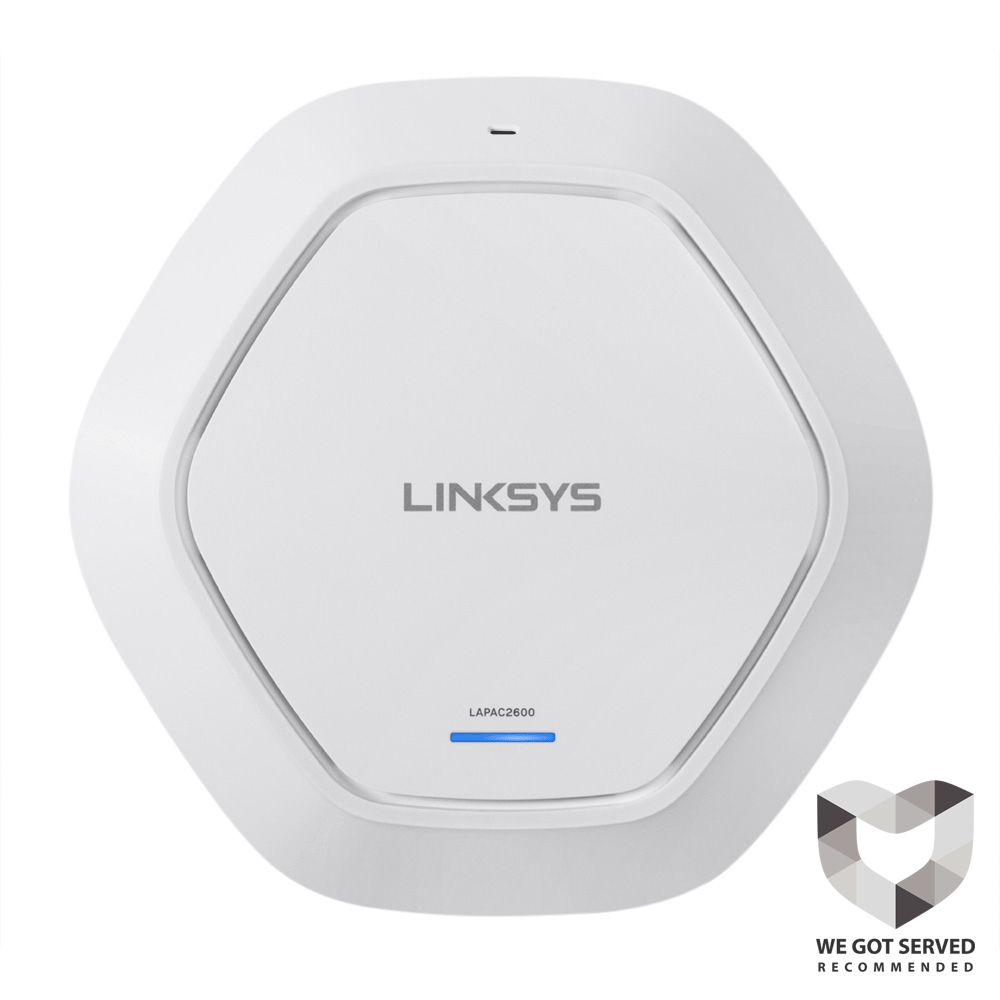

Linksys Business Wireless AC2600 Pro Dual-Band MU-MIMO Access Point (LAPAC2600)

Linksys Business Wireless AC2600 Pro Dual-Band MU-MIMO Access Point (LAPAC2600)

Model LAPAC2600Part no. LAPAC2600-EUEAN 745883710096

53 specifications

Speed2533 Mbit/s
Weight848 g
ColourWhite
2.4 GHzYes
Service Set Identifier (SSID) featuresHidden SSID
Management protocolsSNMP, HTTP/HTTPS

See all specifications

Overview

Speed: 2533 Mbit/s
Weight: 848 g
Colour: White
2.4 GHz: Yes
Service Set Identifier (SSID) features: Hidden SSID
Management protocols: SNMP, HTTP/HTTPS

Brand: Linksys
Category: Wireless Access Point
Model: LAPAC2600
Part numbers: LAPAC2600-EU, LAPAC2600
EAN / UPC: 745883710096, 4260184666287, 745883709250
Also known as: Linksys Business Wireless AC2600 Pro Dual-Band MU-MIMO Access Point (LAPAC2600)

Specifications

53 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	2533 Mbit/s
Wi-Fi data rate (max)	1733 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.745 - 5.825 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3at
Channels quantity	13 channels
Fit AP mode features	Wireless distribution system (WDS)
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	SSID-based VLAN assignment
Number of VLAN IDs	17
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Receiver sensitivity	802.11b 11Mbps: -85dBm 802.11a/g 54Mbps: -73dBm 802.11n HT20 MCS7: -67dBm 802.11n HT40 MCS7: -65dBm 802.11n HT40 MCS7: -65dBm

Security

Specification	Value
Security algorithms	802.1x RADIUS, HTTPS, SNMP, WPA, WPA2
Service Set Identifier (SSID) features	Hidden SSID
Number of SSID supported	16
IGMP snooping	Yes
Auto Wireless Distribution System (WDS)	Yes

Protocols

Specification	Value
Management protocols	SNMP, HTTP/HTTPS

Management features

Specification	Value
Syslog	Yes
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Output voltage	12 V
Output current	2.5 A
Power consumption (max)	25 W

Design

Specification	Value
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Reset button	Yes
LED indicators	System
Internal	No

Antenna

Specification	Value
Antenna features	Integrated antenna

Certificates

Specification	Value
Certification	FCC: 47 CFR FCC Part 15, Subpart B, Class B; 47 CFR FCC Part 15, Subpart C; 47 CFR FCC Part 15, Subpart E CE: EN55022, Class B; EN61000-3-2; EN61000-3-3; 55024; EN 301 489-1 / EN 301 489-17, Class B; EN 300 328; EN 301 893; EN 62311; EN 50385

Weight & dimensions

Specification	Value
Width	237 mm
Depth	243 mm
Height	43.7 mm
Weight	848 g

Packaging data

Specification	Value
CD manual	Yes

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	LAN (RJ-45)
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 85%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	10 - 90%
