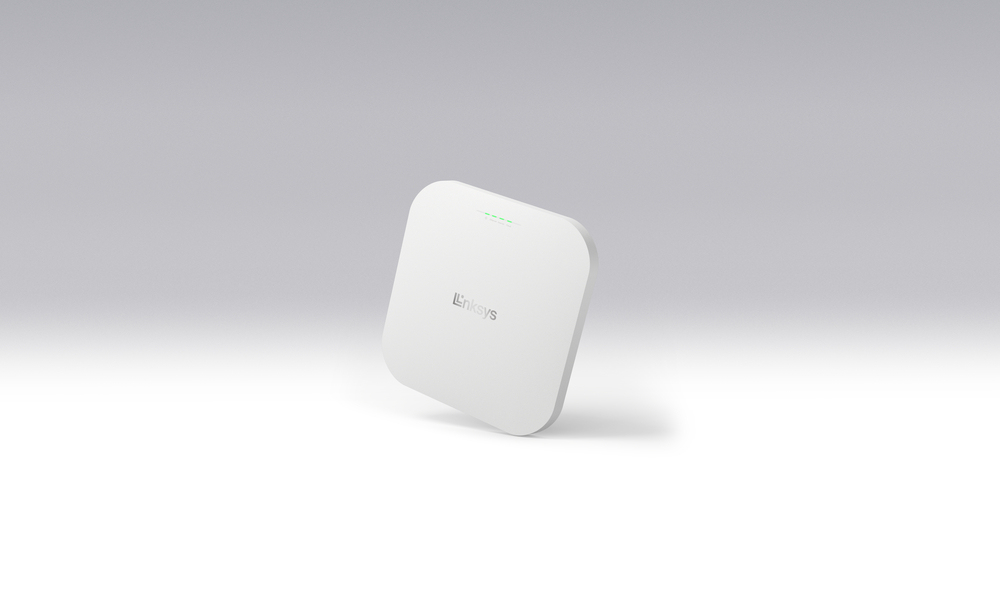

Indoor WiFi 6 Cloud Managed MU‑MIMO dual‑band wireless access point AX3600
Model AX3600Part no. LAPAX3600CEAN 745883824793
50 specifications
- Speed3600 Mbit/s
- Weight920 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- 3600 Mbit/s
- Weight
- 920 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Linksys
- Category
- Wireless Access Point
- Model
- AX3600
- Part number
- LAPAX3600C
- EAN / UPC
- 745883824793, 4260184672363
- Also known as
- Linksys Indoor WiFi 6 Cloud Managed MU‑MIMO dual‑band wireless access point AX3600
Specifications
50 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3600 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wireless isolation | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2 |
| Number of SSID supported | 8 |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Input current | 2.5 A |
| Output voltage | 12 V |
| Power consumption (max) | 24 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 8 |
| Antenna gain level (max) | 5.19 dBi |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE Class B |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200.9 mm |
| Depth | 200.9 mm |
| Height | 42.9 mm |
| Weight | 920 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 326.9 mm |
| Package depth | 213.1 mm |
| Package height | 46 mm |
| Package weight | 1.11 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Country of origin | Taiwan |
