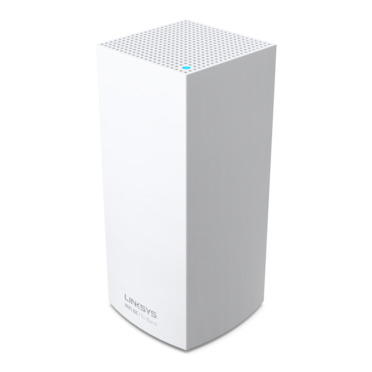

Atlas Max 6E
Model Atlas Max 6EPart no. MX8501EAN 745883817283
32 specifications
- Memory1024 MB
- Speed8400 Mbit/s
- Weight1.47 kg
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA2, WPA3
Overview
- Memory
- 1024 MB
- Speed
- 8400 Mbit/s
- Weight
- 1.47 kg
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA2, WPA3
- Brand
- Linksys
- Category
- Wireless Access Point
- Model
- Atlas Max 6E
- Part number
- MX8501
- EAN / UPC
- 745883817283
- Also known as
- Linksys Atlas Max 6E 8400 Mbit/s White
Specifications
32 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 8400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1147 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Fit AP mode features | Mesh networking |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2, WPA3 |

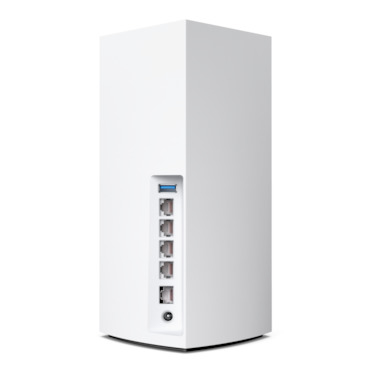

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 4 A |
Design
| Specification | Value |
|---|---|
| Placement | Table |
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Qualcomm |
| Processor frequency | 2200 MHz |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 113 mm |
| Depth | 113 mm |
| Height | 243.1 mm |
| Weight | 1.47 kg |
