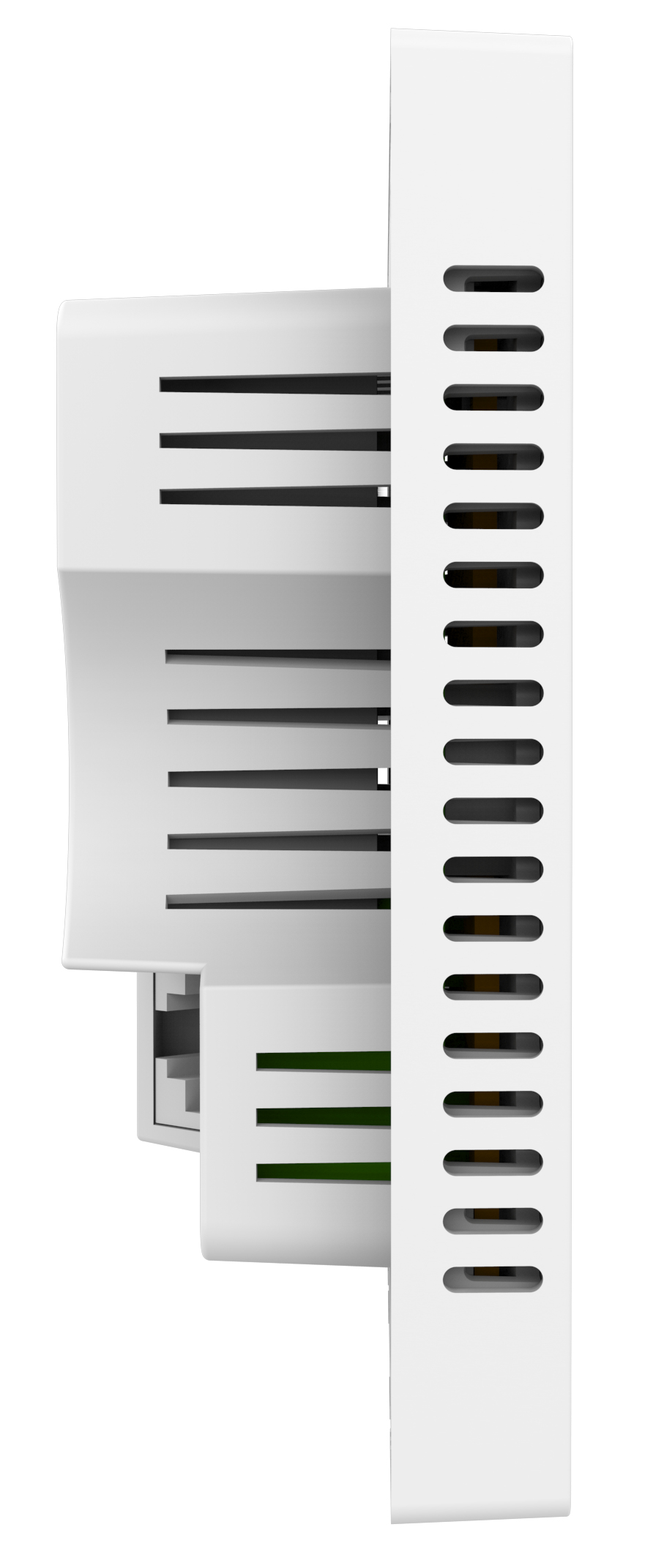

LevelOne AX1800 Dual Band Wi-Fi

AX1800 Dual Band Wi-Fi

6 In-Wall PoE Wireless Access Point

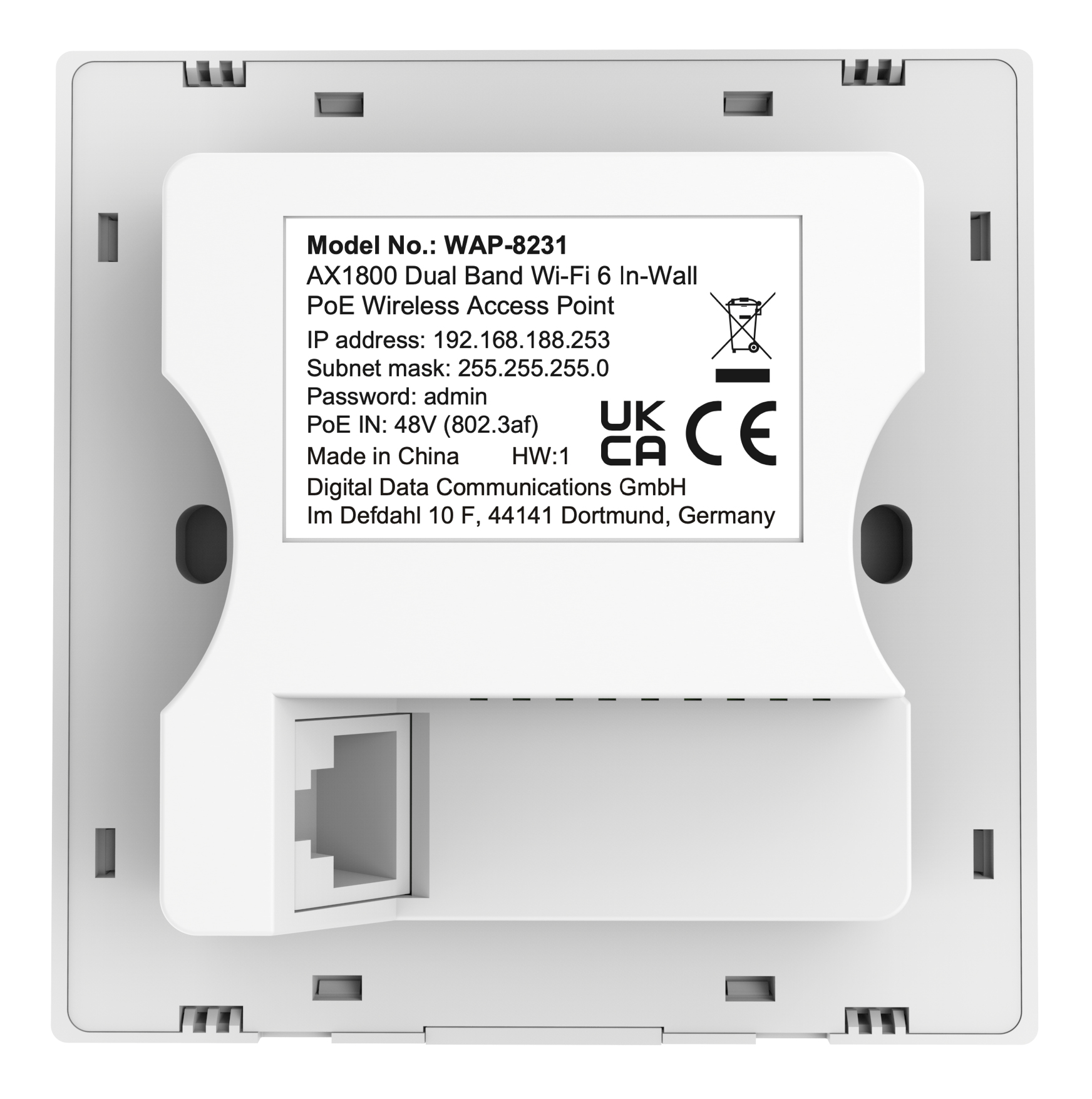

Model WAP-8231EAN 846359060377

59 specifications

Memory128 MB
Speed1800 Mbit/s
Weight138 g
ColourWhite
2.4 GHzYes
Security algorithmsWPA2-AES, WPA3

See all specifications

Overview

Memory: 128 MB
Speed: 1800 Mbit/s
Weight: 138 g
Colour: White
2.4 GHz: Yes
Security algorithms: WPA2-AES, WPA3

Brand: LevelOne
Category: Wireless Access Point
Model: WAP-8231
Part number: WAP-8231
EAN / UPC: 846359060377, 4015867235690
Also known as: LevelOne AX1800 Dual Band Wi-Fi 6 In-Wall PoE Wireless Access Point

Specifications

59 specifications in 16 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.412 -2.484, 5.18 - 5.825 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Cabling technology	10/100/1000Base-T(X)
Channels quantity	165 channels
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Operating modes	AP Mode

Security

Specification	Value
Security algorithms	WPA2-AES, WPA3
Number of SSID supported	8

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB connector type	USB Type-C
WAN connection	Ethernet (RJ-45)

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power consumption (typical)	14 W

Design

Specification	Value
Placement	In-wall
Product colour	White
LED indicators	Wi-Fi

Antenna

Specification	Value
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	3 dBi

Performance

Specification	Value
Flash memory	16 MB
Internal memory	128 MB

Certificates

Specification	Value
Compliance certificates	CE, RoHS, UKCA

Technical details

Specification	Value
Master (outer) cases per pallet (air)	10 pc(s)
Pallet gross length	80 cm
Pallet gross width	120 cm
Pallet height (air)	189 cm

Weight & dimensions

Specification	Value
Width	87 mm
Depth	86 mm
Height	31.5 mm
Weight	138 g

Packaging data

Specification	Value
Package width	120 mm
Package depth	110 mm
Package height	65 mm
Package weight	240 g
Package type	Box

Packaging content

Specification	Value
Mounting kit	Yes
Interface adapter included	USB Type-C male - RJ-45 female
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%

Sustainability

Specification	Value
Sustainability compliance	Yes

Logistics data

Specification	Value
Country of origin	China
Master (outer) case width	515 mm
Master (outer) case length	348 mm
Master (outer) case height	580 mm
Master (outer) case gross weight	25 kg
Products per master (outer) case	100 pc(s)
