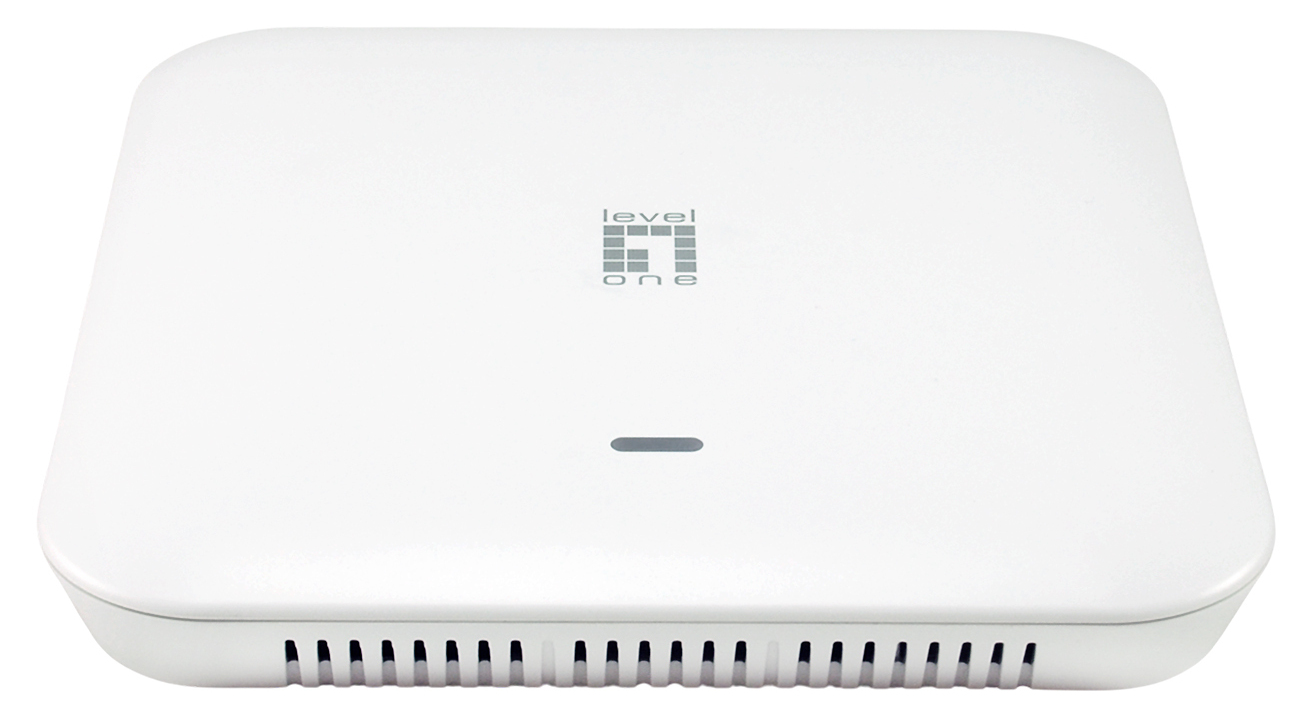

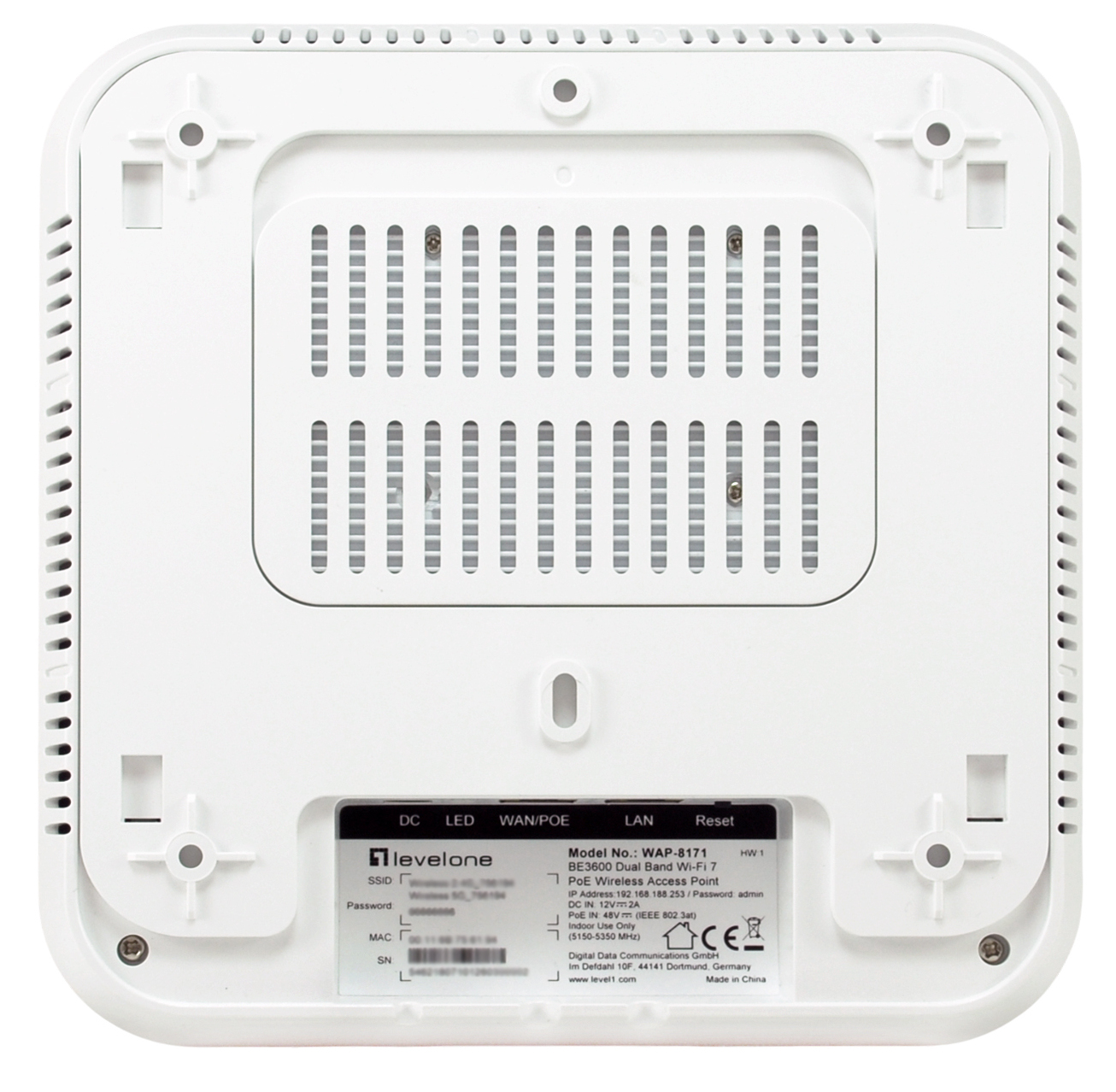

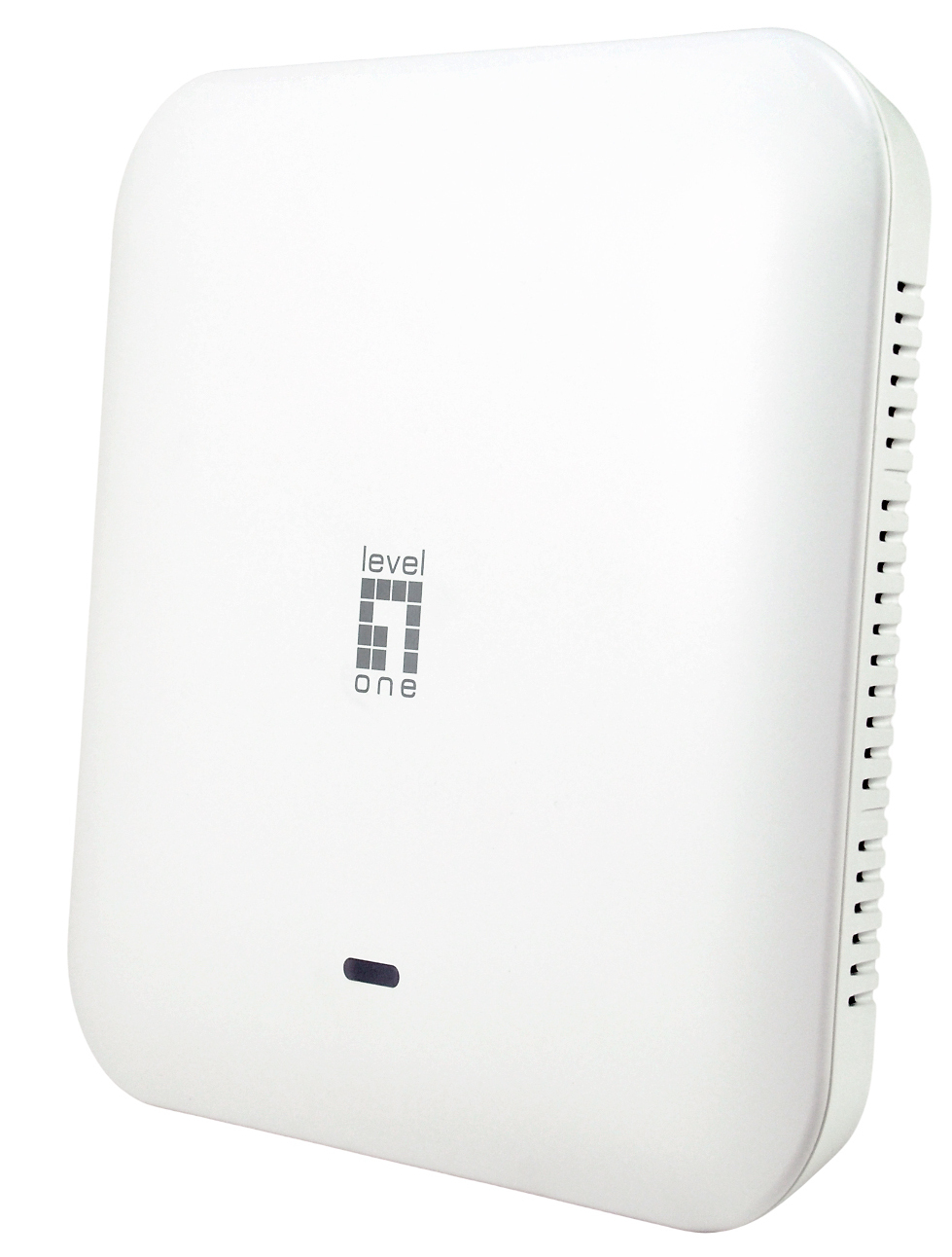

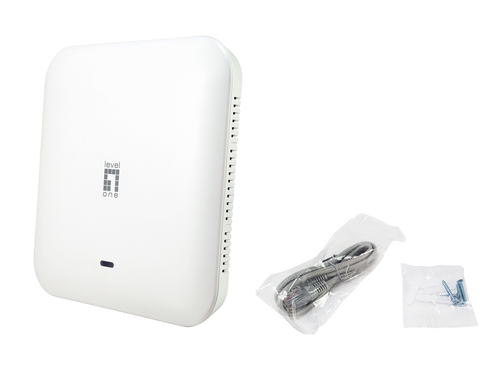

WAP-8171 BE3600 Dual Band Wi-Fi 7 PoE Wireless Access Point, 1 × 2.5GbE WAN Port, Ceiling Mount, Controller Managed
Model WAP-8171Part no. 54621807101EAN 4015867244326
20 specifications
- Speed3570 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA3
- Ethernet LAN (RJ-45) ports1
- PlacementCeiling
Overview
- Speed
- 3570 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA3
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Ceiling
- Brand
- LevelOne
- Category
- Wireless Access Point
- Model
- WAP-8171
- Part number
- 54621807101
- EAN / UPC
- 4015867244326
- Also known as
- LevelOne WAP-8171 BE3600 Dual Band Wi-Fi 7 PoE Wireless Access Point, 1 × 2.5GbE WAN Port, Ceiling Mount, Controller Managed
Specifications
20 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3570 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2882 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11be, IEEE 802.3at, IEEE 802.3, IEEE 802.3u |
| Cabling technology | 10/100/1000/2500Base-T |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA3 |

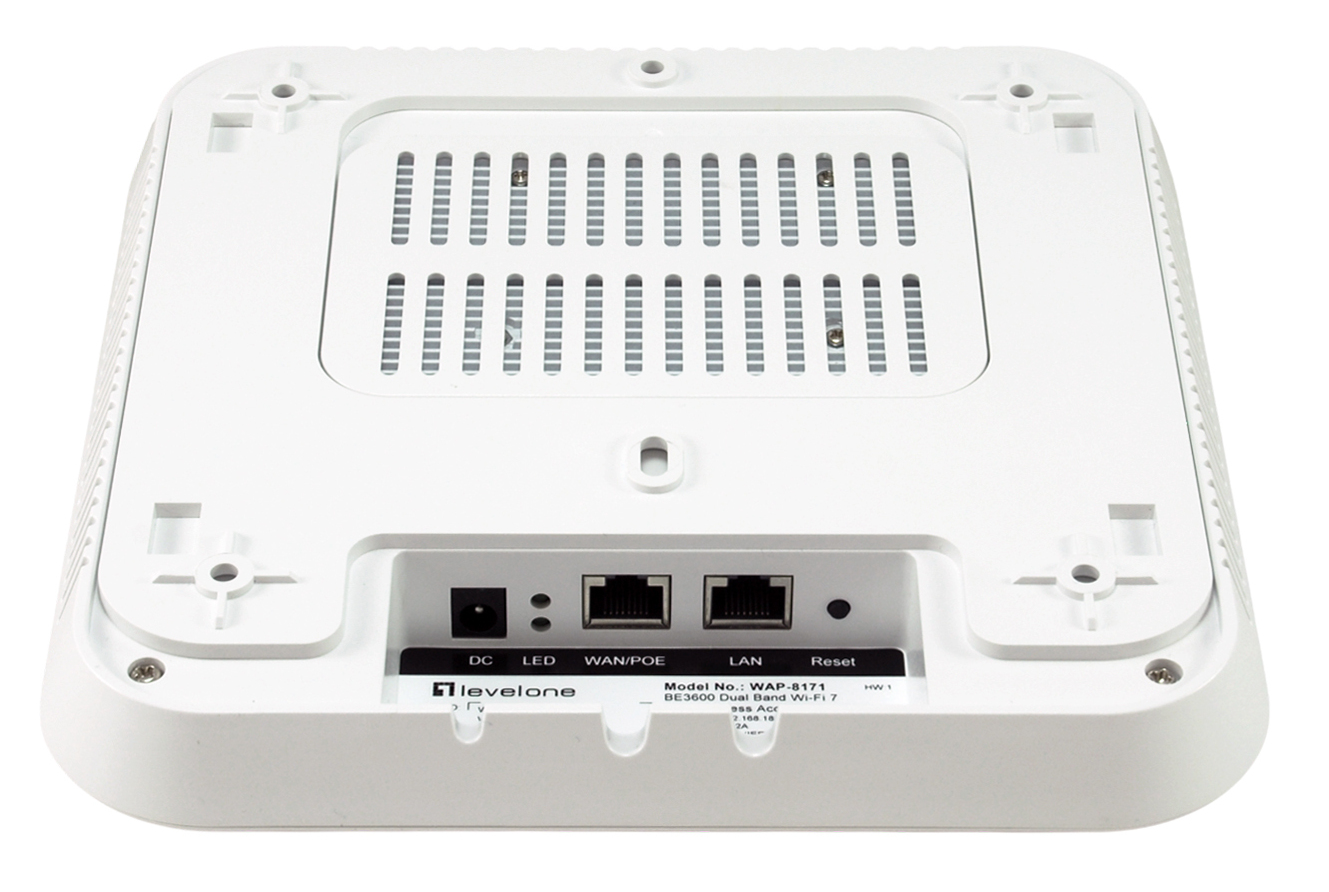

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling |
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
Similar products
All wireless access points
Cudy
AC1300 1167 Mbit/s White Power over Ethernet (PoE)
Model AC1300
- Memory
- 128 MB
- Speed
- 1167 Mbit/s
- Weight
- 395.6 g
SilverNet

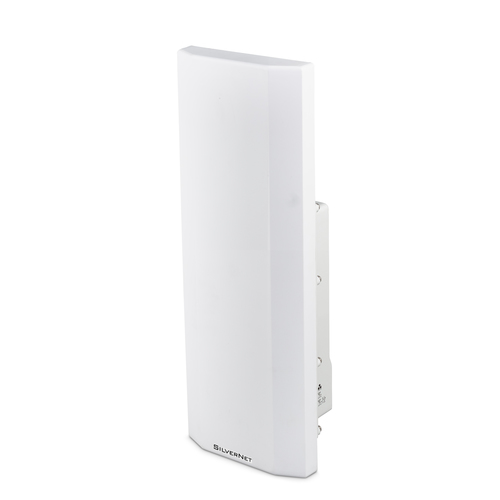

AP1200 1167 Mbit/s White Power over Ethernet (PoE)
Model AP1200
- Speed
- 1167 Mbit/s
- Weight
- 1.6 kg
- Colour
- White
SilverNet
AP1200-360 1167 Mbit/s White Power over Ethernet (PoE)
Model AP1200-360
- Speed
- 1167 Mbit/s
- Weight
- 2 kg
- Colour
- White
Cudy

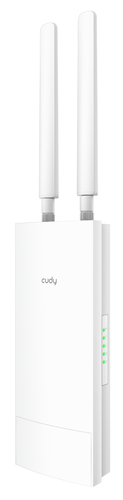

BE3600 High Power Indoor/Outdoor Wi-Fi 7 Access Point, AP3600 Outdoor 1.0
