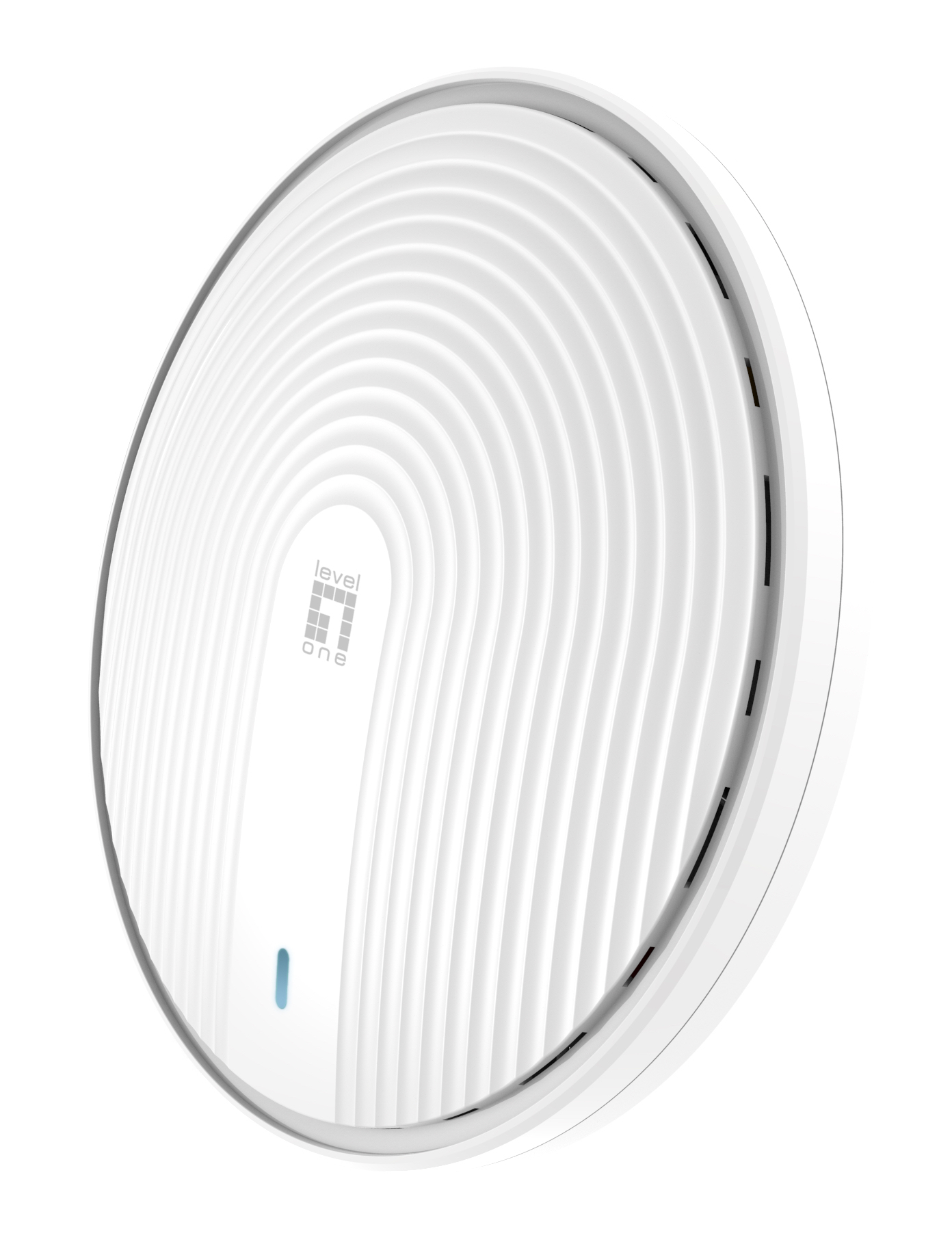

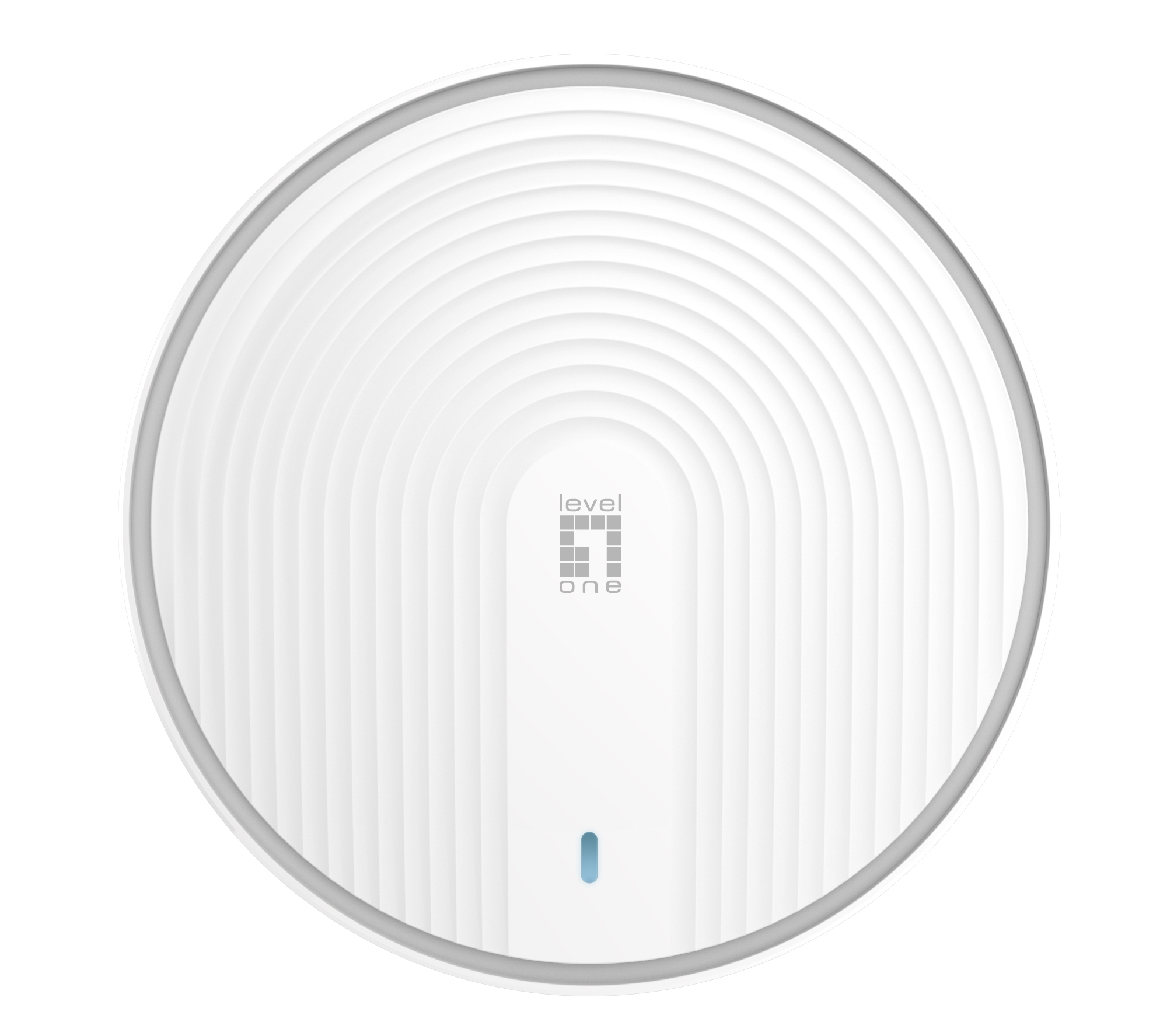

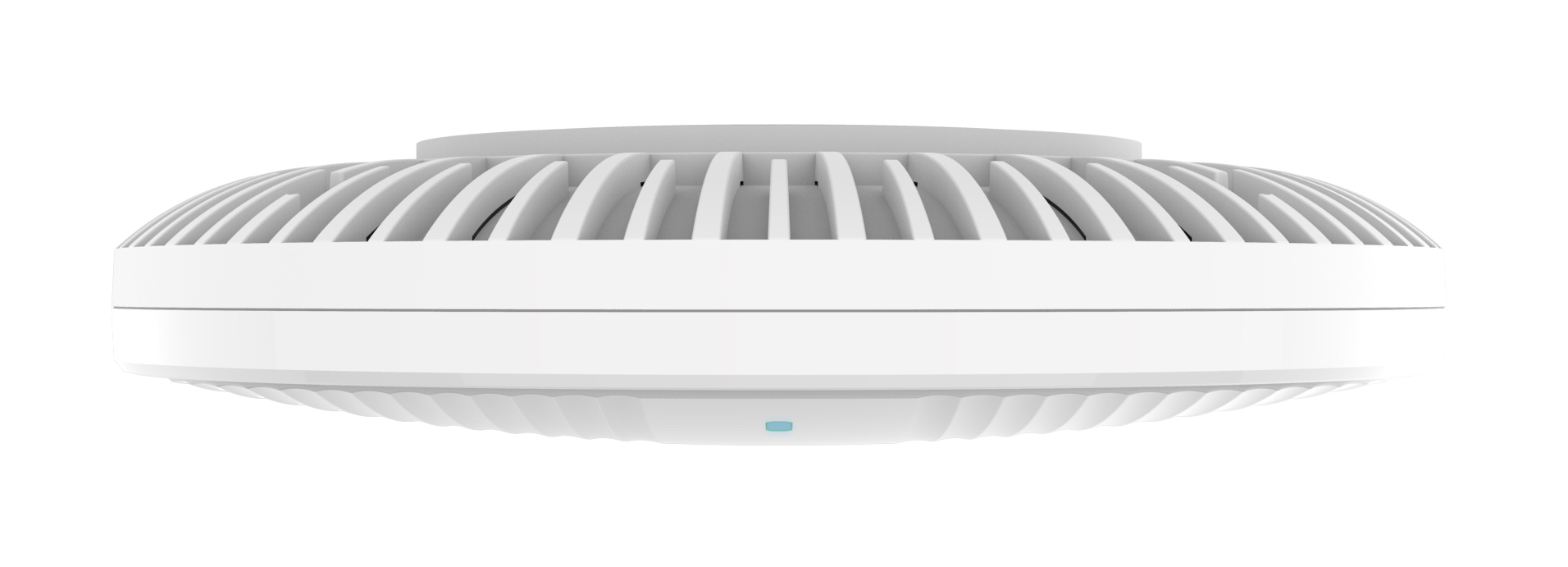

AX1800 Dual Band Wi-Fi6 PoE Wireless Access Point
Model WAP-8131EAN 846359056943
57 specifications
- Memory512 MB
- Speed1800 Mbit/s
- Weight418.5 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsAES, WPA, WPA2, WPA3
Overview
- Memory
- 512 MB
- Speed
- 1800 Mbit/s
- Weight
- 418.5 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- AES, WPA, WPA2, WPA3
- Brand
- LevelOne
- Category
- Wireless Access Point
- Model
- WAP-8131
- Part number
- WAP-8131
- EAN / UPC
- 846359056943, 4015867227879
- Also known as
- LevelOne AX1800 Dual Band Wi-Fi6 PoE Wireless Access Point
Specifications
57 specifications in 16 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Frequency band | 2.412 - 2.484, 5.18G -5.825 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Channels quantity | 165 channels |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Operating modes | Gateway, Repeater, AP |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, WPA, WPA2, WPA3 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 14 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Status |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
Performance
| Specification | Value |
|---|---|
| Chipset | Qualcomm IPQ6000 |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 10 pc(s) |
| Pallet net height | 164.4 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Depth | 186 mm |
| Height | 42.5 mm |
| Weight | 418.5 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 243 mm |
| Package depth | 235 mm |
| Package height | 76 mm |
| Package weight | 750 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 500 mm |
| Master (outer) case gross weight | 16 kg |
| Products per master (outer) case | 20 pc(s) |
