LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

Model WAP-8123EAN 846359003428

63 specifications

Speed1200 Mbit/s
Weight520 g
ColourWhite
2.4 GHzYes
Service Set Identifier (SSID) featuresSSID broadcast on/off
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Speed: 1200 Mbit/s
Weight: 520 g
Colour: White
2.4 GHz: Yes
Service Set Identifier (SSID) features: SSID broadcast on/off
Ethernet LAN (RJ-45) ports: 1

Brand: LevelOne
Category: Wireless Access Point
Model: WAP-8123
Part number: WAP-8123
EAN / UPC: 846359003428, 4015867206652, 4015867229538
Also known as: LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

Specifications

63 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 ~ 2.4835, 5.15 ~ 5.35, 5.46 ~ 5.72, 5.725~ 5.825 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Number of users	128 user(s)
Automatic channel selection	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Modulation	16-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)	Yes
Virtual LAN features	Tagged VLAN
Operating modes	Access Point (AP),Gateway,Repeater,WISP
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit AES, 128-bit WEP, TKIP, WPA, WPA2, WPA2-PSK
Service Set Identifier (SSID) features	SSID broadcast on/off
Number of SSID supported	8

Management features

Specification	Value
Web-based management	Yes
Switch type	Managed
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value

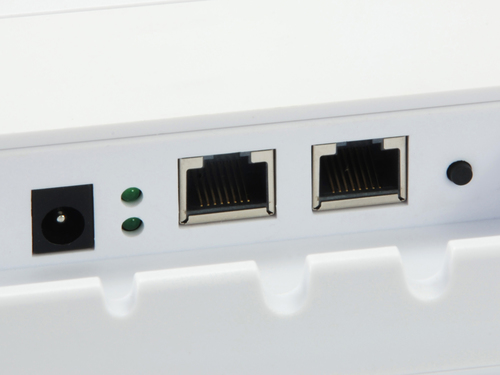

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power consumption (typical)	30 W

Design

Specification	Value
Placement	Ceiling
Product colour	White
Reset button	Yes

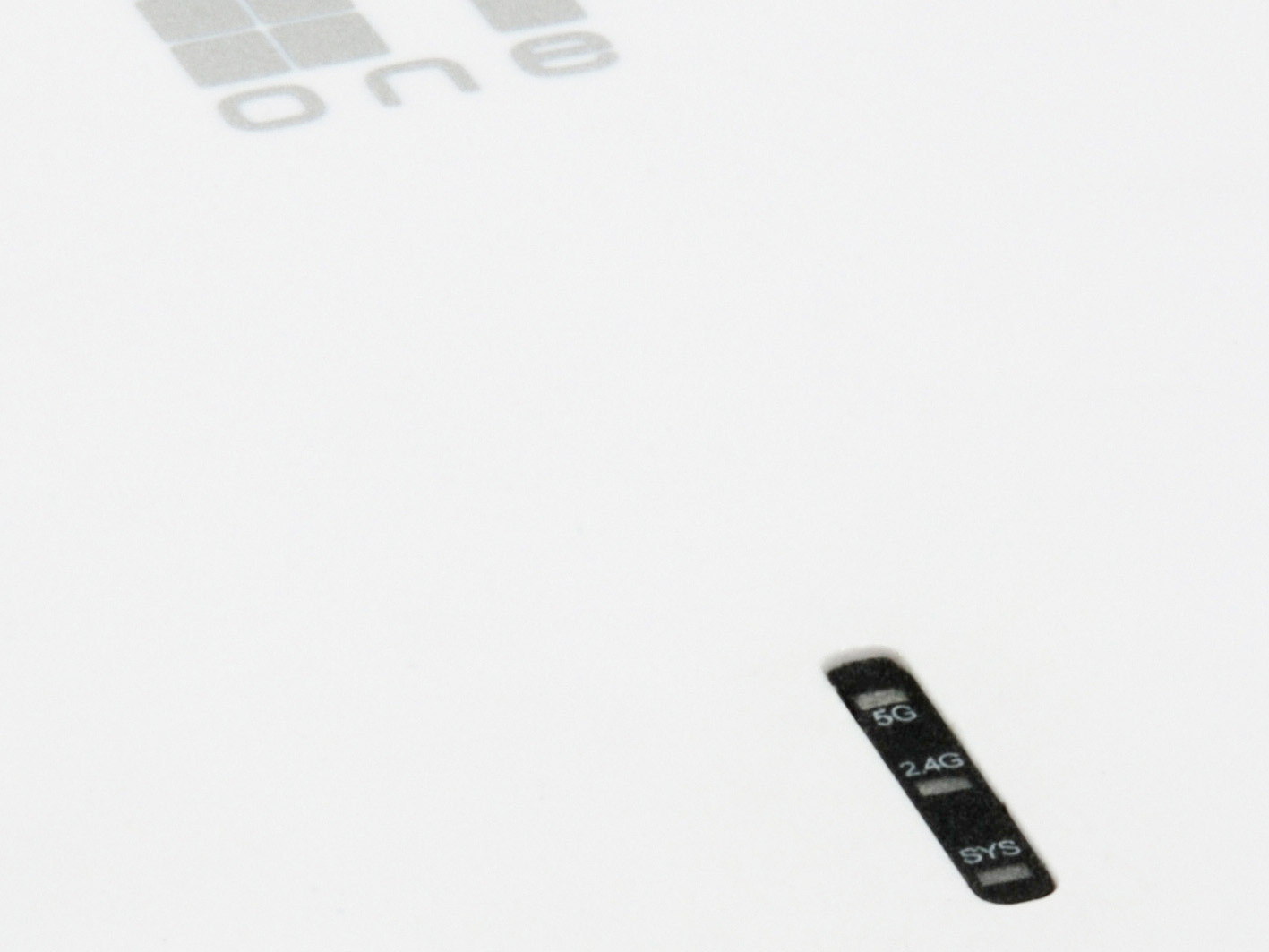

LED indicators	Power, Status
Internal	No

Antenna

Specification	Value
Antenna features	Integrated antenna
Antennas quantity	4
Antenna gain level (max)	5 dBi

Certificates

Specification	Value
Certification	CE, FCC

Weight & dimensions

Specification	Value
Width	198 mm
Depth	28 mm
Height	198 mm
Weight	520 g

Packaging data

Specification	Value
CD manual	Yes
CD quick installation guide	Yes
Package width	235 mm
Package depth	81 mm
Package height	243 mm
Package weight	830 g
Package type	Box

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Country of origin	China
Master (outer) case width	435 mm
Master (outer) case length	491 mm
Master (outer) case height	515 mm
Master (outer) case gross weight	18 kg
Products per master (outer) case	20 pc(s)
