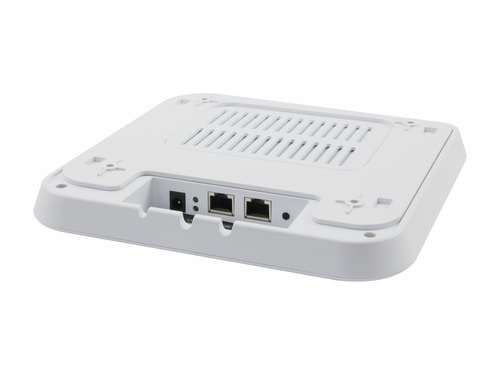

LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

Model WAP-8122EAN 4015867199206

50 specifications

Speed1000 Mbit/s
Weight520 g
ColourWhite
2.4 GHzYes
Service Set Identifier (SSID) featuresSSID broadcast on/off
Ethernet LAN (RJ-45) ports2

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 520 g
Colour: White
2.4 GHz: Yes
Service Set Identifier (SSID) features: SSID broadcast on/off
Ethernet LAN (RJ-45) ports: 2

Brand: LevelOne
Category: Wireless Access Point
Model: WAP-8122
Part number: WAP-8122
EAN / UPC: 4015867199206
Also known as: LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

Specifications

50 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 2.4835, 5.15 - 5.35, 5.46 - 5.72, 5.725 - 5.825 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Number of users	100 user(s)
Channels quantity	165 channels
Automatic channel selection	Yes
Spread spectrum method	DSSS, OFDM
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)	Yes
Operating modes	Access Point (AP),Gateway,Repeater,WISP
Flow control support	Yes
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, AES, TKIP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
Service Set Identifier (SSID) features	SSID broadcast on/off
Number of SSID supported	8

Management features

Specification	Value
Web-based management	Yes
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	48 V
Power consumption (typical)	17 W

Design

Specification	Value
Product colour	White
Reset button	Yes
LED indicators	Power, Status
Internal	No

Antenna

Specification	Value
Antenna features	Integrated antenna
Antennas quantity	4
Antenna gain level (max)	5 dBi

Certificates

Specification	Value
Certification	CE, FCC

Weight & dimensions

Specification	Value
Width	198 mm
Depth	28 mm
Height	198 mm
Weight	520 g

Packaging data

Specification	Value
Package width	235 mm
Package depth	81 mm
Package height	243 mm
Package weight	650 g

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
