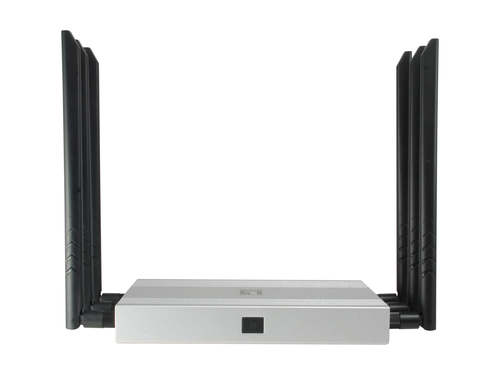

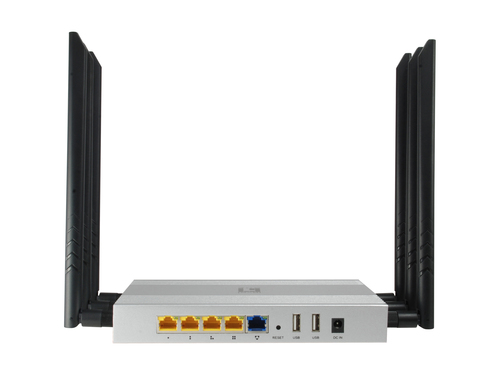

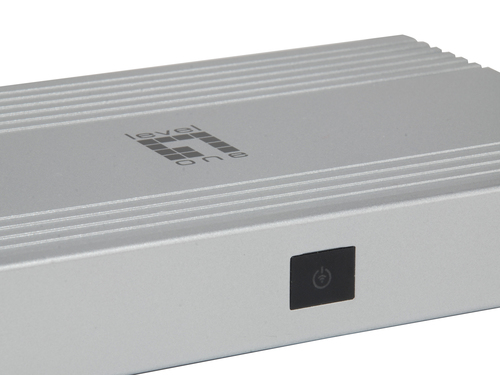

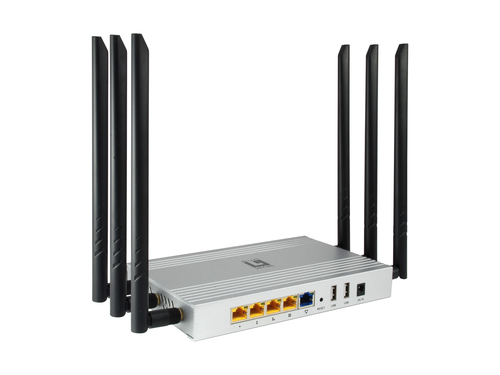

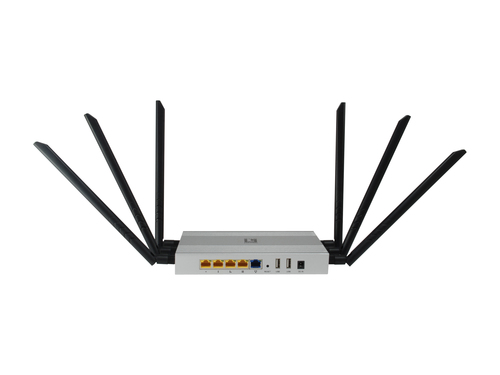

LevelOne AC1200 Dual Band Wireless Access Point, Desktop, Controller Managed

LevelOne AC1200 Dual Band Wireless Access Point, Desktop, Controller Managed

Model WAP-8021EAN 4015867200605

56 specifications

Speed1200 Mbit/s
Weight660 g
ColourSilver
2.4 GHzYes
Service Set Identifier (SSID) featuresSSID broadcast on/off
Ethernet LAN (RJ-45) ports5

See all specifications

Overview

Speed: 1200 Mbit/s
Weight: 660 g
Colour: Silver
2.4 GHz: Yes
Service Set Identifier (SSID) features: SSID broadcast on/off
Ethernet LAN (RJ-45) ports: 5

Brand: LevelOne
Category: Wireless Access Point
Model: WAP-8021
Part number: WAP-8021
EAN / UPC: 4015867200605
Also known as: LevelOne AC1200 Dual Band Wireless Access Point, Desktop, Controller Managed

Specifications

56 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 2.4835, 5.15 - 5.35, 5.46 - 5.72, 5.725 - 5.825 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Number of users	100 user(s)
Channels quantity	165 channels
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)	Yes
Operating modes	Access Point (AP),Gateway,Repeater,WISP
Flow control support	Yes
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features	SSID broadcast on/off
Number of SSID supported	4

Management features

Specification	Value
Web-based management	Yes
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value

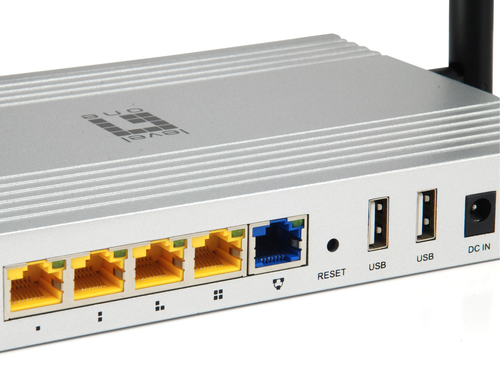

Ethernet LAN (RJ-45) ports	5
USB 2.0 ports quantity	2
WAN connection	Ethernet (RJ-45)

Power

Specification	Value
AC input voltage	12 V
Input current	1.5 A
Power consumption (typical)	17 W

Design

Specification	Value
Placement	Table
Product colour	Silver
Reset button	Yes
Internal	No

Antenna

Specification	Value

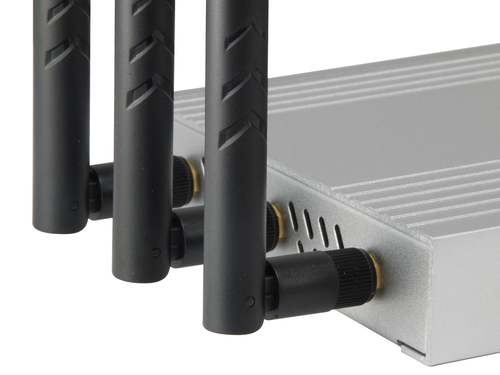

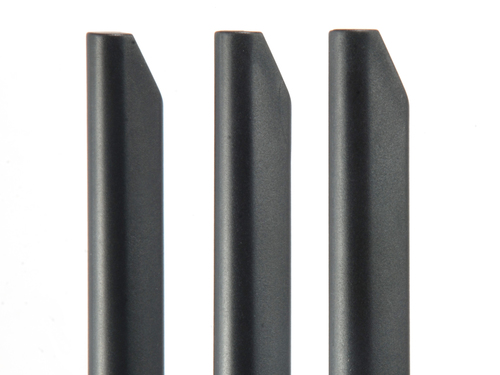

Antennas quantity	6
Antenna gain level (max)	6 dBi

Certificates

Specification	Value
Certification	CE

Weight & dimensions

Specification	Value
Width	128 mm
Depth	198 mm
Height	28 mm
Weight	660 g

Packaging data

Specification	Value
CD manual	Yes
Package width	220 mm
Package depth	285 mm
Package height	65 mm
Package weight	1.32 kg
Package type	Box

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	LAN (RJ-45)
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Country of origin	China
Master (outer) case width	300 mm
Master (outer) case length	685 mm
Master (outer) case height	245 mm
Master (outer) case gross weight	14 kg
Products per master (outer) case	10 pc(s)
