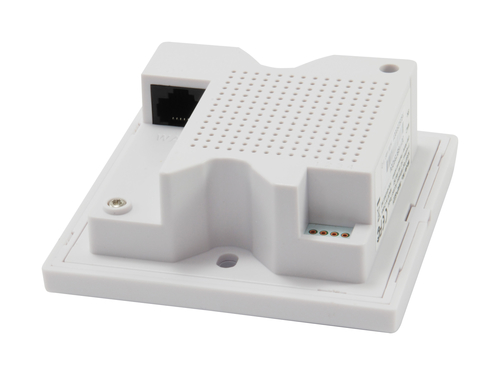

LevelOne N300 PoE Wireless Access Point, In-Wall Mount, Controller Managed

LevelOne N300 PoE Wireless Access Point, In-Wall Mount, Controller Managed

Model WAP-6221EAN 4015867199183

52 specifications

Speed300 Mbit/s
Weight270 g
ColourWhite
2.4 GHzYes
Service Set Identifier (SSID) featuresSSID broadcast on/off
Ethernet LAN (RJ-45) ports2

See all specifications

Overview

Speed: 300 Mbit/s
Weight: 270 g
Colour: White
2.4 GHz: Yes
Service Set Identifier (SSID) features: SSID broadcast on/off
Ethernet LAN (RJ-45) ports: 2

Brand: LevelOne
Category: Wireless Access Point
Model: WAP-6221
Part number: WAP-6221
EAN / UPC: 4015867199183
Also known as: LevelOne N300 PoE Wireless Access Point, In-Wall Mount, Controller Managed

Specifications

52 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	No
Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Number of users	36 user(s)
Channels quantity	13 channels
Wi-Fi Multimedia (WMM)/(WME)	Yes
Operating modes	Access Point (AP),Gateway,Repeater
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
Service Set Identifier (SSID) features	SSID broadcast on/off
Number of SSID supported	4

Management features

Specification	Value
Web-based management	Yes
Syslog	Yes
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
WAN connection	Ethernet (RJ-45)

Power

Specification	Value
Power consumption (typical)	8 W

Design

Specification	Value
Placement	In-wall
Product colour	White
On/off switch	Yes
Reset button	Yes
LED indicators	Power, System, WLAN
Internal	No

Antenna

Specification	Value
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3 dBi

Certificates

Specification	Value
Certification	CE

Weight & dimensions

Specification	Value
Width	86 mm
Depth	35 mm
Height	86 mm
Weight	270 g

Packaging data

Specification	Value
Package width	102 mm
Package depth	46 mm
Package height	102 mm
Package weight	410 g
Package type	Box

Packaging content

Specification	Value
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 95%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Country of origin	China
Master (outer) case width	305 mm
Master (outer) case length	400 mm
Master (outer) case height	585 mm
Master (outer) case gross weight	30.5 kg
Products per master (outer) case	72 pc(s)
