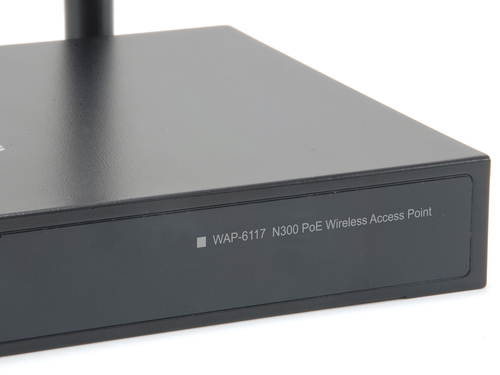

LevelOne N300 PoE Wireless Access Point, Desktop, Controller Managed

LevelOne N300 PoE Wireless Access Point, Desktop, Controller Managed

Model WAP-6117EAN 4015867203996

57 specifications

Speed300 Mbit/s
Weight700 g
ColourBlack
2.4 GHzYes
Service Set Identifier (SSID) featuresSSID broadcast on/off
Ethernet LAN (RJ-45) ports4

See all specifications

Overview

Speed: 300 Mbit/s
Weight: 700 g
Colour: Black
2.4 GHz: Yes
Service Set Identifier (SSID) features: SSID broadcast on/off
Ethernet LAN (RJ-45) ports: 4

Brand: LevelOne
Category: Wireless Access Point
Model: WAP-6117
Part number: WAP-6117
EAN / UPC: 4015867203996
Also known as: LevelOne N300 PoE Wireless Access Point, Desktop, Controller Managed

Specifications

57 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	No
Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Number of users	40 user(s)
Channels quantity	13 channels
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)	Yes
Operating modes	Access Point (AP),Gateway,Repeater,WISP
Quality of Service (QoS) support	Yes
Receiver sensitivity	802.11n: -68 dBm 802.11g:6Mbps: (-90) dBm 802.11g:54Mbps: (-72) dBm 802.11b:1Mbps: (-95) dBm 802.11b:11Mbps: (-90) dBm

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2
Service Set Identifier (SSID) features	SSID broadcast on/off
Number of SSID supported	4

Management features

Specification	Value
Web-based management	Yes
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	1
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	12 V
Input current	1.5 A
Power consumption (typical)	12 W

Design

Specification	Value
Placement	Table
Product colour	Black
WPS push button	Yes
LED indicators	Power, WLAN
Internal	No

Antenna

Specification	Value
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	5 dBi

Certificates

Specification	Value
Certification	CE

Weight & dimensions

Specification	Value
Width	135 mm
Depth	220 mm
Height	30 mm
Weight	700 g

Packaging data

Specification	Value
CD manual	Yes
CD quick installation guide	Yes
Package width	217 mm
Package depth	260 mm
Package height	50 mm
Package weight	1.1 kg

Packaging content

Specification	Value
Cables included	LAN (RJ-45)

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Country of origin	China
Master (outer) case width	260 mm
Master (outer) case length	655 mm
Master (outer) case height	233 mm
Master (outer) case gross weight	23 kg
Products per master (outer) case	20 pc(s)
