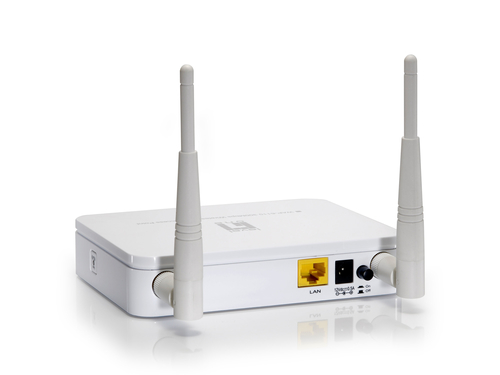

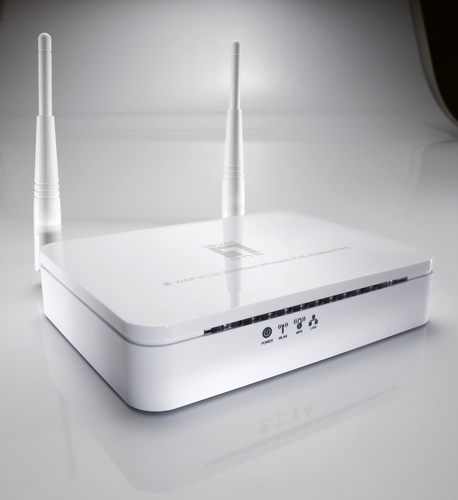

LevelOne N300 PoE Wireless Access Point, Desktop
Model WAP-6110EAN 846359031926
43 specifications
- Speed300 Mbit/s
- Weight228 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementWall
Overview
- Speed
- 300 Mbit/s
- Weight
- 228 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Wall
- Brand
- LevelOne
- Category
- Wireless Access Point
- Model
- WAP-6110
- Part number
- WAP-6110
- EAN / UPC
- 846359031926, 4015867185865, 5050914833503
- Also known as
- LevelOne N300 PoE Wireless Access Point, Desktop
Specifications
43 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.412 - 2.472, 2.422 - 2.462 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Channels quantity | 13 channels |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, AES, TKIP, WEP, WPA, WPA2 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 0.5 A |
| Power consumption (typical) | 3 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| WPS push button | Yes |
| LED indicators | LAN, Power, WLAN, WPS |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 107 mm |
| Height | 28 mm |
| Weight | 228 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 145 mm |
| Package height | 107 mm |
| Package weight | 83 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
