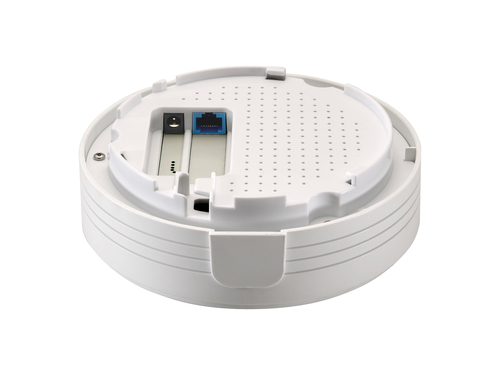

LevelOne Managed Ceiling Mount Gigabit Wireless Access Point, 300Mbps 802.11b/g/n, 802.3af PoE, Built-in Antenna

LevelOne Managed Ceiling Mount Gigabit Wireless Access Point, 300Mbps 802.11b/g/n, 802.3af PoE, Built-in Antenna

Model WAP-6101EAN 4015867184530

40 specifications
  • Speed300 Mbit/s
  • Weight300 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
  • PlacementCeiling
See all specifications

Overview

Speed
300 Mbit/s
Weight
300 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Placement
Ceiling
Brand
LevelOne
Model
WAP-6101
Part number
WAP-6101
EAN / UPC
4015867184530, 5050914834050
Also known as
LevelOne Managed Ceiling Mount Gigabit Wireless Access Point, 300Mbps 802.11b/g/n, 802.3af PoE, Built-in Antenna

Specifications

40 specifications in 12 groups

Features

2.4 GHzYes
5 GHzNo
Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 2.4835 GHz
Networking standardsIEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Number of users128 user(s)
Channels quantity13 channels

Security

Security algorithms64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA2-AES, WPA2-PSK, WPA2-TKIP

Management features

Web-based managementYes
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input voltage12 V
Input current1 A

Design

PlacementCeiling
Product colourWhite
Reset buttonYes
LED indicatorsPoE, Status, WLAN
InternalNo

Antenna

Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)3 dBi

Certificates

CertificationCE, FCC

Weight & dimensions

Width150 mm
Depth150 mm
Height57.5 mm
Weight300 g

Packaging data

Package width275 mm
Package depth220 mm
Package height65 mm

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)0 - 40%
Operating temperature (T-T)-10 - 70 °C
Storage temperature (T-T)10 - 90 °C
Storage relative humidity (H-H)0 - 95%
