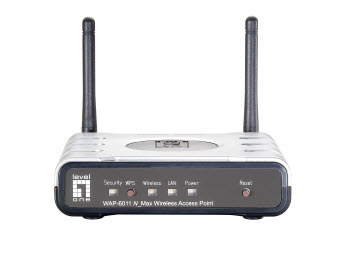

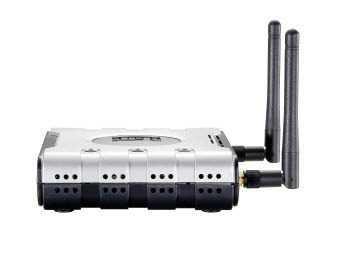

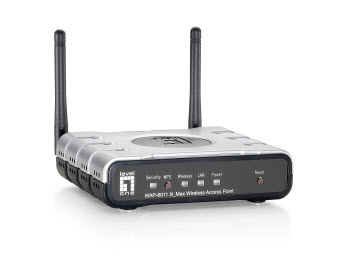

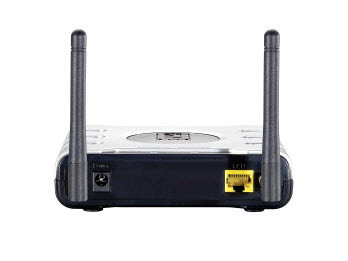

LevelOne WAP-6011 wireless access point 300 Mbit/s

LevelOne WAP-6011 wireless access point 300 Mbit/s

Model WAP-6011EAN 846359000694

24 specifications

Speed300 Mbit/s
2.4 GHzYes
Media access protocolCSMA/CA
Ethernet LAN (RJ-45) ports1
Power requirements12V, 1A
Antenna gain level (max)1.8 dBi

See all specifications

Overview

Speed: 300 Mbit/s
2.4 GHz: Yes
Media access protocol: CSMA/CA
Ethernet LAN (RJ-45) ports: 1
Power requirements: 12V, 1A
Antenna gain level (max): 1.8 dBi

Brand: LevelOne
Category: Wireless Access Point
Model: WAP-6011
Part number: WAP-6011
EAN / UPC: 846359000694, 4015867156919
Also known as: LevelOne WAP-6011 wireless access point 300 Mbit/s

Specifications

24 specifications in 9 groups

Features

Specification	Value
2.4 GHz	Yes
Maximum data transfer rate	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Channels quantity	13 channels
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
MAC address filtering	Yes

Protocols

Specification	Value
Media access protocol	CSMA/CA

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power requirements	12V, 1A

Design

Specification	Value
LED indicators	Yes
Internal	No

Antenna

Specification	Value
Antenna gain level (max)	1.8 dBi

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Indoor range	200-280m
Outdoor range	450-600m
Compliance industry standards	IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.3, IEEE 802.3u
Maximum operating distance	600 m
Networking features	Fast Ethernet
Wireless technology	802.11b/g
