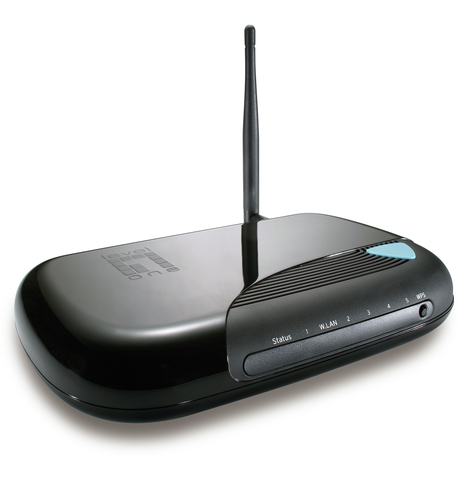

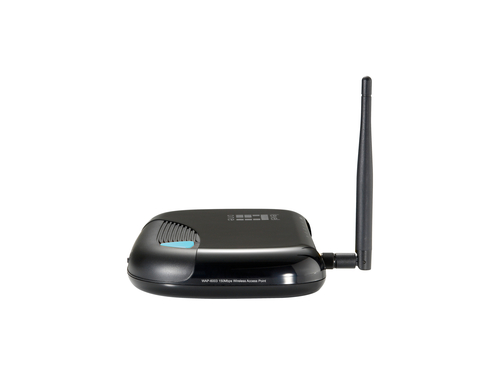

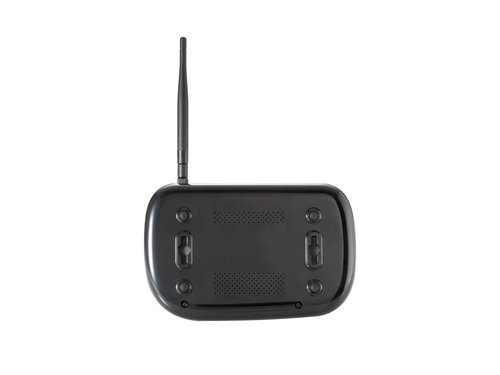

LevelOne N150 Wireless Access Point
Model WAP-6003EAN 846359021958
37 specifications
- Speed150 Mbit/s
- Weight230 g
- ColourBlack
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports5
- Input current1 A
Overview
- Speed
- 150 Mbit/s
- Weight
- 230 g
- Colour
- Black
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 5
- Input current
- 1 A
- Brand
- LevelOne
- Category
- Wireless Access Point
- Model
- WAP-6003
- Part number
- WAP-6003
- EAN / UPC
- 846359021958, 4015867182376
- Also known as
- LevelOne N150 Wireless Access Point
Specifications
37 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 150 Mbit/s |
| Wi-Fi data rate (max) | 150 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Channels quantity | 2 channels |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, AES, SNMP, SSID, TKIP, WPA, WPA-PSK, WPS |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

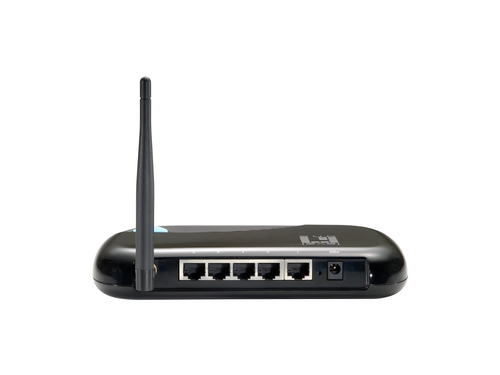

| Ethernet LAN (RJ-45) ports | 5 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input current | 1 A |
| Output voltage | 5 V |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Reset button | Yes |
| WPS push button | Yes |

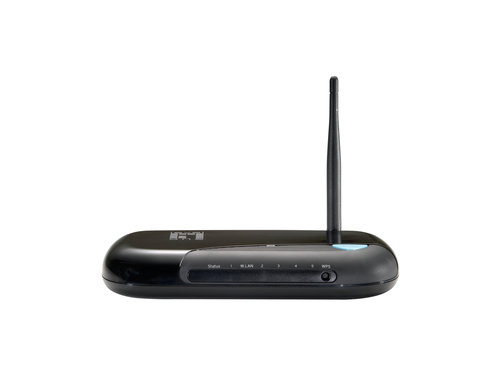

| LED indicators | LAN, Status, WAN |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna features | Dipole antenna, Detachable antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) | 2 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 119 mm |
| Height | 32 mm |
| Weight | 230 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 94.5 mm |
| Package height | 80 mm |
| Package weight | 400 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
