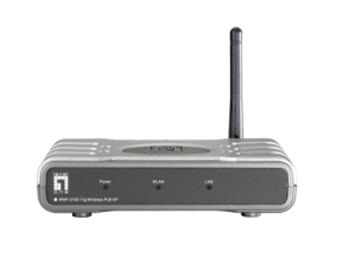

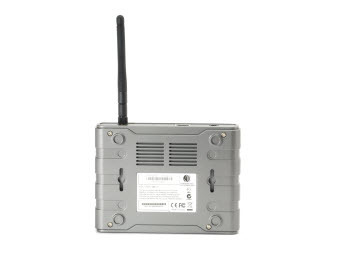

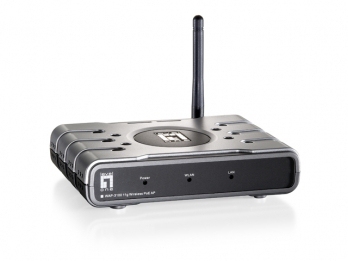

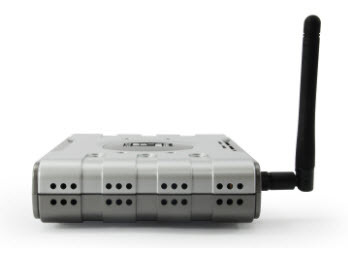

LevelOne WAP-3100 wireless access point 54 Mbit/s Power over Ethernet (PoE)
Model WAP-3100EAN 4015867142332
37 specifications
- Speed54 Mbit/s
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- LED indicatorsLAN, Power, WLAN
- Antenna gain level (max)2 dBi
- Compatible operating systemsWindows 2000/XP/Vista
Overview
- Speed
- 54 Mbit/s
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- LED indicators
- LAN, Power, WLAN
- Antenna gain level (max)
- 2 dBi
- Compatible operating systems
- Windows 2000/XP/Vista
- Brand
- LevelOne
- Category
- Wireless Access Point
- Model
- WAP-3100
- Part number
- WAP-3100
- EAN / UPC
- 4015867142332
- Also known as
- LevelOne WAP-3100 wireless access point 54 Mbit/s Power over Ethernet (PoE)
Specifications
37 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Cabling technology | 10/100Base-T(X) |
| Channels quantity | 13 channels |
| Modulation | BPSK, CCK, OFDM, QPSK |
| Receiver sensitivity | 802.11g: 10% PER, -68 dBm @ 54Mbps 802.11b: 8% PER, -81 dBm @ 11Mbps |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| Media access protocol | CSMA/CA |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |

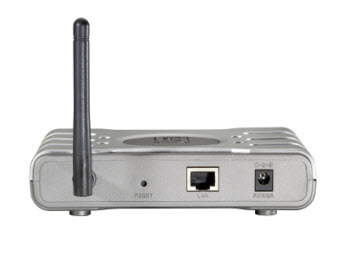

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power requirements | 7.5V, 1A |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Power, WLAN |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 2 dBi |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000/XP/Vista |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 113 x 146 x 32 mm |
Packaging content
| Specification | Value |
|---|---|

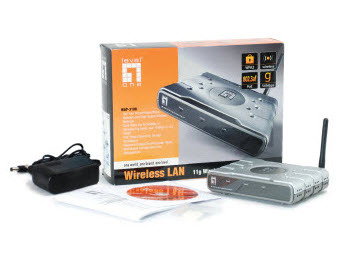

| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 11 |
| Indoor range | 50 |
| Outdoor range | 100 |
| Compliance industry standards | IEEE 802.11g, IEEE 802.11b, 802.3af |
| DSL specification | ADSL |
| Networking features | Fast Ethernet |
| Power LED | Yes |
| Transmit power range | 15 - 18 dBmW |
| Wireless technology | 802.11b/g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
