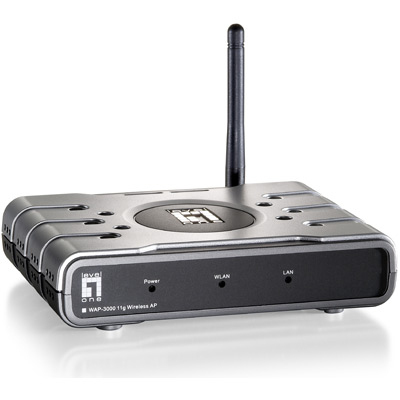

WAP-3000 54Mbps Wireless AP
Model WAP-3000 54Mbps Wireless APPart no. WAP-3000EAN 4015867142325
27 specifications
- Speed54 Mbit/s
- 2.4 GHzYes
- Security algorithmsSSID, WPA-PSK, WPA2, WPA2-PSK
- Media access protocolCSMA/CA (ACK)
- Ethernet LAN (RJ-45) ports1
- Power requirementsDC 7.5V, 1A
Overview
- Speed
- 54 Mbit/s
- 2.4 GHz
- Yes
- Security algorithms
- SSID, WPA-PSK, WPA2, WPA2-PSK
- Media access protocol
- CSMA/CA (ACK)
- Ethernet LAN (RJ-45) ports
- 1
- Power requirements
- DC 7.5V, 1A
- Brand
- LevelOne
- Category
- Wireless Access Point
- Model
- WAP-3000 54Mbps Wireless AP
- Part number
- WAP-3000
- EAN / UPC
- 4015867142325
- Also known as
- LevelOne WAP-3000 54Mbps Wireless AP 54 Mbit/s
Specifications
27 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Channels quantity | 13 channels |
| Modulation | BPSK, QPSK |
| Receiver sensitivity | 802.11g: 10% PER, -68 dBm @ 54Mbps 802.11b: 8% PER, -81 dBm @ 11Mbps |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSID, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Media access protocol | CSMA/CA (ACK) |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power requirements | DC 7.5V, 1A |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Power, WLAN |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 2 dBi |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000/XP/Vista |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 113 x 146 x 32 mm |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 54/11 Mbps |
| Indoor range | 50 m |
| Outdoor range | 100 m |
| Compliance industry standards | IEEE 802.11g, IEEE 802.11b |
| Networking features | Ethernet, Fast Ethernet |
| Wireless technology | Wi-Fi |
| Non-operating relative humidity (non-condensing) | 10 - 95% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
