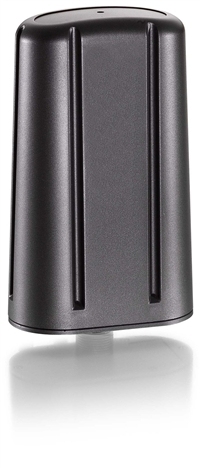

LevelOne WAP-1001 54Mbps Outdoor AccessPoint

WAP-1001 54Mbps Outdoor AccessPoint

Model WAP-1001 54Mbps Outdoor AccessPointPart no. WAP-1001EAN 4015867128213

24 specifications

Speed54 Mbit/s
Security algorithmsWPA, WPA-PSK
DHCP clientYes
Ethernet LAN (RJ-45) ports1
AC input voltage48 V
Antenna gain level (max)12 dBi

See all specifications

Overview

Speed: 54 Mbit/s
Security algorithms: WPA, WPA-PSK
DHCP client: Yes
Ethernet LAN (RJ-45) ports: 1
AC input voltage: 48 V
Antenna gain level (max): 12 dBi

Brand: LevelOne
Category: Wireless Access Point
Model: WAP-1001 54Mbps Outdoor AccessPoint
Part number: WAP-1001
EAN / UPC: 4015867128213
Also known as: LevelOne WAP-1001 54Mbps Outdoor AccessPoint 54 Mbit/s

Specifications

24 specifications in 11 groups

Features

Specification	Value
Maximum data transfer rate	54 Mbit/s
Frequency band	2.412 - 2.472 GHz
Channels quantity	13 channels
Modulation	DQPSK
Receiver sensitivity	-88dBm@11Mbps, PER<8% -74dBm@54Mbps, PER<10%

Security

Specification	Value
Security algorithms	WPA, WPA-PSK

Protocols

Specification	Value
DHCP client	Yes

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Specification	Value
AC input voltage	48 V
Input current	0.3 A
Power requirements	100-240V, 50-60Hz, 0.25A

Antenna

Specification	Value
Antenna gain level (max)	12 dBi

Certificates

Specification	Value
Certification	FCC, CE

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	320 x 310 x 48 mm

Other features

Specification	Value
Supported data transfer rates	10/100 Mbps
Compatibility	MS IE, Netscape
Compliance industry standards	IEEE802.11b/g, IEEE802.3, IEEE802.3u, IEEE802.3x
Networking features	Ethernet, Fast Ethernet
Transmit power range	802.11b: 18dBm; 802.11g: 14dBm
Wireless technology	Wi-Fi
Non-operating relative humidity (non-condensing)	10 - 90%

Operational conditions

Specification	Value
Storage temperature (T-T)	-25 - 70 °C
